Lanco LTX08 Plastics Dryer 460V 3-Phase 8kW 130C Polycarbonate Injection Molding

Lanco LTX08 Plastics Dryer 460V 3-Phase 8kW 130C Polycarbonate Injection Molding

The Lanco LTX08 is a freestanding industrial desiccant plastics materials dryer manufactured by Lang & Co GmbH of Hanau, Germany. Designed specifically for drying hygroscopic engineering resins such as polycarbonate, ABS, nylon, and PET before injection molding or extrusion, it uses a desiccant wheel or molecular sieve bed system to remove moisture from the process air stream and deliver consistently low dew-point air to the material hopper. This unit carries the full model designation LTX 08.16.12-CD and was manufactured in 1999.

Specifications & What's Included

• Manufacturer: Lang & Co GmbH (Lanco System Technology), D-63452 Hanau, Germany
• Model: LTX08 (full type: LTX 08.16.12-CD)
• Serial Number: 010669
• Year of Manufacture: 1999
• Supply Voltage: 460V (480V sticker also present on cabinet)
• Phase: 3-Phase
• Frequency: 60 Hz
• Total Power: 8 kW
• Full Load Current: 11 A
• Pre-Fuse Rating: 20 A
• Largest Load: 400V / 2-Phase / 6.5A / 4.5 kW
• Control Voltage: 24V DC
• Maximum Drying Temperature: 130°C
• Compressed Air Requirement: 4–6 bar
• Noise Level: 76 dB(A)
• Wiring Diagram: E 100 302 UL
• Certification: CE-99

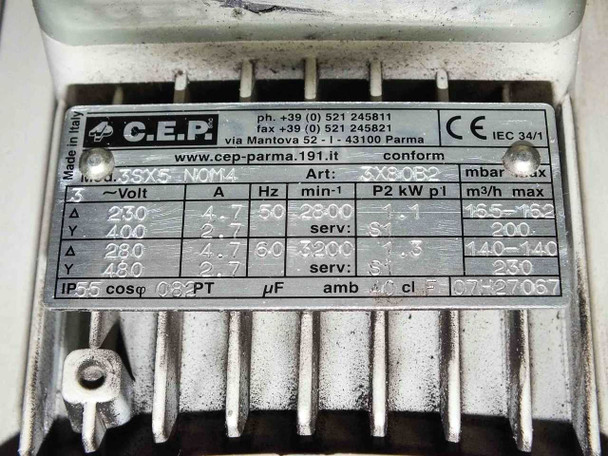

• Drying Blower Motor 1: C.E.P. Model 3SX5-N0M4 (Art. 3X80B2) — 3-phase, 1.3 kW at 3200 RPM (60Hz), IP35, Made in Italy

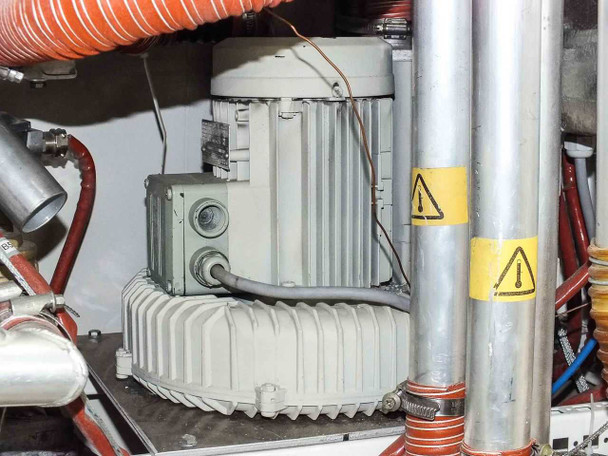

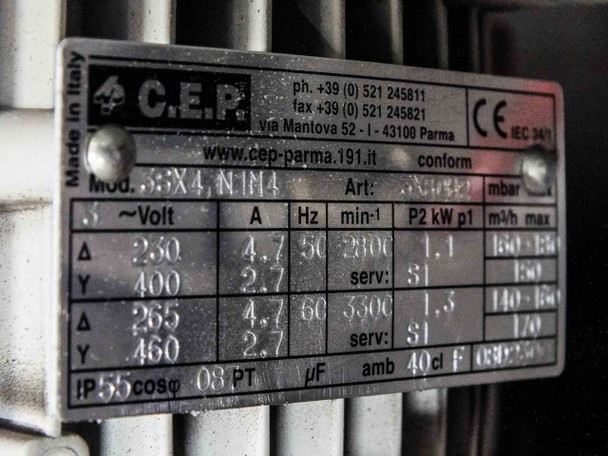

• Drying Blower Motor 2: C.E.P. Model 3SX4-N1M4 — 3-phase, 1.3 kW at 3300 RPM (60Hz), IP55, Made in Italy
• Note on Blower 1 Housing:
  Condition: Used

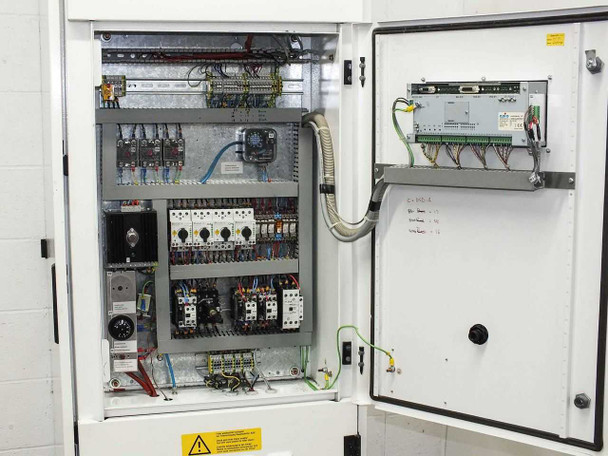

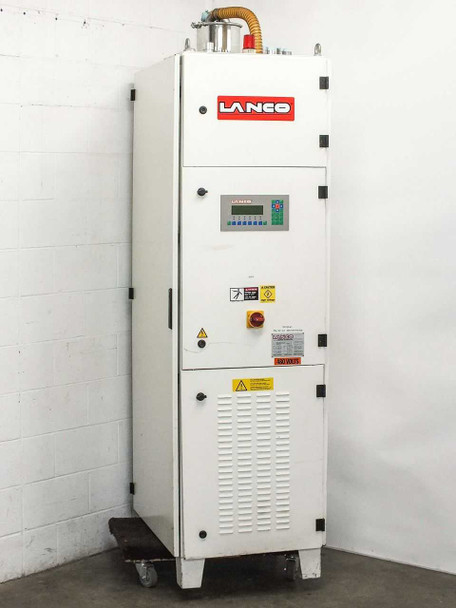

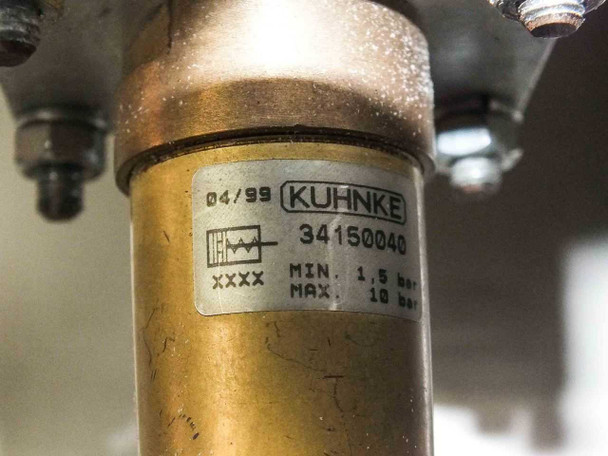

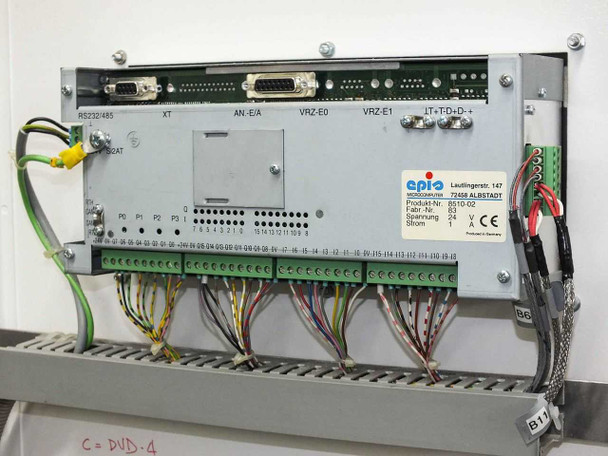

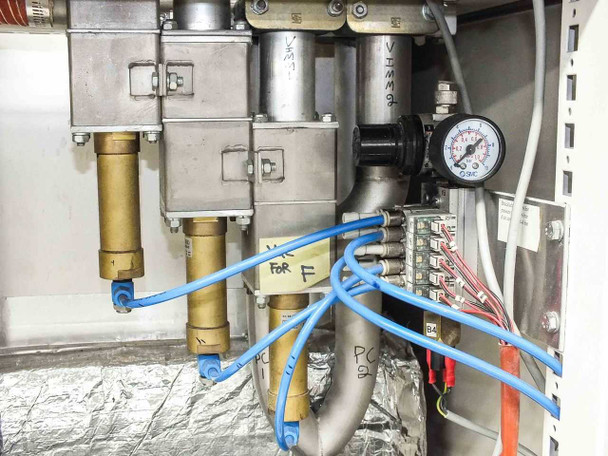

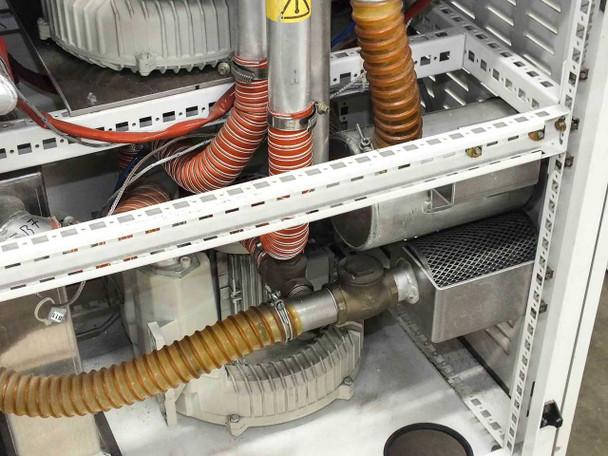

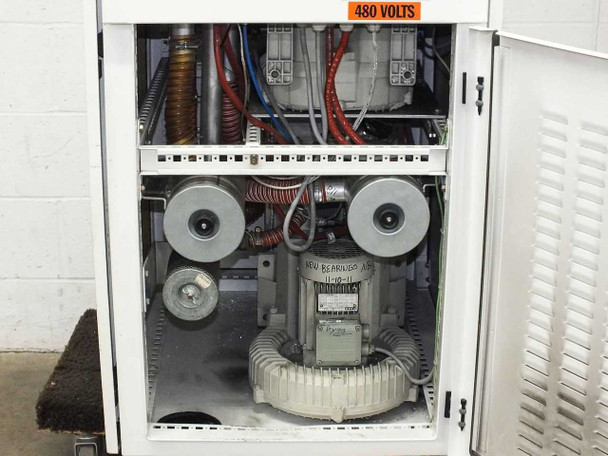

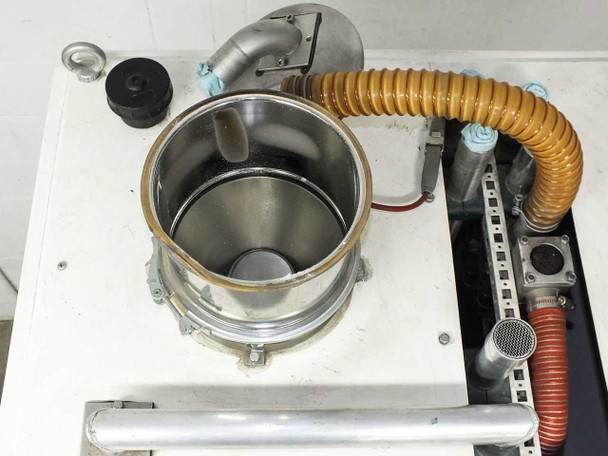

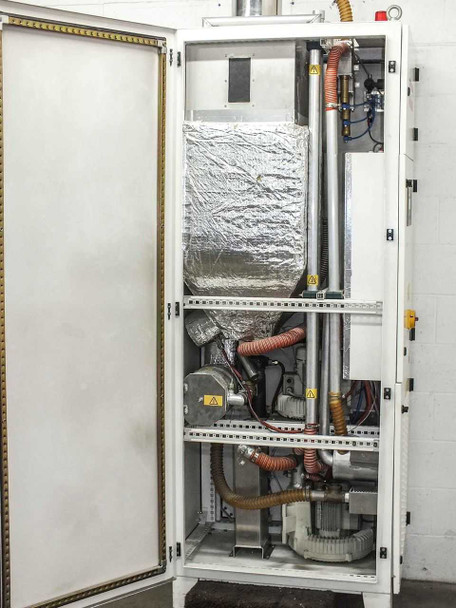

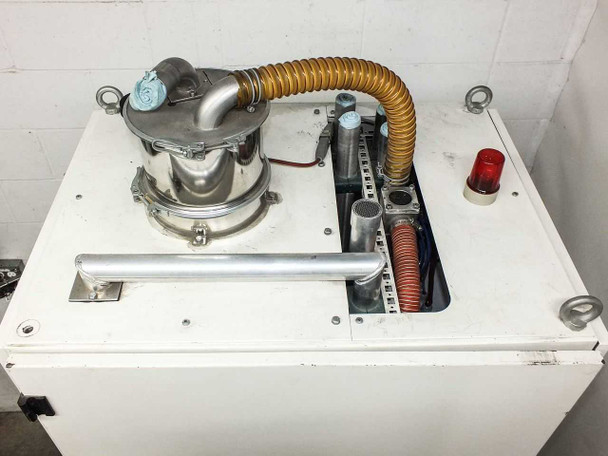

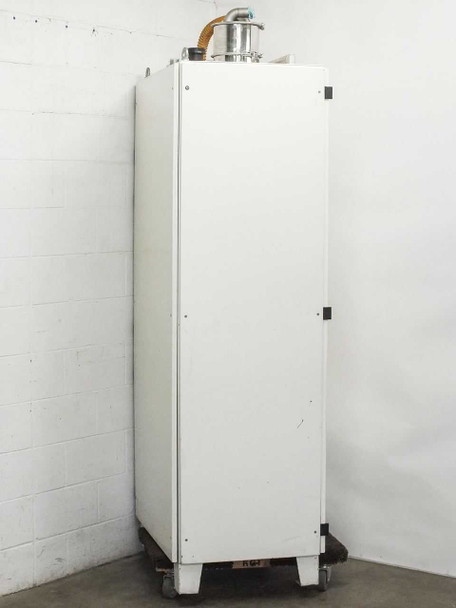

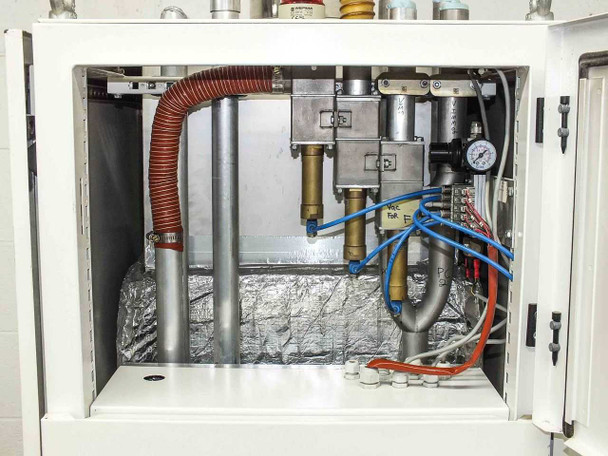

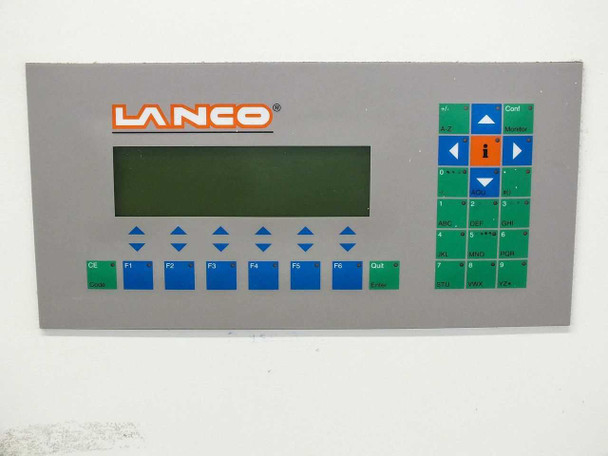

  This Lanco LTX08 Polycarbonate Plastics Materials Dryer has been pulled from a working industrial environment where it was previously in use. The cabinet exterior is in good condition with minor surface wear and scuffing consistent with normal shop use. The front control panel, LCD display, and operator interface appear intact and undamaged. Interior components are all present — including the foil-wrapped desiccant/heat exchanger beds, two C.E.P. ring blower motors (one of which has a note on the housing indicating bearings were replaced on 11-10-11), the pneumatic valve manifold with Kuhnke components, and the epi-o Minicontroller. The hopper and all visible internal hoses and ducting appear intact. The unit has not been powered up or tested at our facility. Please review all 20 photos carefully and contact us with any questions before purchasing.
