Lambda Electronics LNS-P-5-OV Regulated DC Power Supply 5V 350W For Parts

Lambda Electronics LNS-P-5-OV Regulated DC Power Supply 5V 350W For Parts

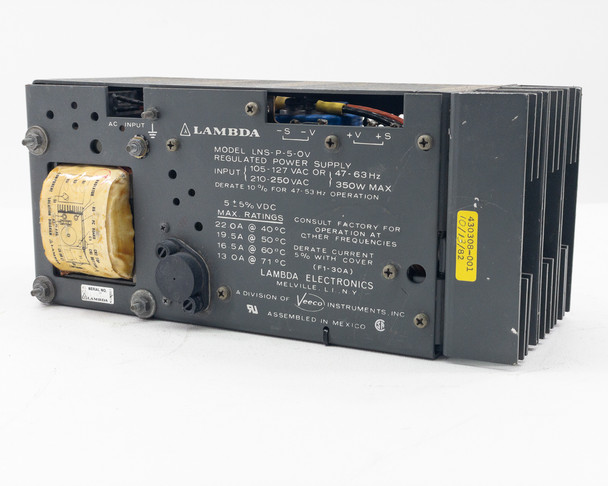

The Lambda Electronics LNS-P-5-OV is an open-frame regulated DC power supply rated at 5 VDC ±5% with a 350W maximum output. It accepts a wide-range AC input — either 105–127 VAC or 210–250 VAC at 47–63 Hz — making it suitable for both North American and international line voltages. This unit does not power on and is being sold AS-IS for parts or repair.

Specifications & What's Included

• Model: Lambda Electronics LNS-P-5-OV
• Output Voltage: 5 VDC ±5%
• Maximum Output Power: 350W
• Input Voltage: 105–127 VAC or 210–250 VAC (switch-selectable)
• Input Frequency: 47–63 Hz (derate 10% for 47–53 Hz operation)
• Output Current (temperature-derated max ratings):
  • 22.0A @ 40°C
  • 19.5A @ 50°C
  • 16.5A @ 60°C
  • 13.0A @ 71°C
• Fuse: F1-30A
• Form Factor: Open frame / chassis mount
• Output terminals: –S, –V, +V, +S (visible on top panel)
• Toroidal transformer (visible, intact)

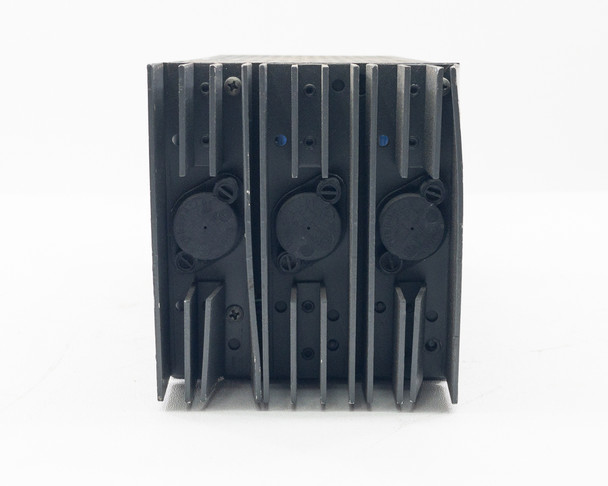

• Large aluminum heatsink with three mounted power transistors/regulators on end panel
• Manufacturer: Lambda Electronics, Melville, LI, NY — a division of Veeco Instruments Inc.

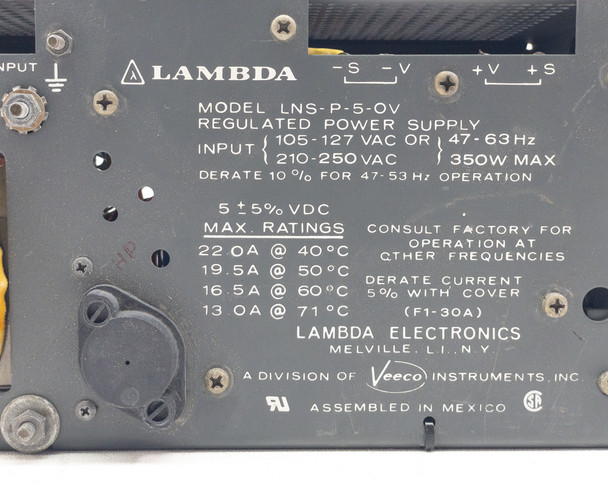

• Assembled in Mexico; UL and CSA listed (markings visible on rating plate)
• Unit only — no cables or accessories included

Applications

Lambda Electronics was a well-regarded manufacturer of linear and switching regulated power supplies from the 1960s through the 1980s, later becoming part of Veeco Instruments and eventually TDK-Lambda. The LNS series were open-frame linear regulated supplies widely used in industrial electronics, laboratory instrumentation, ATE (automatic test equipment) systems, and OEM equipment builds where a stable, regulated 5 VDC rail was needed — particularly for TTL-logic boards and early digital systems. The open-frame chassis design allowed direct integration into larger equipment enclosures. These supplies are still sought after for legacy equipment maintenance and repair, and the toroidal transformer and heatsink components retain value for parts use.
