Lakewood Instruments 200 Hydro Pure Conductivity Meter 120V Adjustable Alarm

(No reviews yet) Write a Review
SKU:
35986
MPN:
200
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Shipping:
Calculated at Checkout
  • Lakewood Instruments Model 200 Hydro Pure Conductivity Meter front panel view showing analog conductivity meter, Range knob, Alarm Minutes dial, Calibrate, Auto/Off/Manual switch, Power and Flow LEDs, and three switched outlets on blue enclosure

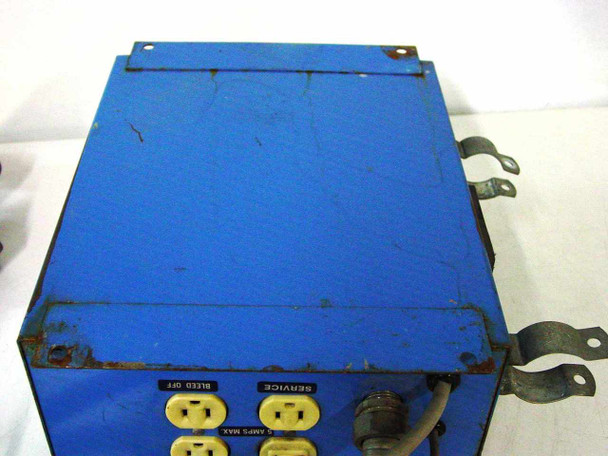

  • Lakewood Instruments Model 200 Hydro Pure Conductivity Meter top and rear view showing blue enclosure with surface rust and wear, three outlets labeled Bleed Off and Service with 5 Amps Max rating, and pipe clamp brackets

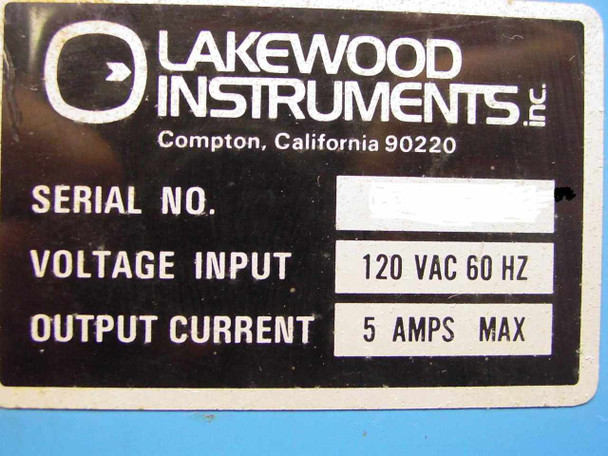

  • Lakewood Instruments Inc. nameplate label showing brand name, Compton California 90220, Voltage Input 120 VAC 60 Hz, Output Current 5 Amps Max
  • Close-up of three switched outlets on Lakewood Instruments 200 panel labeled Chem Pump, Service, and Bleed Off with on/off rocker switch and 5 Amps Max label

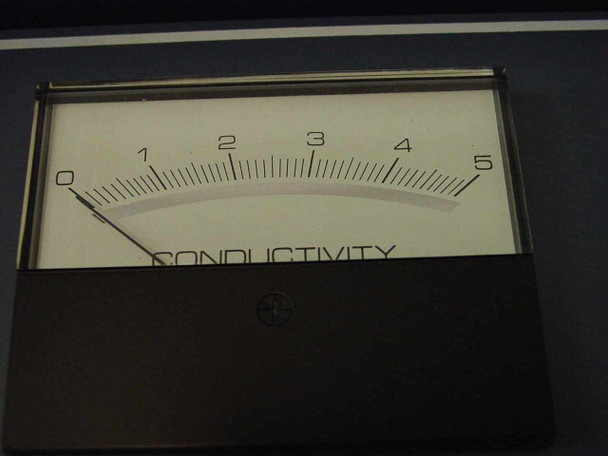

  • Close-up of analog conductivity panel meter face showing scale 0–5 labeled Conductivity

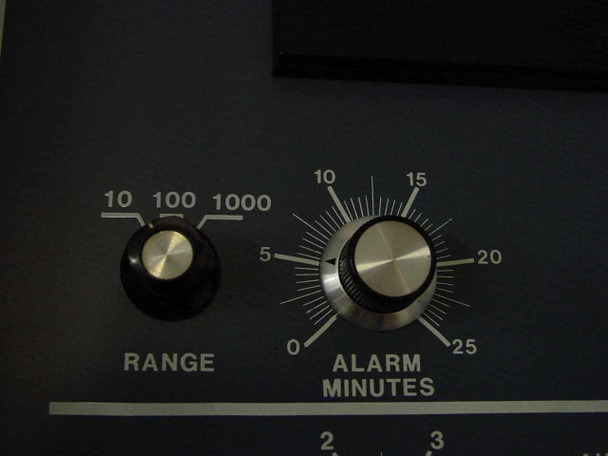

  • Close-up of front panel controls showing Range selector knob (10, 100, 1000) and Alarm Minutes adjustable dial (0–25 minutes)

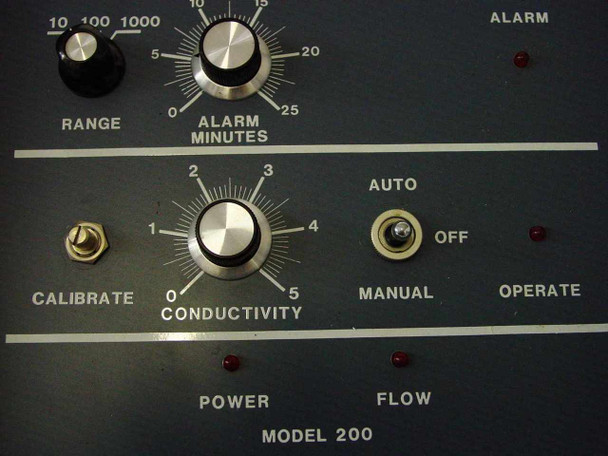

  • Full front panel view of Lakewood Instruments Model 200 showing Range, Alarm Minutes, Conductivity knobs, Auto/Off/Manual toggle, Alarm and Operate LEDs, Power and Flow LEDs, and Model 200 label

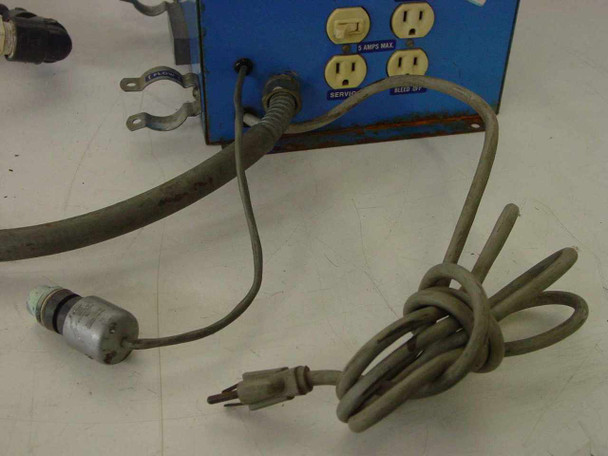

  • Rear view of Lakewood Instruments Model 200 showing three outlets, pipe clamp bracket hardware, power cord, and solenoid valve assembly with hose
  • Close-up of Spears pipe fitting labeled Sylmar California 3/4 inch PVC T SCH 40 attached to solenoid valve assembly

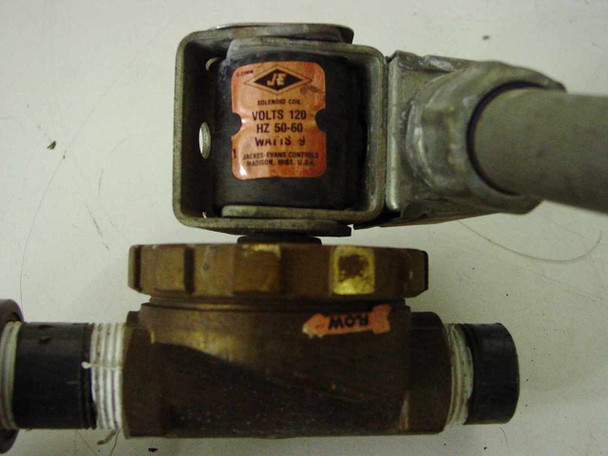

  • Close-up of Jack Evans solenoid valve coil showing label with Volts 120, Hz 50-60, Watts 9, Jack Evans Controls Madison WI USA, attached to brass valve body with Flow label
$200.00
Was: $400.00
Current Stock: 1

Sold Out

Description

Lakewood Instruments 200 Hydro Pure Conductivity Meter 120V Adjustable Alarm Water

Benchtop water conductivity controller and monitor for water treatment systems. Measures conductivity across three selectable ranges (10, 100, 1000) and controls chemical feed pumps and bleed-off valves via three 5-amp outlets.

Specifications & What's Included

  • Power: 120 VAC, 60 Hz; 5 amps max output per outlet
  • Conductivity ranges: 10 / 100 / 1000 (selectable)
  • Adjustable alarm timer: 0–25 minutes
  • Three outlets: Chem Pump, Service, Bleed Off
  • Controls: Range, Alarm Minutes, Conductivity, Auto/Off/Manual
  • Analog panel meter display (0–5 scale)
  • LEDs: Power, Flow, Alarm, Operate
  • Includes Jack Evans 120V solenoid valve, 3/4" PVC pipe fitting (Spears), power cord

Applications

Used in water treatment and cooling tower systems to monitor and maintain water conductivity levels. Controls chemical dosing pumps and manages bleed-off operations to optimize water quality and reduce scale buildup. Common in commercial and industrial water systems where consistent conductivity monitoring is required.

Condition: Used
This Lakewood Instruments Model 200 Hydro Pure Conductivity Meter has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional. The blue steel enclosure shows surface rust along the edges and top, with general wear and paint scuffing consistent with industrial service — visible in the photos. The front panel controls, analog conductivity meter, and indicator LEDs are all present and intact. The solenoid valve assembly (Jack Evans Controls, 120V), 3/4-inch PVC SCH 40 pipe fitting (Spears), and power cord are included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Lakewood Instruments
Model:
200
MPN:
200
Type:
Water Conductivity Controller / Monitor
SKU:
35986
Series:
Hydro Pure
Power Requirements:
120 VAC, 60 Hz
Output Current:
5 Amps Max
Voltage Input:
120 VAC 60 Hz
Conductivity Range:
10 / 100 / 1000 (selectable)
Alarm Timer Range:
0–25 Minutes (adjustable dial)
Number of Outlets:
3 (Chem Pump, Service, Bleed Off)
Outlet Rating:
5 Amps Max
Controls:
Range, Alarm Minutes, Conductivity, Auto/Off/Manual
Indicators:
Power LED, Flow LED, Alarm LED, Operate LED
Display Type:
Analog panel meter (conductivity, 0–5 scale)
Valve Included:
Yes — Jack Evans solenoid valve, 120V 50-60 Hz
Valve Connection:
3/4 inch pipe threads (PVC, SCH 40)
Valve Manufacturer:
Jack Evans Controls, Madison, WI
Pipe Fitting Brand:
Spears, Sylmar, CA — 3/4 in. PVC T SCH 40
Form Factor:
Benchtop / Wall-mount enclosure
Application:
Water quality monitoring, bleed-off control, water treatment
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Seller Notes:
Includes solenoid valve assembly, pipe fitting, and power cord
Condition Notes:
Lakewood Instruments Model 200 Hydro Pure Conductivity Meter. Used, pulled from working environment, functional. Enclosure shows surface rust and wear. Includes solenoid valve assembly, pipe fitting, and power cord. Good used condition.
