LakeShore 330 Autotuning Temperature Controller IEEE-488 GPIB Serial I/O

(No reviews yet) Write a Review
SKU:
43258
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
11.00 LBS
Shipping:
Calculated at Checkout
  • LakeShore 330 Autotuning Temperature Controller – front panel view showing Sample and Control LED displays and numeric keypad

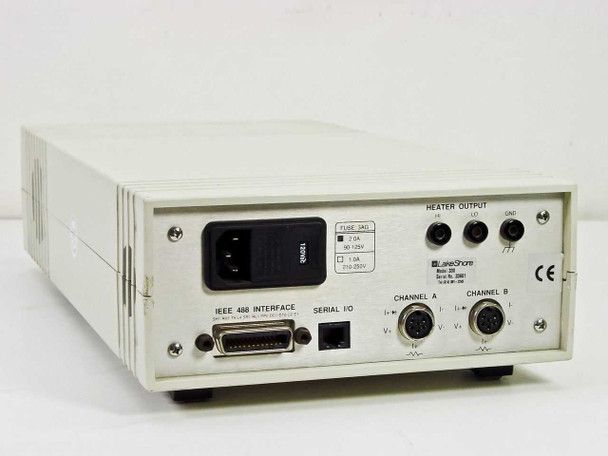

  • LakeShore 330 Temperature Controller – rear panel showing IEC AC inlet, IEEE-488 GPIB port, Serial I/O, heater output terminals, and Channel A and B sensor connectors
  • LakeShore Model 330 rear label closeup showing Model 330, Serial No. 33601, and phone number

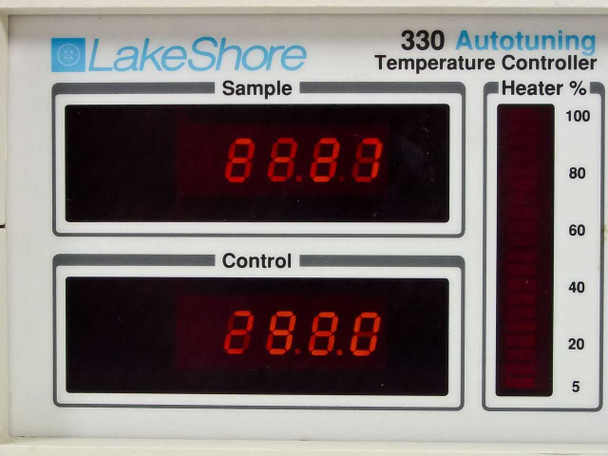

  • LakeShore 330 front panel closeup – Sample display reading 88.80 and Control display reading 288.0 with Heater % bargraph
  • LakeShore 330 front panel keypad closeup showing Units, Baud, Address, Channel, Input Type, Curve, P, I, D, AutoTune, Local, SoftCal, and Power button area
  • LakeShore 330 rear panel closeup – IEC AC power inlet with 120Vac fuse block (3AG, 2.0A / 1.0A), IEEE 488 Interface connector, and Serial I/O port
  • LakeShore 330 rear panel closeup – Heater Output binding posts (HI, LO, GND), Channel A and Channel B multi-pin sensor input connectors, and CE mark
$475.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

LakeShore 330 Autotuning Temperature Controller IEEE-488 GPIB Serial I/O

The LakeShore 330 is a two-channel autotuning temperature controller designed for precision cryogenic and low-temperature research applications. It features built-in PID autotuning, a SoftCal calibration function, dual LED readouts for Sample and Control temperatures, and a front-panel Heater % bargraph for real-time monitoring. The rear panel provides IEEE-488 (GPIB) and Serial I/O connectivity for computer-controlled operation in automated measurement systems.

Specifications & What's Included

  • Manufacturer: LakeShore (Lake Shore Cryotronics)
  • Model: 330 Autotuning Temperature Controller
  • Serial No.: 33601
  • Sensor Input: Two channels — Channel A and Channel B (multi-pin circular connectors, rear panel)
  • Heater Output: HI, LO, and GND binding posts on rear panel
  • Display: Dual red LED displays — Sample and Control readouts
  • Heater monitoring: Analog bargraph display (Heater %)
  • Control mode: PID with AutoTune function
  • Calibration: SoftCal front-panel calibration function
  • IEEE-488 GPIB interface: Full IEEE-488 capability — SH1 AH1 T5 L4 SR1 RL1 PP0 DC1 DT0 C0 E1
  • Serial I/O port: RJ-style connector on rear panel
  • AC power: 90–125V / 2.0A or 210–250V / 1.0A (fuse: 3AG)
  • Power connector: Standard IEC C14 inlet
  • Form factor: Benchtop
  • Unit only — no cables, sensor leads, or accessories included

Applications

The LakeShore 330 was designed for temperature measurement and control in cryogenic research environments, commonly used with liquid helium and liquid nitrogen cryostats, closed-cycle refrigerators, and low-temperature sample stages. It supports a range of resistive temperature sensors including silicon diodes, platinum RTDs, and thermocouples via its two independent input channels. The IEEE-488 GPIB interface made it a standard choice for integration into automated test systems and physics laboratory setups — particularly in university and national lab settings where computer-controlled temperature sweeps and data logging are routine. LakeShore Cryotronics temperature controllers from this era remain sought after for legacy cryogenic systems that were designed around them, as well as for general low-temperature PID control applications where the hardware is compatible.

Condition: For Parts or Not Working
This LakeShore 330 Autotuning Temperature Controller powers on but has a missing power button (the button cap is absent — the switch itself can still be actuated). Upon power-up, the unit displays error code ER27 on the Sample readout; no further functional testing was possible beyond confirming it powers on. It is being sold AS-IS for parts or repair and is not guaranteed functional. The rear panel, IEEE-488 GPIB connector, Serial I/O port, heater output binding posts, and Channel A and B sensor connectors all appear intact and show normal cosmetic wear consistent with lab use. Please view our full photo set and contact us if you have any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
LakeShore
Model:
330
MPN:
330
Type:
Autotuning Temperature Controller
SKU:
43258
Seller Notes:
Unit only — no cables or accessories included.
Number of Channels:
2 (Channel A and Channel B)
Interface:
IEEE-488 GPIB, Serial I/O
IEEE 488 Capabilities:
SH1 AH1 T5 L4 SR1 RL1 PP0 DC1 DT0 C0 E1
Heater Output:
HI, LO, GND binding posts
Sensor Input Connectors:
Channel A and Channel B — multi-pin circular connectors
Power Requirements:
90-125V 2.0A or 210-250V 1.0A, 50/60Hz
Fuse:
3AG, 2.0A @ 90-125V or 1.0A @ 210-250V
Power Connector:
IEC C14 (standard 3-prong AC inlet)
Features:
Autotuning PID, SoftCal, Local/Remote, Heater % bargraph
Display:
Dual LED displays: Sample and Control readouts
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Condition Notes:
LakeShore 330 Autotuning Temperature Controller powers on but shows ER27 error. Power button cap is missing. No further testing possible. Sold AS-IS for parts or repair only — not guaranteed functional.
