Lab-Line 3620 Squaroid Duo-Vac Vacuum Oven 200C 120V 1400W 11x12 Chamber w/ Pump

Lab-Line 3620 Squaroid Duo-Vac Vacuum Oven 200C 120V 1400W 11x12 Chamber w/ Pump

The Lab-Line 3620 Squaroid Duo-Vac is a benchtop vacuum oven designed for drying, curing, degassing, and outgassing applications under controlled vacuum and temperature conditions. It heats to a maximum of 200°C and uses a dual-control system with separate vacuum and air inlet valves, allowing the operator to regulate chamber pressure while maintaining target temperature. The front control panel features a safety cutoff thermostat, vacuum/air control knobs, and a WIKA vacuum gauge reading in both in.Hg and kPa. This unit includes a vacuum pump with tubing.

Specifications & What's Included

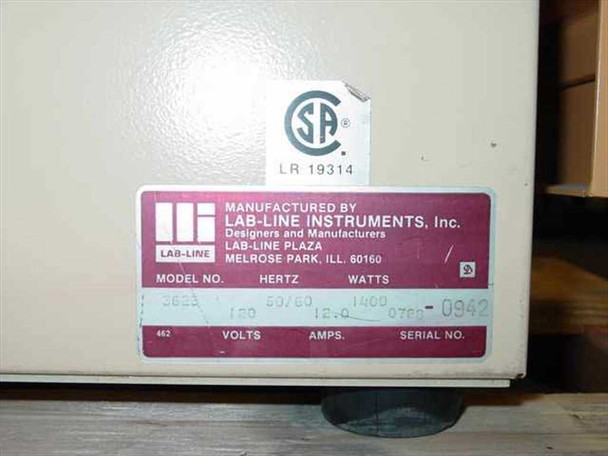

• Manufacturer: Lab-Line Instruments, Inc. — Melrose Park, IL
• Model: 3620 Squaroid Duo-Vac Oven
• Maximum Temperature: 200°C
• Chamber Dimensions: 11 in. diameter (W) × 12 in. deep (D)
• Voltage: 120V AC
• Frequency: 50/60 Hz
• Power: 1400W
• Current: 12.0A
• Vacuum Gauge: WIKA analog gauge, range 0 to −30 in.Hg / 0 to −100 kPa
• Controls: Safety thermostat knob (0–100 scale), vacuum valve, air inlet valve, indicator lights
• Interior: Stainless-lined chamber with one removable shelf/rack
• Door: Hinged front door with rubber compression gasket for vacuum seal
• Front panel caution label:
  Condition: Used
  This Lab-Line 3620 Squaroid Duo-Vac Vacuum Oven has been pulled from a working laboratory environment and has not been powered up or tested at our facility. The unit appears to be in good used condition overall. The front cabinet, control panel, and door gasket show normal wear consistent with lab use. The interior chamber lining is intact with some minor surface marks visible on the floor of the chamber. The vacuum pump with tubing is included. Please review all photos carefully and contact us with any questions before purchasing.
