Kurzweil

Kurzweil 9178 Rev A 8-Bit ISA Controller Card MC68020RC168 25-Pin for Xerox

(No reviews yet) Write a Review
SKU:
40782
MPN:
9178 Rev A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

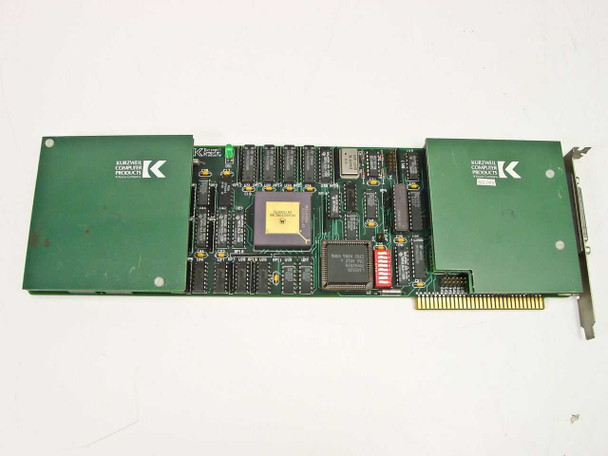

  • Kurzweil 9178 Rev A 8-bit ISA controller card top view showing Motorola MC68020RC168 CPU and Kurzweil Computer Products labels
  • Kurzweil 9178 Rev A ISA card bottom/solder side view showing PCB traces and ISA edge connector
  • Kurzweil 9178 Rev A PCB label closeup showing artwork number 9178 Rev A, UL mark, 94V-0 rating, and date code 2488
  • Kurzweil 9178 Rev A ISA card bracket end showing 25-pin DB25 connector on the rear bracket
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

Kurzweil 9178 Rev A 8-Bit ISA Controller Card MC68020RC168 25-Pin for Xerox

This is an 8-bit ISA controller card designed for Xerox systems. The card contains a Motorola MC68020RC168 processor and connects via a 25-pin DB25 bracket connector.

Specifications & What's Included

  • Model: Kurzweil 9178 Rev A
  • Processor: Motorola MC68020RC168
  • Bus Interface: ISA (8-bit)
  • Connector: 25-Pin DB25
  • Form Factor: Full-Length ISA Card
  • UL Rating: 94V-0
  • Board only; no cables or accessories included

Applications

Controller cards of this type were used in Xerox document processing and imaging systems during the 1980s and 1990s. The MC68020 processor handled peripheral control and data management tasks within larger system architectures. These cards installed directly into ISA slots in compatible Xerox equipment.

Condition: Used
This Kurzweil 9178 Rev A 8-bit ISA controller card has been inspected and is in good used condition. The PCB shows normal light aging consistent with its vintage — no visible damage, broken traces, or missing components. The Motorola MC68020RC168 processor and other ICs appear intact. The 25-pin bracket connector is present and looks undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Kurzweil Computer Products
Model:
9178
MPN:
9178 Rev A
Secondary Model:
XUDBQ-43
Type:
8-Bit ISA Controller Card
SKU:
40782
Processor / Main IC:
Motorola MC68020RC168
Bus Interface:
ISA (8-bit)
Connector Type:
25-Pin (DB25)
Hardware Revision:
Rev A
Compatible With:
Xerox systems
Form Factor:
Full-Length ISA Card
PCB Artwork Number:
9178 Rev A
UL Rating:
94V-0
Condition:
Used – Inspected and in Good Condition
Country/Region of Manufacture:
United States
Seller Notes:
Board only; no cables or accessories included.
Condition Notes:
Kurzweil 9178 Rev A ISA controller card. Inspected and in good used condition. PCB shows normal light aging; no visible damage. MC68020RC168 CPU and ICs intact. 25-pin bracket connector present.
View AllClose

Related Products

Related Products

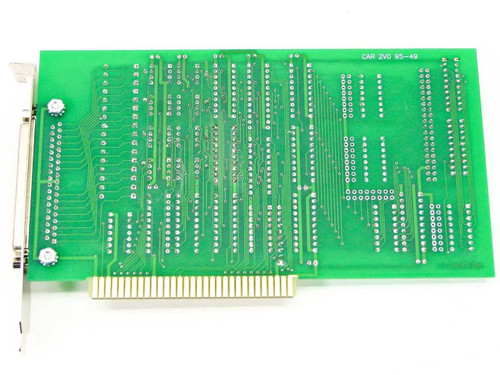

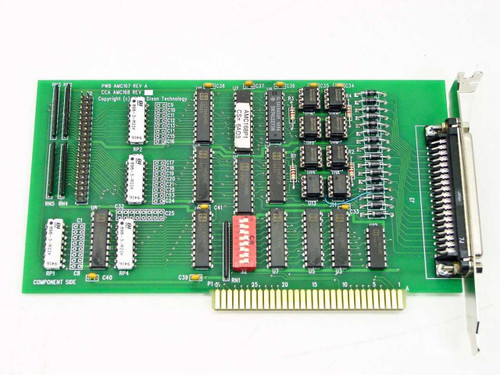

Dison Technology AMC167 Rev A 8-bit ISA port controller card — component side showing 40-pin internal header, DIP ICs, red DIP switch bank, and 37-pin D-sub external connector with ISA edge connector Dison AMC167 Rev A ISA controller card — solder side showing PCB traces, date code CAR 2VG 95-49, and 37-pin D-sub bracket connector
