Kurz K-BAR 2000B Multipoint Insertion Mass Flow Meter 34" Probe C-276

(No reviews yet) Write a Review
SKU:
49945
MPN:
K-BAR 2000B
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
40.00 LBS
Shipping:
Calculated at Checkout

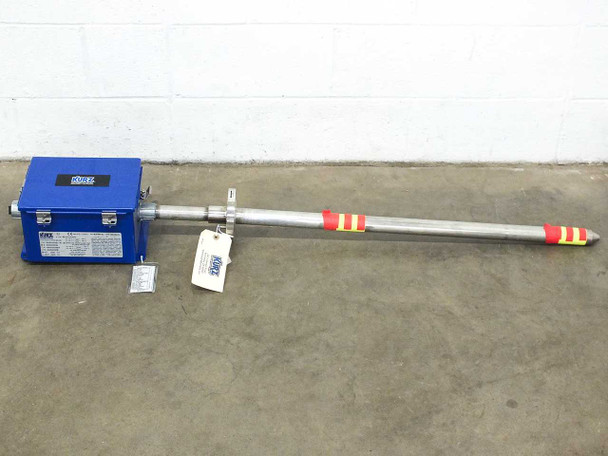

  • Kurz Instruments K-BAR 2000B multipoint insertion mass flow meter — full assembly showing blue electronics enclosure and 34-inch stainless steel probe with red and yellow banding markers, viewed from front-left

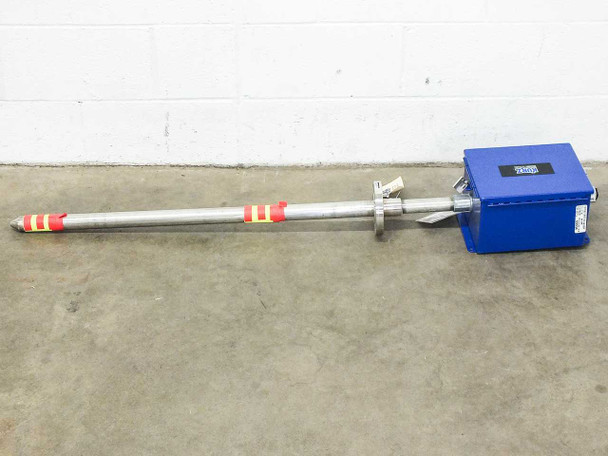

  • Kurz K-BAR 2000B mass flow meter element — full side view of complete assembly laid flat, electronics enclosure on right and probe tip visible on left with safety banding

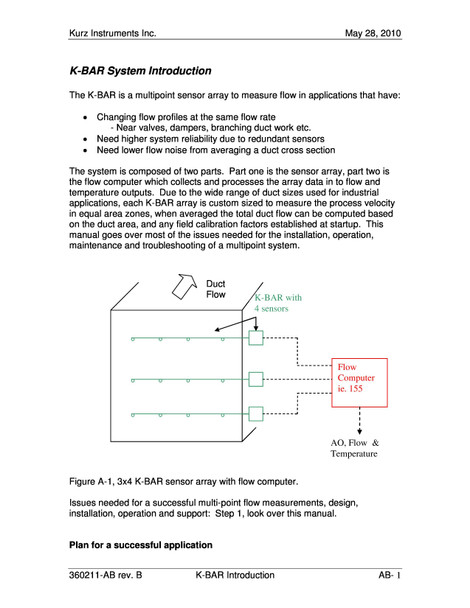

  • Kurz Instruments K-BAR system introduction document page showing multipoint sensor array diagram and 3x4 K-BAR sensor array schematic with 155 flow computer connection

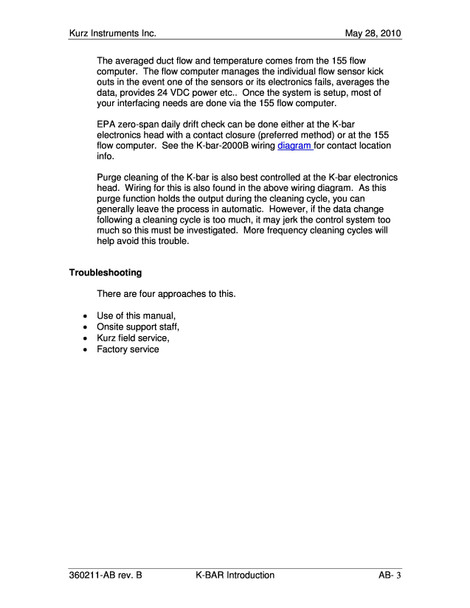

  • Kurz K-BAR 2000B documentation page — troubleshooting section and 155 flow computer operation notes, document number 360211-AB Rev. B dated May 28, 2010

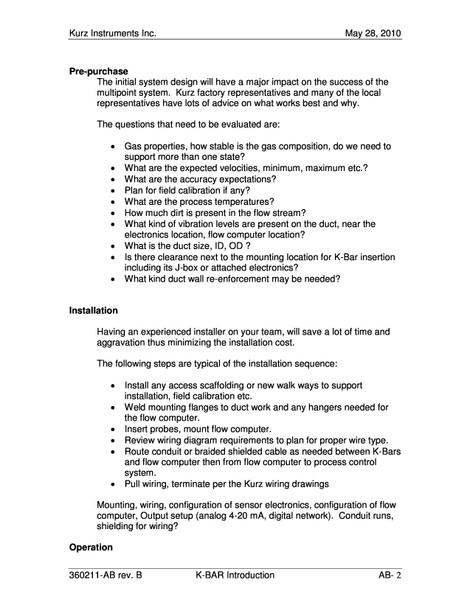

  • Kurz K-BAR installation documentation page — pre-purchase checklist, installation sequence steps, and operation configuration details, Rev. B May 2010

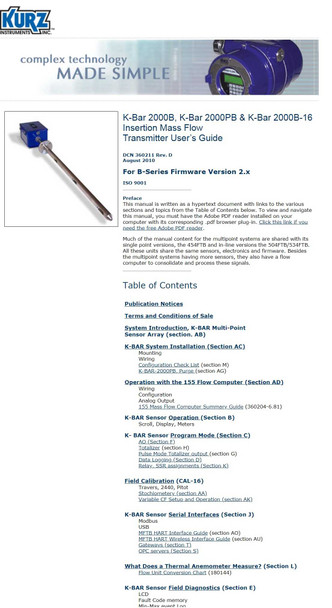

  • Kurz Instruments K-Bar 2000B, 2000PB, and 2000B-16 Insertion Mass Flow Transmitter User's Guide cover page — DCN 360211 Rev. D, August 2010, B-Series Firmware Version 2.x, ISO 9001, with table of contents

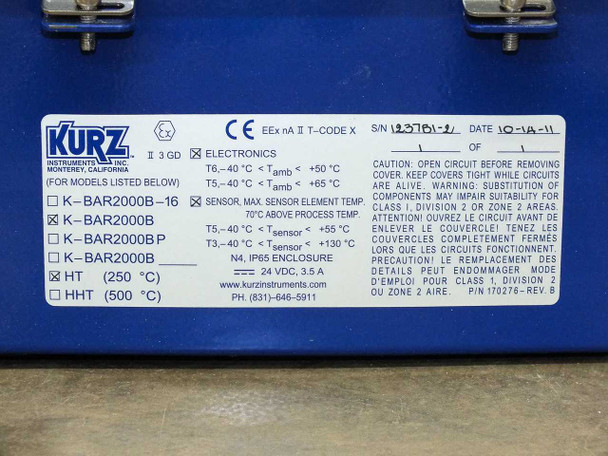

  • Kurz K-BAR 2000B electronics enclosure nameplate label — shows model variants K-BAR2000B-16 and K-BAR2000B checked, HT (250°C) option checked, 24 VDC 3.5A power, EEx nA II T-CODE X hazardous rating, N4 IP65 enclosure, P/N 170276 Rev. B, S/N and date label

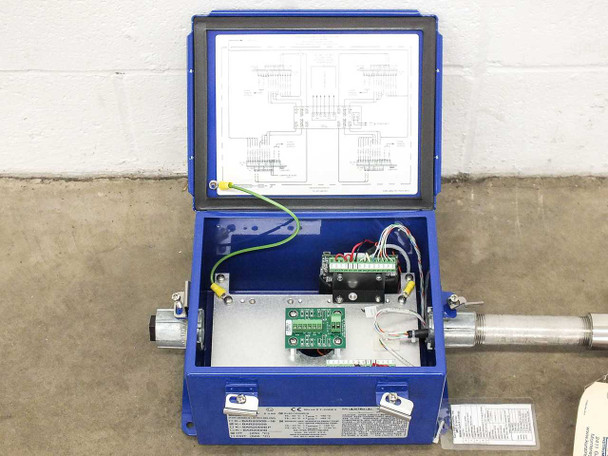

  • Kurz K-BAR 2000B electronics enclosure open — interior view showing terminal blocks, green PCB sensor interface board, wiring harness, and wiring diagram mounted to inside of lid

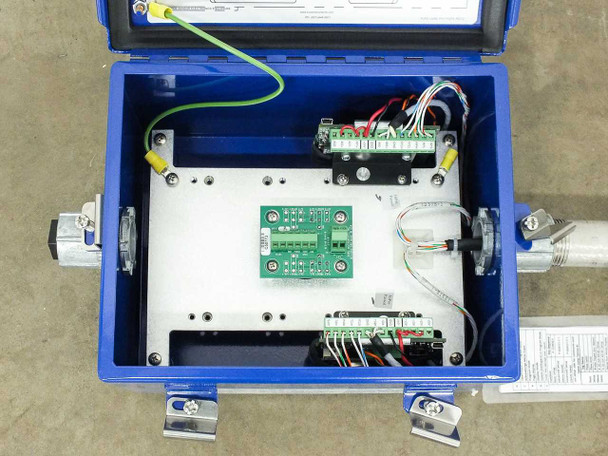

  • Kurz K-BAR 2000B enclosure interior — top-down view of electronics bay with green interface PCB centered, terminal block arrays, multicolored wiring, and probe connection port on right side

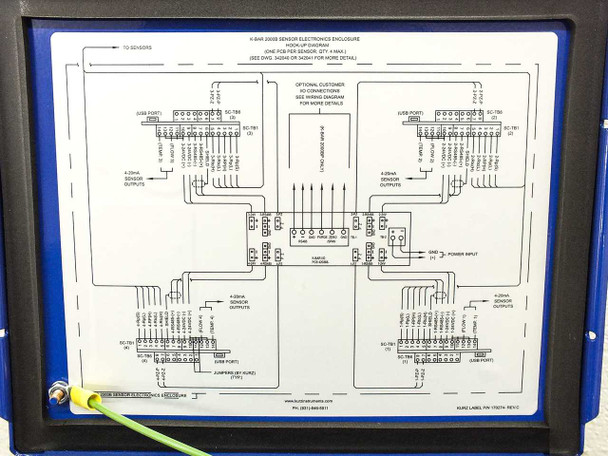

  • Kurz K-BAR 2000B sensor electronics enclosure wiring pickup diagram mounted inside enclosure lid — shows USB ports, SC-788 connections, 4–20mA sensor inputs/outputs, power input block, and optional I/O connections
  • Kurz Instruments K-BAR 2000B Multipoint Insertion Mass Flow Meter Element
  • Kurz Instruments K-BAR 2000B Multipoint Insertion Mass Flow Meter Element
  • Kurz Instruments K-BAR 2000B Multipoint Insertion Mass Flow Meter Element
$3,500.00
Was: $7,000.00
Current Stock: 1

Sold Out

Description

Kurz K-BAR 2000B Multipoint Insertion Mass Flow Meter 34" Probe C-276

Thermal mass flow meter element for insertion into ducts and stacks. Measures gas velocity and flow using multipoint averaging across the sensor probe.

Specifications & What's Included

  • 34" probe length with C-276 alloy, all-welded construction
  • Velocity range: 0–12,000 SFPM (0–56 NMPS)
  • Velocity accuracy: ±(1% of reading + 20 SFPM)
  • Sensor max temperature (HT option): 250°C
  • Electronics: 24 VDC, 3.5 A; -40°C to +65°C operating range
  • Output: 4–20 mA analog, Modbus, HART, USB digital network
  • Enclosure rating: N4, IP65; EEx nA II T-CODE X; Class I Division 2
  • Includes probe and external electronics enclosure

Applications

Used in combustion control, emissions monitoring, and duct flow measurement systems. Designed for integration with Kurz 155 Flow Computer and compatible with standard industrial control networks via Modbus and HART interfaces. Typical applications span HVAC systems, industrial stacks, and process gas measurement where multipoint velocity averaging provides representative flow data.

Condition: New
This Kurz Instruments K-BAR 2000B Multipoint Insertion Mass Flow Meter Element is new and unused. It comes in a non-original open box — the unit itself shows no signs of use or wear. The probe and blue electronics enclosure are intact and complete as shown in the photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Kurz Instruments
Model:
K-BAR 2000B
MPN:
K-BAR2000B
Secondary Model:
K-BAR 2000B-16
Part Number:
170276 Rev. B
DCN / Publication Number:
DCN 360211 Rev. D
Type:
Multipoint Insertion Thermal Mass Flow Meter Element
SKU:
49945
Probe Length:
34 inches
Sensor Material:
C-276 alloy, all-welded construction (standard)
Sensor Support Material:
316L stainless steel (standard)
Sensor Support Diameter Seg 1:
1-1/2" tubing (standard)
Sensor Support Diameter Seg 2:
2-1/2" (Sch. 10)
Sensor Support Diameter Seg 3:
4" (Sch. 10)
Velocity Range:
0–12,000 SFPM (0–56 NMPS)
Velocity Accuracy:
±(1% of reading + 20 SFPM); 0.25% reading (cal)
Electronics Operating Temp Range:
-40°C to +50°C (K-BAR2000B); -40°C to +65°C (B-16)
Sensor Element Max Temp (HT):
70°C above process temp; max sensor +55°C (std)
Max Sensor Temp (HT option):
250°C
Power Requirements:
24 VDC, 3.5 A
Enclosure Rating:
N4, IP65
Hazardous Area Rating:
EEx nA II T-CODE X; Class I, Division 2 or Zone 2
Output:
Analog 4–20 mA; digital network
Firmware Version:
B-Series Firmware Version 2.x
Application:
Combustion control, emissions monitoring, duct flow
Measurement Type:
Multipoint averaging thermal mass flow velocity
Flow Computer Compatibility:
Kurz 155 Flow Computer
Interface:
Modbus, USB, MFIB HART
Country/Region of Manufacture:
United States
Manufacturer Location:
Monterey, California
Form Factor:
Insertion / Duct-Mount with External Electronics Enclosure
Seller Notes:
New in non-original open box. Probe and electronics enclosure included.
Condition:
New – Open Box (non-original packaging)
Condition Notes:
Kurz K-BAR 2000B Multipoint Insertion Mass Flow Meter is new and unused, in non-original open box. Probe and electronics enclosure included. No signs of use or wear.
