Description

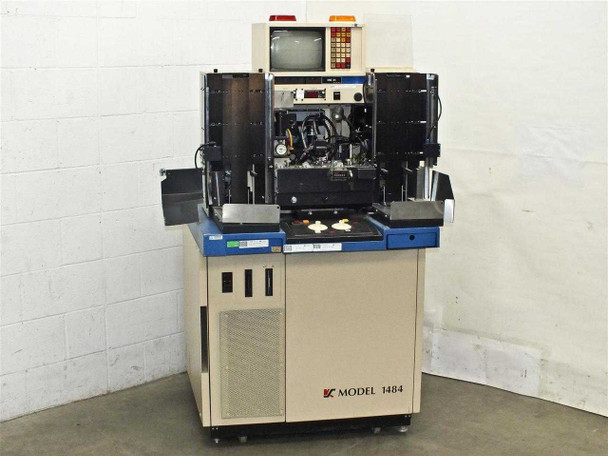

Kulicke & Soffa 1484 Automatic Wedge Wire Bonder K&S Semiconductor Die Bond
Automatic wedge wire bonder for semiconductor die attachment and microelectronics packaging. Uses ultrasonic aluminum wire bonding to create interconnections in semiconductor assembly.
Specifications & What's Included
- Wedge ultrasonic bonding method with aluminum wire capability
- Integrated control cabinet with card cage and CRT monitor

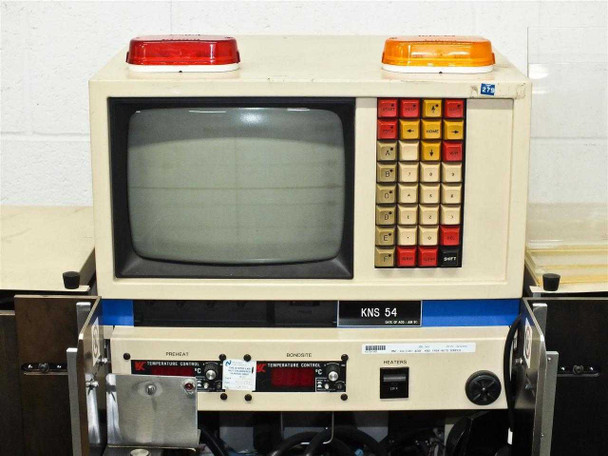

- Vision system with integrated camera head and monitor

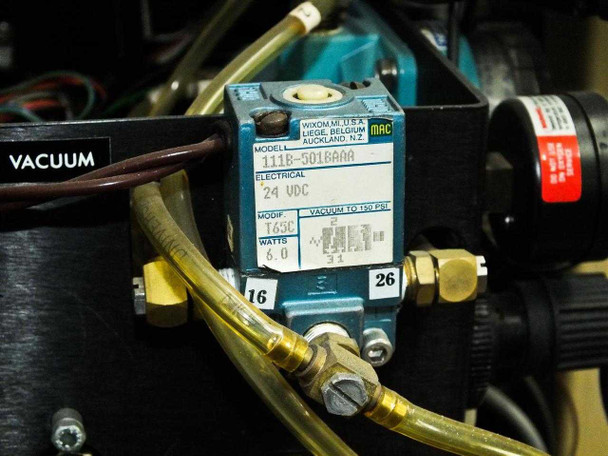

- Pneumatic system with 3-gauge pressure panel (electrode, bond head cooling, wirefeed)
- Electro-Craft servo motor (P/N 1140-001-0729)
- Globe Motors DC motor, 27 VDC (P/N JCO-322)
- Floor-standing cabinet form factor
- Front panel controls: Emergency Stop, Cancel, Index, Auto Windup, Enter, Stop
Applications
The K&S 1484 was used in semiconductor packaging and microelectronics manufacturing for automated die bonding operations. Wire bonding equipment of this type is standard in die attach processes, connecting semiconductor dies to package substrates. The 1484 was deployed in high-volume production environments requiring consistent, repeatable bonding quality.
Condition: Used

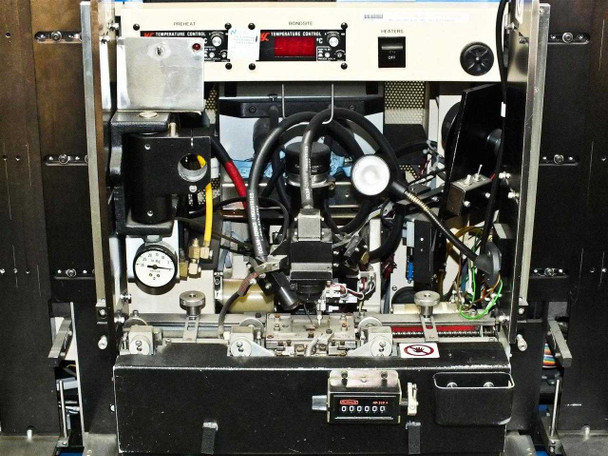

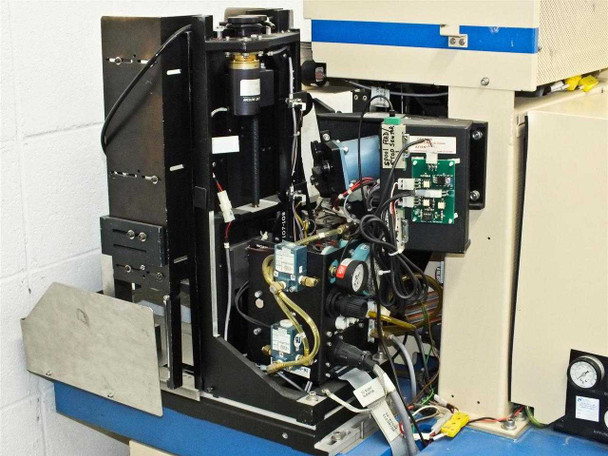

This Kulicke & Soffa Model 1484 Automatic Wedge Wire Bonder was pulled from a working environment where it was in active use and functional. It has been inspected and appears to be in good condition overall. The cabinet exterior shows normal wear consistent with production use — some scuffing and minor surface marks on the enclosure panels. The bond head assembly, servo motors, pneumatic pressure panel, card cage, and integrated CRT monitor/vision system are all present and appear intact. The internal electronics card cage is fully populated. The pneumatic panel shows three pressure gauges (electrode, bond head cooling, and wirefeed) along with a vacuum gauge, all appearing in serviceable condition. Please view our photo set and contact us if you have any questions.
This Kulicke & Soffa Model 1484 Automatic Wedge Wire Bonder was pulled from a working environment where it was in active use and functional. It has been inspected and appears to be in good condition overall. The cabinet exterior shows normal wear consistent with production use — some scuffing and minor surface marks on the enclosure panels. The bond head assembly, servo motors, pneumatic pressure panel, card cage, and integrated CRT monitor/vision system are all present and appear intact. The internal electronics card cage is fully populated. The pneumatic panel shows three pressure gauges (electrode, bond head cooling, and wirefeed) along with a vacuum gauge, all appearing in serviceable condition. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Kulicke & Soffa |
Model: |
1484 |
MPN: |
1484 |
Type: |
Automatic Wedge Wire Bonder |
SKU: |
44840 |
Condition: |
Used – Pulled from Working Environment |
Application: |
Semiconductor Die Bonding, Microelectronics Packaging |
Bonding Method: |
Wedge (Ultrasonic) |
Wire Type: |
Aluminum Wire |
Automation Level: |
Automatic |
Form Factor: |
Floor-Standing / Freestanding Cabinet |
Control System: |
Integrated control cabinet with card cage and CRT monitor |
Vision System: |
Integrated CRT monitor with camera head (camera head port visible) |
Pneumatic System: |
3-gauge pressure panel: electrode, bond head cooling, wirefeed; vacuum gauge included |
Servo Motor: |

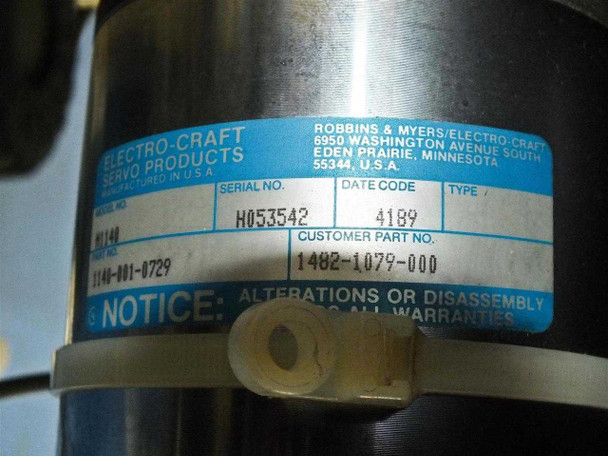

Electro-Craft servo (P/N 1140-001-0729, customer P/N 1482-1079-000) |
DC Motor: |
Globe Motors P/N JCO-322 / 283-1010-000, 27 VDC, date code J9017 |
Card Cage: |

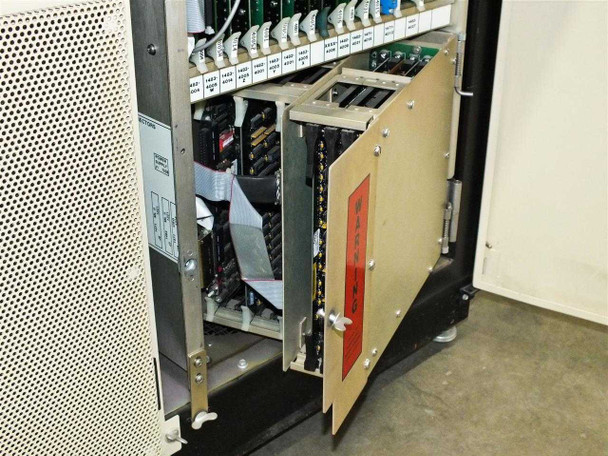

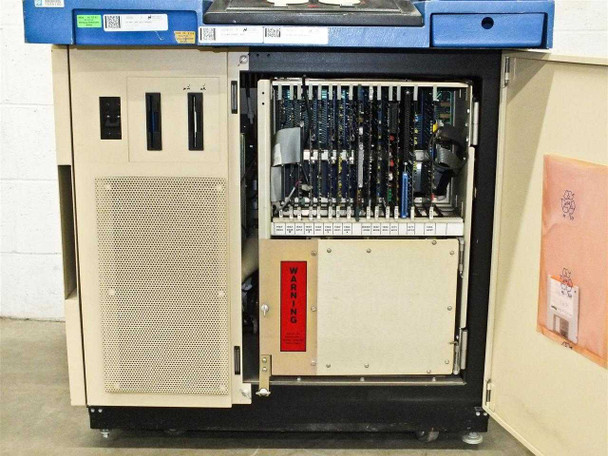

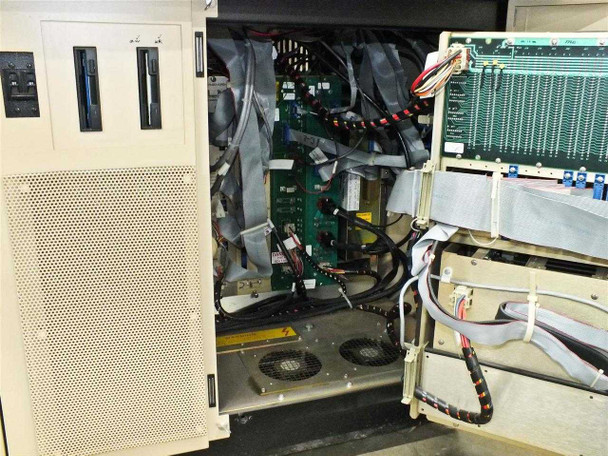

Multi-slot card cage with labeled control boards (1402, 1422, 1462 series) |
Front Panel Controls: |
Emergency Stop, Cancel, Index, Auto Windup, Enter, Stop |
Camera Interface: |

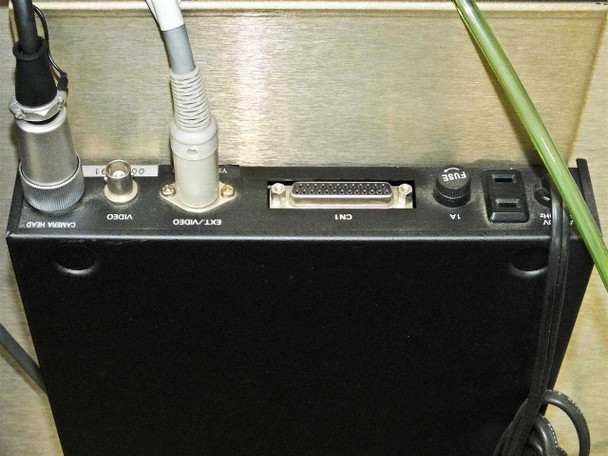

Camera Head, Video, Ext/Video, CN1 (DB25), 1A fused IEC power |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit includes integrated control cabinet, pneumatic panel, servo motors, vision system, and work stage. Sold as shown. |
Condition Notes: |
Kulicke & Soffa 1484 Wedge Wire Bonder pulled from a working environment where it was in use and functional. Inspected and in good condition. Cabinet shows normal production wear. |
