Kraft Dynatronix CDC 10-.5-1 SP 115V DC Electroplating Power Supply Omron

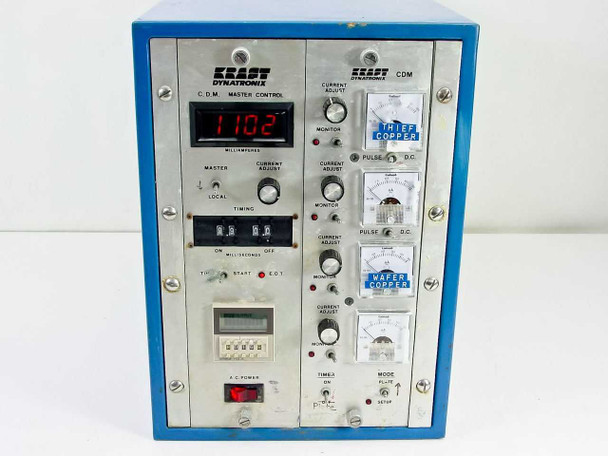

The Kraft Dynatronix CDC 10-.5-1 SP is a benchtop DC power supply engineered for precision copper electroplating in laboratory and industrial settings. This unit provides dual independent output circuits labeled Thief Copper and Wafer Copper, each with selectable Pulse and DC output modes and independent current adjustment and monitoring. An integrated Omron H3CA digital timer automates cycle control for repetitive plating processes, making it suitable for automated or semi-automated production runs.

Specifications & What's Included

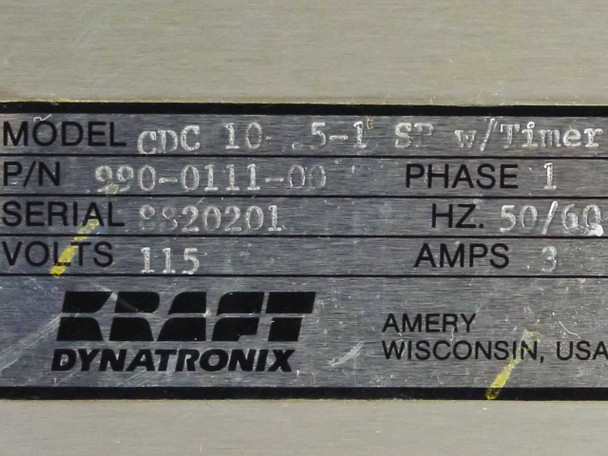

  • Make: Kraft Dynatronix, Amery, Wisconsin, USA
  • Model: CDC 10-.5-1 SP
  • Part Number: 990-0111-00
  • Input: 115V AC, single phase, 3 Amps, 50/60 Hz

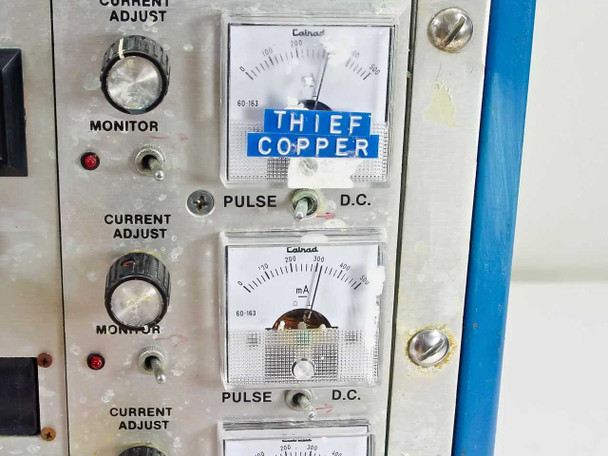

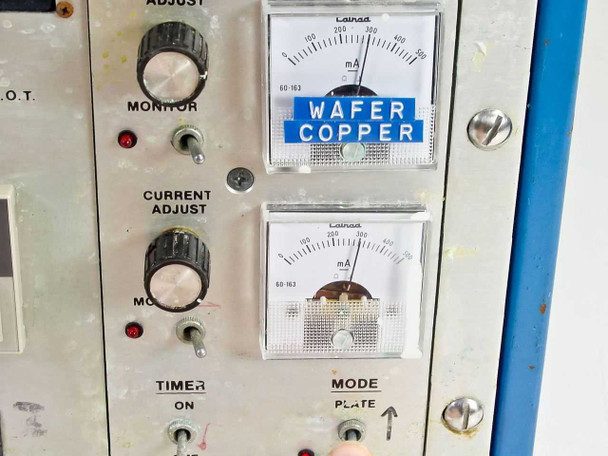

  • Output Channels: Thief Copper and Wafer Copper (dual independent circuits)
  • Output Modes: Pulse and DC (selectable per channel)
  • Current Control: Independent Current Adjust and Monitor knobs per channel
  • Display: Red LED digital readout displaying milliamperes

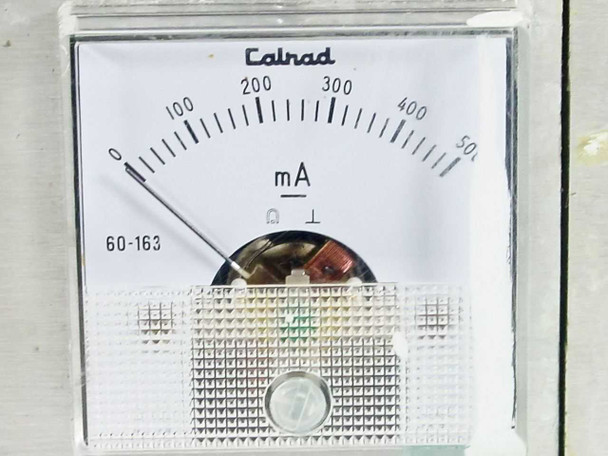

  • Meters: Three Calrad 60-163 mA analog meters installed
  • Timer: Omron H3CA integrated digital timer with adjustable milliseconds ON/OFF timing

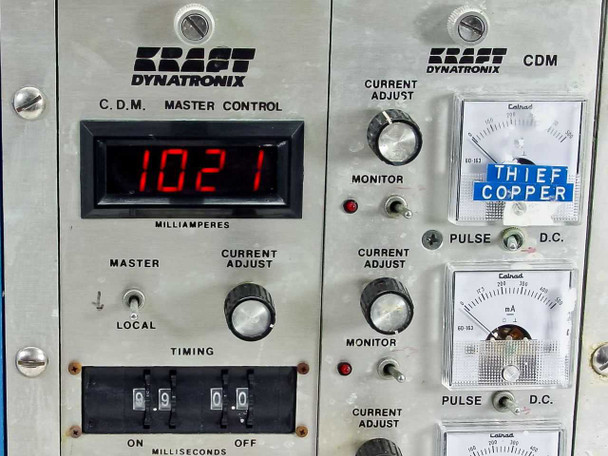

  • Control Panel: CDM Master Control with Master/Local switching capability

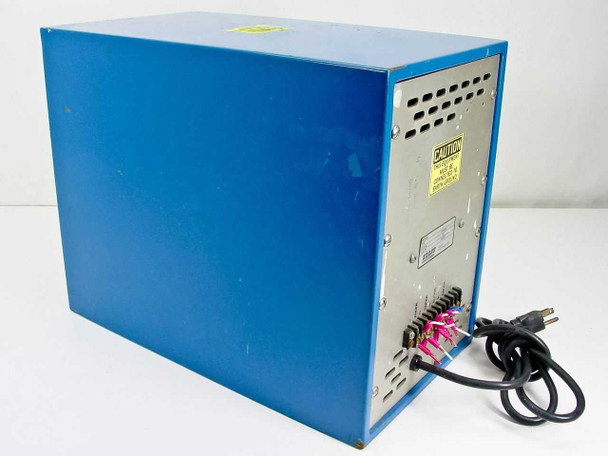

  • Output Terminals: Four labeled Anode terminals on rear terminal block
  • Enclosure: Blue painted steel, benchtop form factor
  • Dimensions: 10"W × 14"D × 10"H

Applications

This type of electroplating power supply is used in laboratory and industrial copper electroplating operations, particularly for precision plating applications requiring dual independent circuits. The Thief Copper and Wafer Copper channels allow selective masking and controlled deposition on different areas of workpieces or for simultaneous processing of different plating materials. The integrated timer and pulse/DC switching make it suitable for automated process cycles, improving consistency and repeatability in high-precision electroplating work. These supplies are common in research laboratories, manufacturing facilities focused on circuit board finishing, and precision metal finishing operations where controlled copper deposition is critical.

Condition: For Parts or Not Working
This Kraft Dynatronix CDC 10-.5-1 SP benchtop electroplating power supply powers on but has not been fully tested for plating output performance and is sold AS-IS for parts or repair. The rear terminal block shows corrosion on the connections from prior laboratory use. The front panel exhibits cosmetic wear consistent with its working history. The blue enclosure is intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Kraft Dynatronix
Model:
CDC 10-.5-1 SP
MPN:
990-0111-00
SKU:
42628
Type:
DC Electroplating Power Supply with Integrated Timer
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Powers on but not tested for plating output; sold AS-IS. Includes Omron H3CA timer and output wiring.
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Input Voltage:
115V AC, Single Phase
Input Current:
3 Amps
Phase:
Single Phase
Frequency:
50/60 Hz
Output Type:
Pulse and DC (selectable per channel)
Output Channels:
Dual Independent (Thief Copper, Wafer Copper)
Timer:
Omron H3CA Digital Timer (Integrated)
Meter Type:
Calrad 60-163 mA analog meters (3x), Red LED digital display
Display:
Red LED digital display (milliamperes)
Timing Range:
Adjustable Milliseconds ON/OFF
Application:
Copper Electroplating (Thief and Wafer Circuits)
Control Panel:
CDM Master Control with Master/Local Switching
Output Terminals:
4 Anode Terminals on Rear Terminal Block
Dimensions:
10 W x 14 D x 10 H inches
Condition Notes:
Kraft Dynatronix CDC 10-.5-1 SP powers on but not fully tested for plating output; sold AS-IS for parts or repair. Rear terminal block shows corrosion; front panel exhibits cosmetic wear from lab use. Enclosure intact.
Manufacturer Location:
Amery, Wisconsin, USA
Output Modes:
Pulse and DC (Selectable per Channel)
Display Type:
Red LED Digital (Milliamperes)
Meters:
3x Calrad 60-163 mA Analog Meters
