Konarka Power Plastic Model 110 Flexible Thin Film Solar Cell 4.0V 0.477W OPV

Konarka Power Plastic Model 110 Flexible Thin Film Solar Cell 4.0V 0.477W OPV

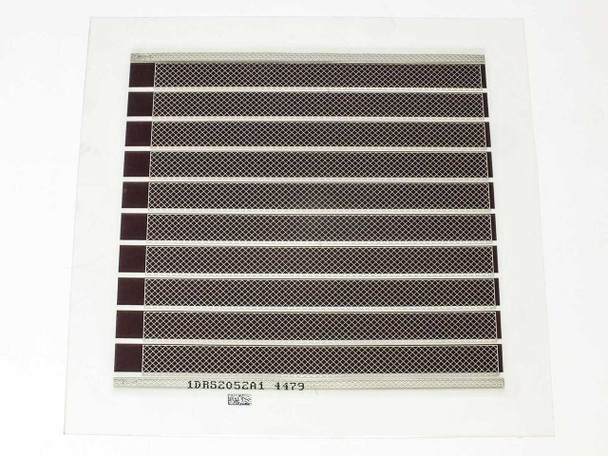

The Konarka Power Plastic Model 110 is a flexible, thin-film organic photovoltaic (OPV) solar cell from Konarka's Power Plastic 10 Series. Unlike conventional rigid silicon solar panels, this cell is printed onto a flexible plastic substrate, making it ultra-thin, lightweight, and rollable. It responds to both indoor and outdoor light sources, enabling use in a wide range of low-power portable and embedded applications.

Specifications & What's Included

• Manufacturer: Konarka Technologies
• Product Line: Power Plastic 10 Series
• Model: 110
• Maximum Power (Pmax): 0.477 W
• Maximum Power Point Voltage (Vmpp): 4.0 V
• Maximum Power Point Current (Impp): 0.121 A
• Open Circuit Voltage (Voc): 5.7 V
• Short Circuit Current (Isc): 0.148 A
• Panel Dimensions: 198 mm × 200 mm (7.79 in × 7.87 in)
• Panel Thickness: 0.5 mm ± 0.05 mm (approx. 0.025 in)
• Operating Temperature Range: -20°C to 65°C (-4°F to 149°F)
• Encapsulation: High light-transmissive laminate polymer
• Power Terminals: Solderable leads
• Bypass/Blocking Diode: Optional (not built-in)
• Weatherproof construction
• Flexible — can be rolled or conformed to curved surfaces
• What's Included: One Konarka Power Plastic Model 110 solar cell panel

Applications

Konarka Power Plastic cells are organic thin-film photovoltaic devices — a technology developed in the early-to-mid 2000s as an alternative to conventional crystalline silicon and amorphous thin-film solar. Rather than semiconductor wafers or vacuum-deposited films, Power Plastic uses organic photo-reactive polymers that can be printed or coated onto flexible plastic, much like printing ink. This makes the cells extremely thin (under 1mm) and fully flexible. The Model 110, at approximately 0.5W and 4.0V, is suited for powering or trickle-charging small electronics: sensors, RFID devices, handheld gadgets, educational DIY solar projects, and embedded low-power applications in wearables or portable devices. Because the organic photovoltaic material responds to diffuse and indoor light (not only direct sunlight), these cells work in conditions where conventional silicon cells perform poorly — fluorescent or LED office lighting, overcast outdoor environments, and partially shaded installations. The 10 Series panels can be connected in series to increase voltage or in parallel to increase current, making them scalable for custom project requirements. Konarka Technologies (based in Lowell, MA) was a pioneer in printed organic solar technology before ceasing operations in 2012; this remaining new-old-stock inventory represents one of the few opportunities to obtain genuine Power Plastic cells for research, prototyping, or collectible interest.
