Description
Kode TIA Model 2001 Time Interval Analyzer Disk Magnetic Tape Drive Tester
Benchtop time interval analyzer designed for testing and troubleshooting disk and magnetic tape drive systems. Measures time interval, jitter, peak shift, and margin characteristics across transparent data streams.
Specifications & Features
- IEEE-488 (GPIB) interface for external control and data transfer
- 10 MHz reference output

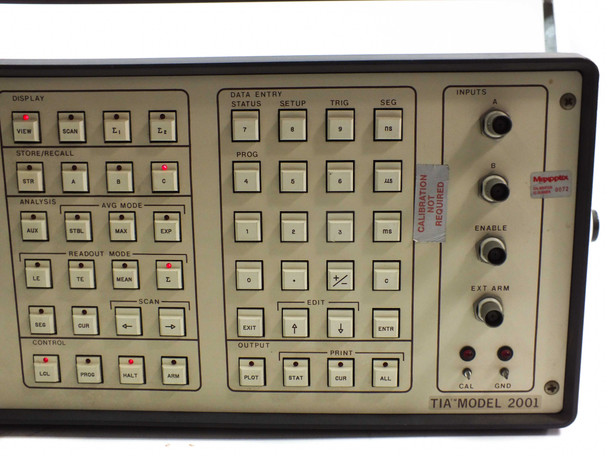

- Multiple BNC inputs on right side panel

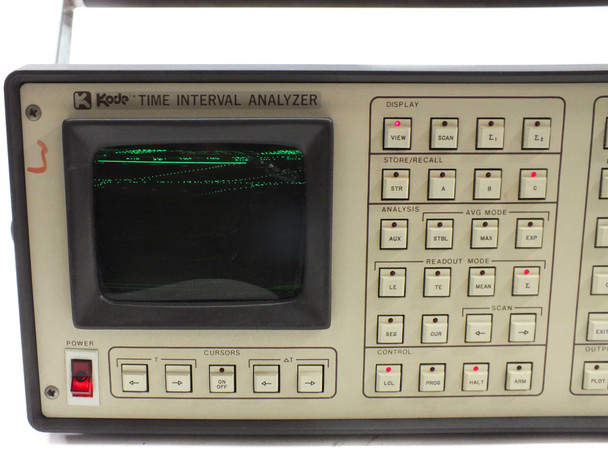

- Built-in CRT display with video output capability
- External printer port on rear panel
- Power: 115/230V AC, 50/60Hz, 2A
- Portable benchtop form factor with carry handle
- Made in USA by Kode, division of Orbatix
Applications
Time interval analyzers were used throughout the 1980s and 1990s for validating read/write timing on disk drive and magnetic tape systems. This unit supports design verification, production testing, and field troubleshooting of drive electronics and media performance. Compatible with standard GPIB-equipped test systems and automation platforms.
Condition: For Parts or Not Working

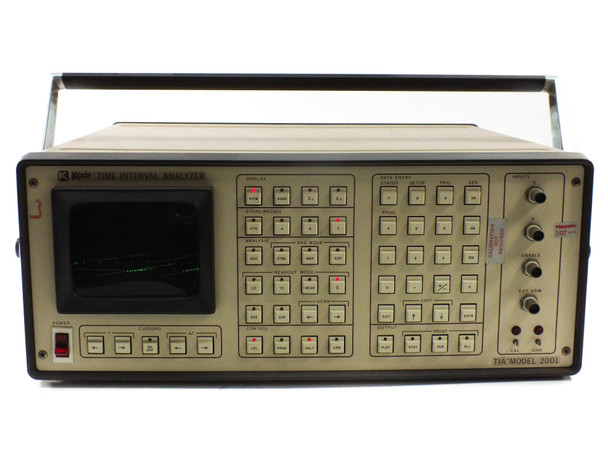

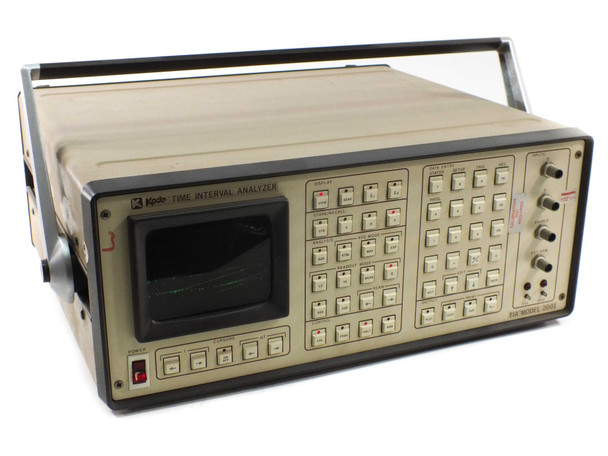

This Kode TIA Model 2001 Time Interval Analyzer is being sold AS-IS for parts or repair. The unit does power on and the front panel illuminates, but the CRT display image is not clear — the display fault is the known issue. It has not been further tested and is not guaranteed functional. The chassis and front panel show cosmetic wear consistent with age and prior lab use, including light scuffing and some yellowing of the beige panels. The rear panel ports (IEEE-488/GPIB, ext printer, 10 MHz output, video out, and AC inlet) are present and visually intact. No manuals or accessories are included. Please view our photo set and contact us if you have any questions.
This Kode TIA Model 2001 Time Interval Analyzer is being sold AS-IS for parts or repair. The unit does power on and the front panel illuminates, but the CRT display image is not clear — the display fault is the known issue. It has not been further tested and is not guaranteed functional. The chassis and front panel show cosmetic wear consistent with age and prior lab use, including light scuffing and some yellowing of the beige panels. The rear panel ports (IEEE-488/GPIB, ext printer, 10 MHz output, video out, and AC inlet) are present and visually intact. No manuals or accessories are included. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Kode |
Model: |
Model 2001 |
MPN: |
150-100 |
Type: |
Time Interval Analyzer |
SKU: |
11753 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Unit powers on but CRT display image is not clear. Sold AS-IS for parts or repair. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Portable with Carry Handle |
Power Requirements: |
115/230V AC, 50/60Hz, 2A |
Application: |
Disk and magnetic tape drive design, test, and troubleshooting |
Measurement Type: |
Time Interval, Jitter, Peak Shift, Margin |
Interface: |
IEEE-488 (GPIB) |
Output - Reference: |
10 MHz Output |
Output - Video: |
Video Out (rear panel) |
Output - Printer: |
Ext Printer port (rear panel) |
Display Type: |
Built-in CRT |
Inputs: |
Multiple BNC inputs on right side panel |
Data Stream Type: |
Transparent data streams |
Manufacturer Division: |
Kode, a division of Orbatix |
Condition Notes: |
Kode TIA Model 2001 Time Interval Analyzer sold AS-IS for parts or repair. Powers on and front panel illuminates, but CRT display image is not clear. Not further tested, not guaranteed functional. No manuals or accessories included. |
