Kinney KDH-130 High Vacuum Pump Two-Stage Oil-Sealed Rotary Piston GS Kinney

(No reviews yet) Write a Review
SKU:
43500
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
490.00 LBS
Shipping:
Calculated at Checkout
  • Kinney KDH-130 high vacuum pump – full front view showing teal two-stage pump body with cylindrical oil separator on top and shaft end visible at right, mounted on wooden pallet
  • Kinney KDH-130 rating plate: Model No. KDH-130, Serial No. S45058, GS Kinney Vacuum, A Unit of General Signal, Canton Massachusetts 02021
  • Kinney KDH-130 pump body lower section – SUCTION label, rating plate, significant paint chipping and rust at plug fitting, square recessed port visible
  • Kinney KDH-130 high vacuum pump – three-quarter left-rear view showing large flanged suction inlet port on left side and cylindrical oil separator on top, on pallet
  • Kinney KDH-130 close-up of suction flange area – rusted flanged inlet, copper fitting and small valve, SUCTION tag, caution label on oil separator, yellow dipstick handle

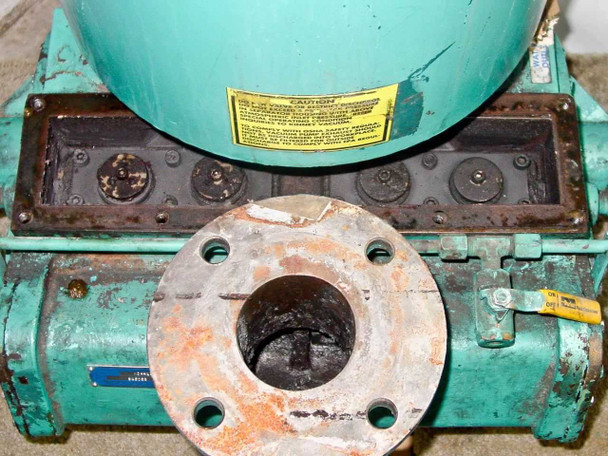

  • Kinney KDH-130 front face close-up – large flanged suction port open showing interior bore, heavy surface rust on flange face, SUCTION label, discharge port at right, yellow dipstick

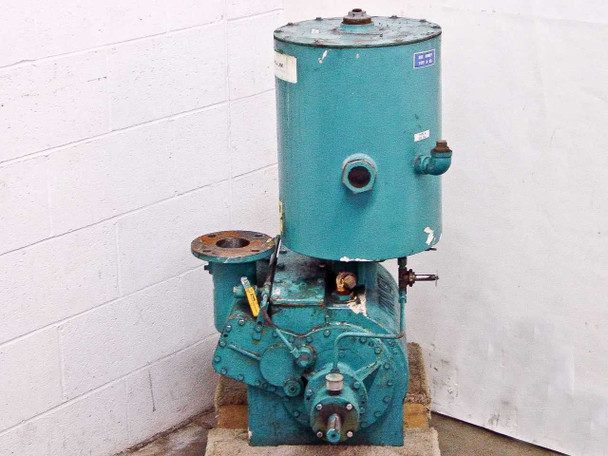

  • Kinney KDH-130 high vacuum pump – right-side view showing flanged port at left, cylindrical oil separator with label on top, discharge port at right, shaft end and pallet

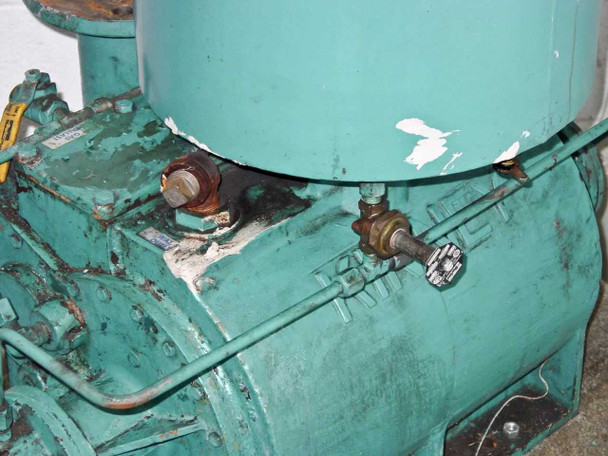

  • Kinney KDH-130 close-up of top junction between oil separator and pump body – surface rust, chipped and peeling paint, two small fittings and valves visible
  • Kinney KDH-130 front view showing KINNEY cast lettering on pump body, cylindrical oil separator with label on top, shaft end at right, mounted on wooden pallet
  • Kinney KDH-130 close-up of front face of cast pump body – KINNEY raised lettering, brass/bronze small valve fitting at center, surface rust and paint wear, shaft ends at both sides
  • Kinney KDH-130 High Vacuum Pump
  • Kinney KDH-130 High Vacuum Pump
  • Kinney KDH-130 High Vacuum Pump
  • Kinney KDH-130 High Vacuum Pump
$1,500.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Kinney KDH-130 High Vacuum Pump Two-Stage Oil-Sealed Rotary Piston GS Kinney

The Kinney KDH-130 is a two-stage oil-sealed rotary piston high vacuum pump manufactured by GS Kinney Vacuum (a unit of General Signal) in Canton, Massachusetts. The KDH series uses a compound two-stage rotary piston design to achieve high-vacuum levels suitable for demanding industrial processes. This unit includes the integral cylindrical oil mist separator/reservoir mounted on top of the pump body, and both the suction and discharge flanged ports are present.

Specifications & What's Included

  • Manufacturer: GS Kinney Vacuum — A Unit of General Signal, Canton, MA
  • Model: KDH-130
  • Type: Two-Stage Oil-Sealed Rotary Piston High Vacuum Pump
  • Nominal Displacement: ~130 CFM
  • Stages: Two (compound/two-stage configuration)
  • Lubrication: Oil-sealed with integral cylindrical oil mist separator/reservoir on top
  • Suction Port: Large flanged inlet (visible in photos; flange face shows heavy surface rust)
  • Discharge Port: Flanged outlet on opposite end
  • Small auxiliary fittings and valves present on pump body
  • Shaft extends from both ends of the pump body (motor not included)
  • Mounted on a wooden shipping pallet
  • No motor, no drive coupling, no accessories included — pump assembly only

Applications

The Kinney KDH series two-stage rotary piston pumps are industrial high-vacuum pumps used as primary (roughing) or backing pumps in a wide range of vacuum applications. They were commonly found as the backbone vacuum source in vacuum furnaces, metallurgical heat-treatment systems, vacuum coating and physical vapor deposition (PVD) chambers, freeze-drying systems, and chemical process equipment requiring sustained high vacuum. The KDH-130's ~130 CFM displacement makes it suited for evacuating large chambers quickly before switching to a diffusion pump or turbomolecular pump for ultra-high vacuum. Kinney Vacuum, later operating as a unit of General Signal, was one of the leading U.S. manufacturers of industrial vacuum equipment from the mid-20th century through the 1990s, and their pumps remain in service today in facilities that maintain legacy vacuum systems. Rebuilt units and replacement parts (seals, vanes, bearings) are still available through vacuum equipment service companies.

Condition: For Parts or Not Working
This Kinney KDH-130 High Vacuum Pump is being sold as-is for parts or repair. The photos show considerable cosmetic wear throughout: heavy surface rust on the suction flange face and bore, significant paint chipping and peeling across the pump body and casings, and rust at several fittings. The pump body and oil separator appear structurally intact with no obvious cracks or broken castings visible. The unit has not been tested or run at our facility, and no functionality is guaranteed. It is sold strictly as-is with no warranty of working condition. Please review all photos carefully and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Kinney Vacuum
Model:
KDH-130
MPN:
KDH-130
Type:
Two-Stage Oil-Sealed Rotary Piston High Vacuum Pump
SKU:
43500
Manufacturer:
GS Kinney Vacuum (A Unit of General Signal)
Country/Region of Manufacture:
United States
Pump Mechanism:
Two-Stage Rotary Piston (Oil-Sealed)
Nominal Displacement:
~130 CFM
Vacuum Type:
High Vacuum
Lubrication:
Oil-Sealed
Number of Stages:
2
Suction Port:
Large Flanged Inlet (see photos for size)
Oil Separator:
Integral cylindrical oil mist separator/reservoir on top
Form Factor:
Floor-Standing Industrial
Seller Notes:
Pump unit only — no motor included. Freight shipping required.
Compatible With:
Vacuum furnaces, coating systems, freeze dryers, chemical process
Application:
Industrial High Vacuum — coating, furnace, freeze drying, process
Condition Notes:
Kinney KDH-130 High Vacuum Pump sold as-is for parts or repair. Heavy surface rust on suction flange and body, significant paint chipping throughout. Not tested; no functionality guaranteed. Please view photos and contact us with questions.
