Kanthal AB Superthal 2" Tube Furnace Body w/ Thermocouple No Element
This is a Kanthal AB Superthal 2-inch tube furnace body — the complete cylindrical furnace shell and insulation assembly, sold without a heating element or temperature controller. The Superthal series is Kanthal's line of compact, high-temperature tube furnace modules designed to deliver concentrated, focused heat via a resistance wire spiral element. This unit is the housing and insulation assembly only; a replacement spiral heating element and a separate controller are both required before it can be put back into service.
Specifications & What's Included
- Brand: Kanthal AB, Hallstahammar, Sweden
- Series: Superthal
- Tube bore: 2 in nominal
- Overall dimensions: approximately 14.75 × 12.5 × 12.5 in
- Mounting arm: 12 in long × 1.25 in wide
- Outer insulation diameter: 4.25 in
- Inner insulation diameter: 2.25 in

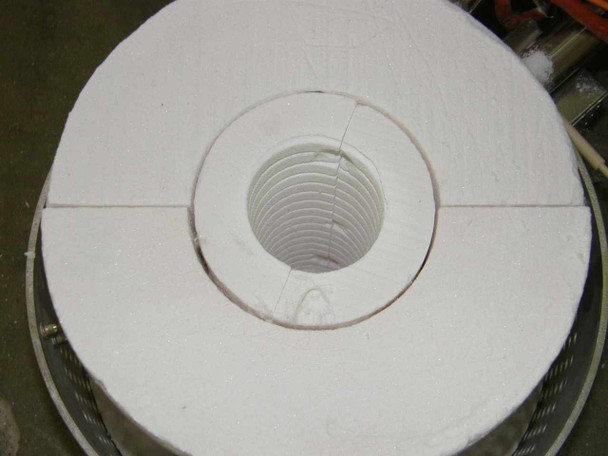

- End cap insulation rings: 2 ceramic fiber rings + ceramic fiber blanket, top and bottom
- End cap OD: 12.25 in; end cap ID: 1.5 in
- Shell construction: perforated stainless steel cylinder on stainless mounting bracket

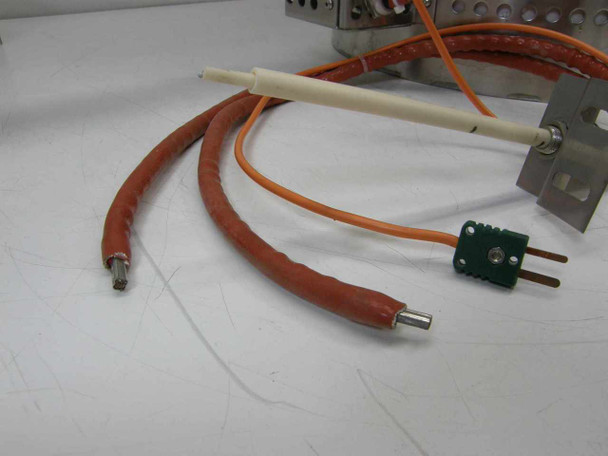

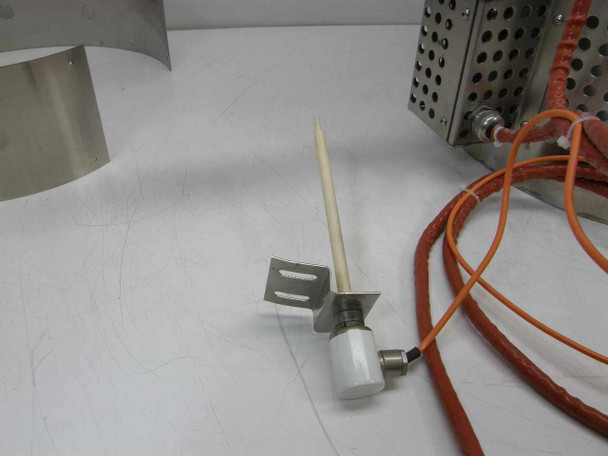

- Thermocouple assembly included: ceramic-sheathed probe on stainless bracket with orange high-temperature silicone lead wires and green Type-K miniature connector

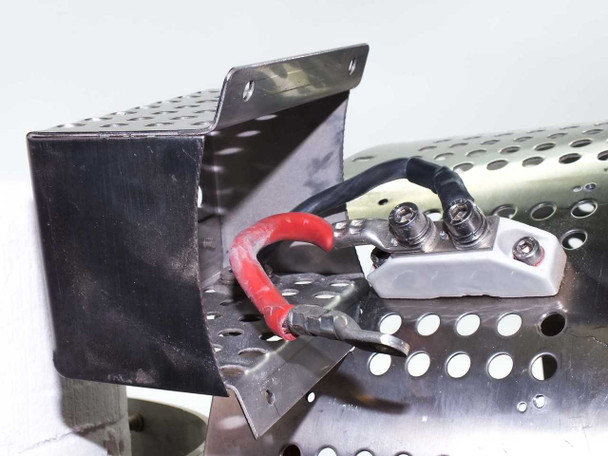

- Terminal block: present on shell with stud terminals
- Heating element: NOT included — requires a spiral resistance element approximately 2.5 in OD × 9 in height, ~1.75 revolutions per inch
- Temperature controller: NOT included — required for operation
- Ceramic end insulation ring shows a hairline crack (visible in photos)
Applications
Superthal tube furnaces from Kanthal AB are used wherever a compact, concentrated heat source is needed around a tube or cylindrical workpiece. Common applications include crystal growth, glass tube processing, semiconductor substrate annealing, sintering of small ceramic or metal parts, and dental porcelain firing. Kanthal's Superthal modules have been widely used in electronics manufacturing, laboratory research, and specialty glass production. The open-ended cylindrical format allows a process tube to pass through the furnace zone, making them a standard building block in custom tube furnace assemblies and benchtop research setups. A buyer acquiring this body to restore or build a furnace would need to source a compatible Kanthal Superthal spiral resistance heating element and a suitable PID temperature controller.
This Kanthal AB Superthal 2" tube furnace body is being sold as-is for parts or restoration. It has no heating element or temperature controller — both are required before the unit can be operated. The furnace shell, insulation rings, ceramic fiber end blankets, mounting arm, and thermocouple assembly are all present and appear intact. The ceramic insulation end ring shows a hairline crack visible in photos, consistent with age and prior use. The perforated stainless steel cylindrical housing is structurally intact with normal surface wear. Terminal block and wiring connections are present. Please view our full photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Kanthal AB |
Model: |
Superthal |
MPN: |
Superthal |
Type: |
Tube Furnace Body / Shell Assembly |
SKU: |
35836 |
Seller Notes: |
Includes thermocouple assembly and insulation rings/blankets. No heating element or controller. |
Country/Region of Manufacture: |
Sweden |
Form Factor: |
Benchtop with Mounting Arm |
Tube Bore Diameter: |
2 in (Inner Insulation ID: 2.25 in) |
Overall Dimensions: |
14.75 x 12.5 x 12.5 in |
Mounting Arm: |
12 in long x 1.25 in wide |
Outer Insulation Diameter: |
4.25 in |
Inner Insulation Diameter: |
2.25 in |
End Cap Insulation OD: |
12.25 in |
End Cap Insulation ID: |
1.5 in |
Insulation Components: |
2 insulating rings + ceramic fiber blanket, top and bottom |
Required Heating Element (not included): |
Spiral, ~2.5 in OD, ~9 in height, ~1.75 rev/in |
Thermocouple: |
Included — ceramic-sheathed with green Type-K miniature connector |
Shell Construction: |
Perforated stainless steel cylinder with mounting bracket |
Application: |
Electronics, glass, dental, and laboratory tube processing |
Compatible With: |
Superthal spiral resistance heating elements |
As-Is Notes: |
No heating element or controller — required for operation |
Condition Notes: |
Kanthal AB Superthal 2" tube furnace body sold as-is for parts — no heating element or controller. Shell, insulation rings, blankets, mounting arm, and thermocouple included. Ceramic end ring shows hairline crack. No functionality guarantee. |
