JVC RM-G800U Editing Control Unit Edit-Desk Series 12-Pin VTR Controller

JVC RM-G800U Editing Control Unit Edit-Desk Series 12-Pin VTR Controller

The JVC RM-G800U is a professional editing control unit designed for use with JVC's Edit-Desk series VTRs. It provides frame-accurate SMPTE timecode-based editing with assemble and insert edit modes, allowing editors to control a player and a recorder deck from a single desktop console. The unit features a large jog/shuttle dial for precise tape navigation and a full complement of transport and edit-point controls.

Specifications & What's Included

• Model: JVC RM-G800U (Editing Control Unit)
• Power: DC 12V, 6.5W
• Manufacturer: Victor Company of Japan, Ltd. (JVC) — Made in Japan
• Edit Modes: Assemble, Video/Hi-Fi, Audio 1, Audio 2, Insert
• Timecode Display: Hour, Minute, Second, Frame (SMPTE)
• Transport Controls: REC, REW, PLAY, STILL, FF, SEARCH, REVIEW, PREVIEW, AUTO EDIT, ALL STOP
• Entry Menu: Cancel, GoTo, In, Entry, Out

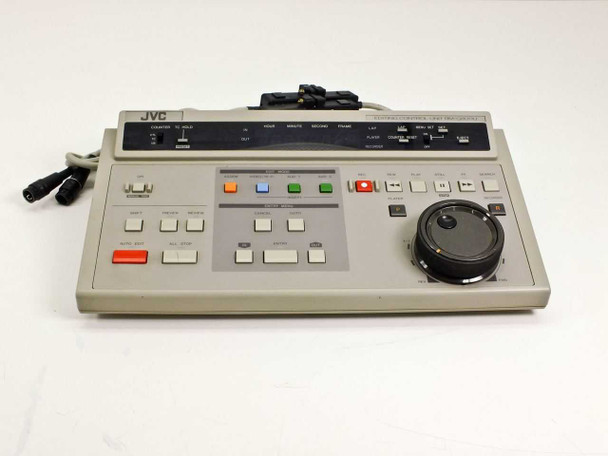

• Jog/Shuttle dial with REV/FWD range markings

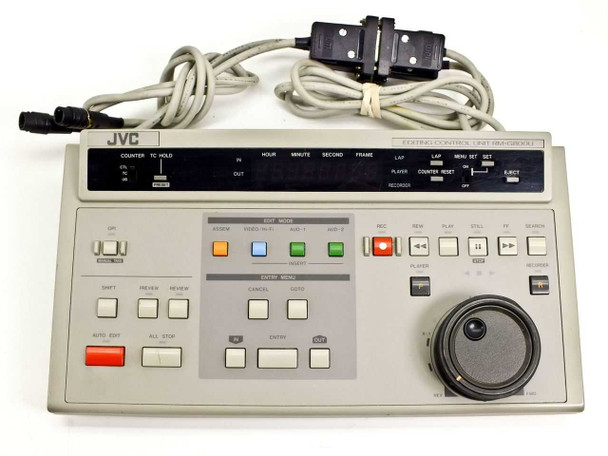

• Front: TC HOLD, Counter Reset, Eject, Lap, Menu Set controls

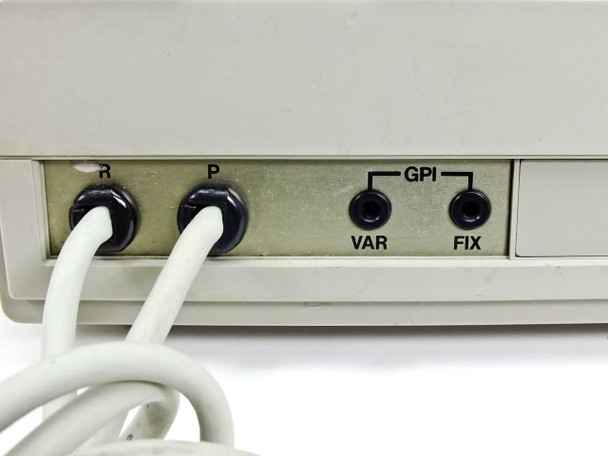

• Rear ports: R and P (player/recorder cable connections), GPI VAR and GPI FIX ports
• Connectors: 12-pin proprietary JVC flat connectors for player and recorder decks
• Includes: Two 12-pin flat cable assemblies (one connector housing is coming apart — see photos) and one additional round multi-pin cable

Applications

The RM-G800U was part of JVC's Edit-Desk product line, a family of professional and prosumer S-VHS and VHS editing systems popular in broadcast, cable access, corporate video, and educational production facilities during the late 1980s and 1990s. In a typical Edit-Desk setup, the RM-G800U sits between a player deck and a recorder deck, letting an editor set precise in and out points using SMPTE timecode and then execute automatic assemble or insert edits. The GPI (General Purpose Interface) ports allowed it to trigger or synchronize with external equipment such as character generators or switchers. Systems like this were standard tools in linear video post-production before non-linear editing on computers became dominant in the mid-to-late 1990s. Today these controllers are sought by users maintaining legacy JVC Edit-Desk VTR systems for format preservation, tape transfer, and archival work.
