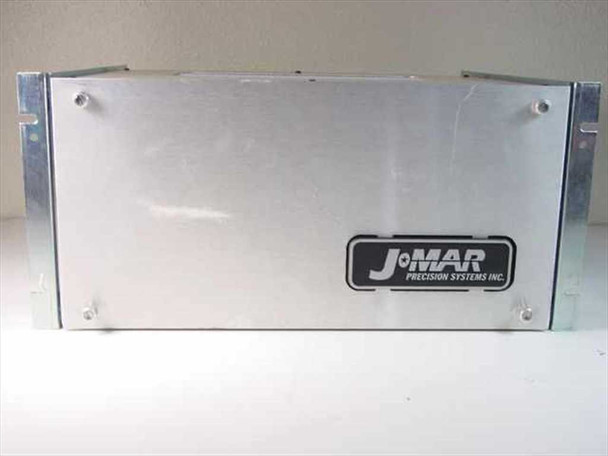

Jomar Precision Systems 010-2734-001 Rev F 4-Axis Motion Controller Rackmount
Four-axis rackmount motion controller system manufactured in May 1999. Provides motor control, closed-loop feedback, and joystick interface capability for multi-axis positioning applications.
Specifications & What's Included
- 4-axis motor output channels (A, B, C, D)

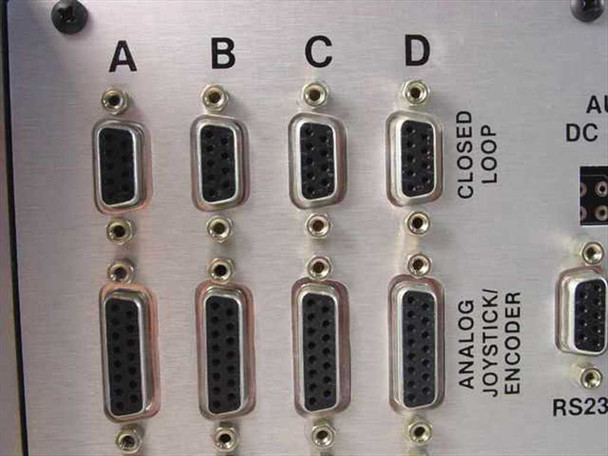

- 4 closed-loop feedback channels with DB15 connectors
- 4 analog joystick/encoder input channels
- Digital joystick interface via high-density rear connector
- 4 external driver ports (DB9)
- IEEE (GPIB), RS-232, and AUX DC output interfaces
- 120V, 50/60Hz operation; 2.5A fuse

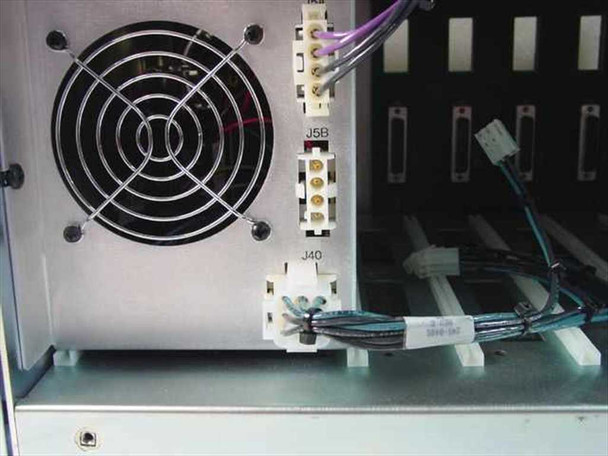

- Rear-mounted exhaust fan cooling

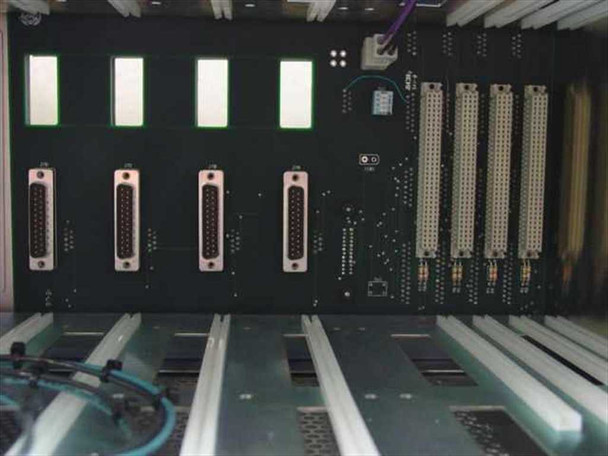

- Internal multi-slot card cage for expansion
Applications
Four-axis motion controllers were used in precision manufacturing, semiconductor equipment, test automation, and telecom infrastructure systems requiring coordinated multi-axis positioning. This revision was common in systems requiring GPIB or RS-232 control interfaces. Typically integrated into larger equipment suites for repeatable positioning and motion sequencing tasks.
Condition: Used

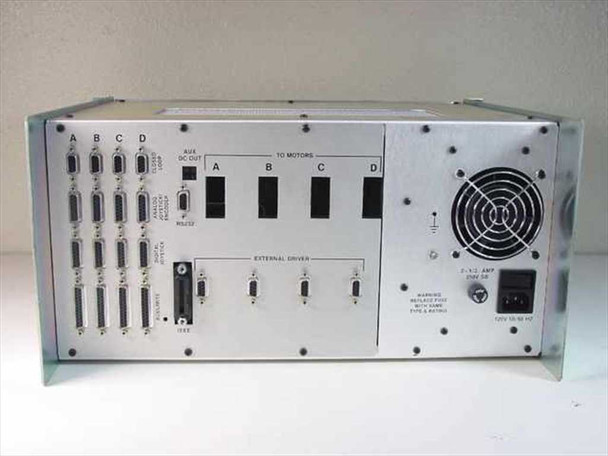

This Jomar Precision Systems 010-2734-001 Rev F 4-axis rackmount motion controller has been inspected and appears to be in good used condition. The aluminum enclosure shows light surface wear consistent with prior rack installation, but no significant damage is visible. All rear-panel connectors — including the closed-loop, analog joystick/encoder, digital joystick, IEEE, RS-232, external driver, and motor output interfaces — appear intact and undamaged. The internal card cage and wiring harness look complete and in order. Please view our photo set and contact us if you have any questions.
This Jomar Precision Systems 010-2734-001 Rev F 4-axis rackmount motion controller has been inspected and appears to be in good used condition. The aluminum enclosure shows light surface wear consistent with prior rack installation, but no significant damage is visible. All rear-panel connectors — including the closed-loop, analog joystick/encoder, digital joystick, IEEE, RS-232, external driver, and motor output interfaces — appear intact and undamaged. The internal card cage and wiring harness look complete and in order. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Jomar Precision Systems |
Model: |
010-2734-001 |
MPN: |
010-2734-001 |
Revision: |
Rev F |
Manufacture Date: |
May 1999 |
Type: |
4-Axis Rackmount Motion Controller System |
SKU: |
30940 |
Form Factor: |
Rackmount |
Number of Axes: |
4 (A, B, C, D) |
Motor Output Channels: |
4 — To Motors A, B, C, D |
Closed Loop Channels: |
4 — A, B, C, D (DB15 connectors) |
Analog Joystick/Encoder Channels: |
4 — A, B, C, D (DB15 connectors) |
Digital Joystick Interface: |
Yes — high-density connector on rear panel |
External Driver Ports: |
4 DB9 connectors |
Interface Type: |
IEEE (GPIB), RS-232, AUX DC Out |
AUX DC Output: |
Yes — terminal block on rear panel |
Power Requirements: |
120V, 50/60Hz (per rear panel label) |
Fuse: |
2.5A (per rear panel label) |
Cooling: |
Rear-mounted exhaust fan |
Internal Expansion: |
Multi-slot card cage visible internally |
Condition: |
Used – Inspected and Pulled from Working Environment |
Seller Notes: |
Unit only; no additional accessories observed. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Jomar Precision Systems 010-2734-001 Rev F 4-axis rackmount motion controller. Inspected, good used condition. Light surface wear on enclosure. All rear connectors appear intact. No damage noted. |
