Description
Jolt Wire Assembly Internal Wiring Harness Molex Connector Ring Terminal Leads

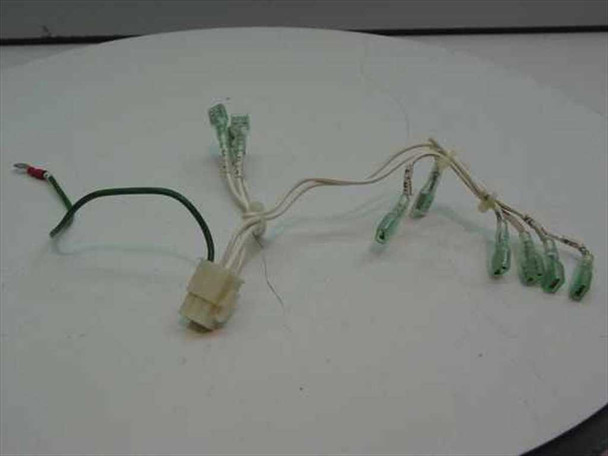

Internal cable assembly for Jolt-branded industrial and arcade equipment. Features a white 8-position Molex multi-pin connector, individually labeled leads with ring terminal ground connection.
Specifications & What's Included
- Type: Internal Wiring Harness / Cable Assembly
- Connector: Molex Multi-Pin (white, 8-position)
- Leads: Multiple individually labeled (S1, S2, S3, 1A, 3A, etc.)

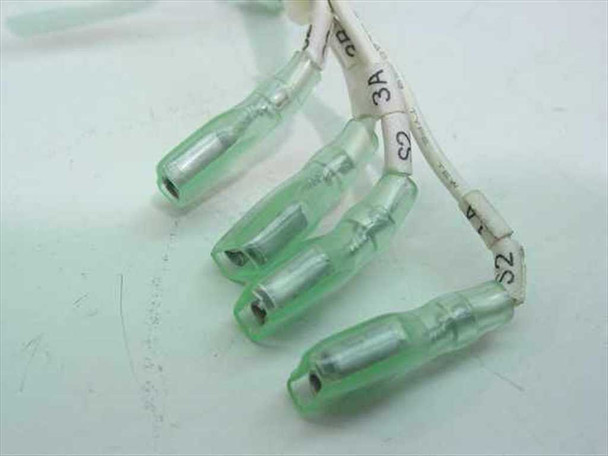

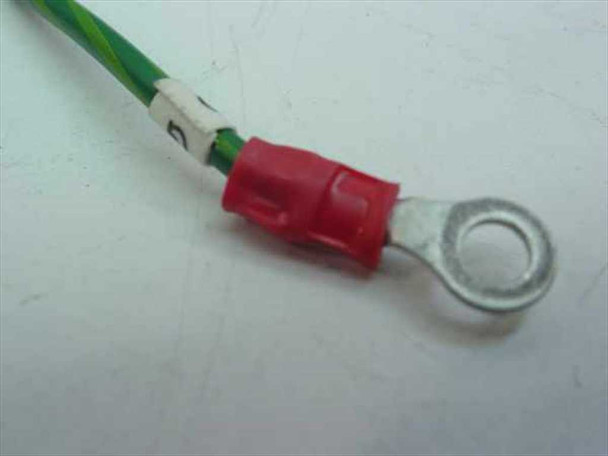

- Terminal Types: Green insulated female spade terminals; red ring terminal (ground)
- Wire Colors: White multi-conductor leads; green/yellow ground wire
- Identification: Individual leads labeled with white heat-shrink markers
- SKU: 20731
Applications
This harness type was used in Jolt-brand arcade cabinets, vending machines, and industrial equipment from the 1980s-1990s. The Molex connector and labeled leads allow connection between power distribution boards and secondary circuits. Harnesses like this typically handle signal and power distribution within machine housings where space constraints require compact, pre-assembled solutions.
Condition: Used
This Jolt Wire Assembly internal wiring harness has been inspected and is in good condition. The white multi-pin Molex connector, individually labeled leads, and ring terminal ground all appear intact with no broken pins, cut wires, or damaged insulation visible. The green spade terminals are present and in good shape. Normal light handling marks consistent with prior use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Jolt Wire Assembly internal wiring harness has been inspected and is in good condition. The white multi-pin Molex connector, individually labeled leads, and ring terminal ground all appear intact with no broken pins, cut wires, or damaged insulation visible. The green spade terminals are present and in good shape. Normal light handling marks consistent with prior use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Unbranded |
Model: |
Jolt Wire Assembly |
MPN: |
Jolt Wire Assembly |
Type: |
Internal Wiring Harness / Cable Assembly |
SKU: |
20731 |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Wire harness only; no additional accessories included |
Connector Type: |
Molex Multi-Pin (white, 8-position) + Ring Terminal |
Number of Leads: |
Multiple individually labeled leads (S1, S2, S3, 1A, 3A, etc.) |
Terminal Type: |
Green insulated female spade terminals; red ring terminal (ground) |
Wire Colors: |
White multi-conductor leads; green/yellow ground wire |
Label / Identification: |
Individual leads labeled with white heat-shrink markers |
Compatible With: |
Jolt-branded or compatible industrial/arcade/vending equipment |
Form Factor: |
Internal Cable Assembly |
Condition Notes: |
This Jolt Wire Assembly has been inspected and is in good condition. Molex connector, labeled leads, and ring terminal ground all appear intact with no broken pins or damaged insulation visible. |
