Johnson Matthey

Johnson Matthey HP-100 Hydrogen Purifier Cell Removed For Parts MOCVD

(No reviews yet) Write a Review
SKU:
52250
MPN:
HP-100
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
31.00 LBS
Shipping:
Calculated at Checkout

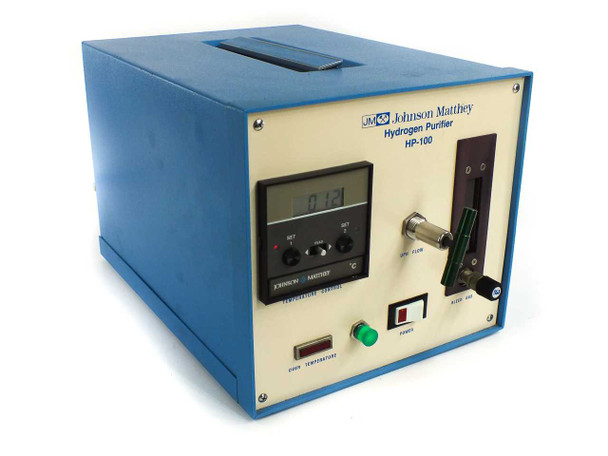

  • Johnson Matthey HP-100 Hydrogen Purifier front panel — temperature controller display reading 013, flow meter, POWER rocker switch, green indicator light, and BLEED GAS port

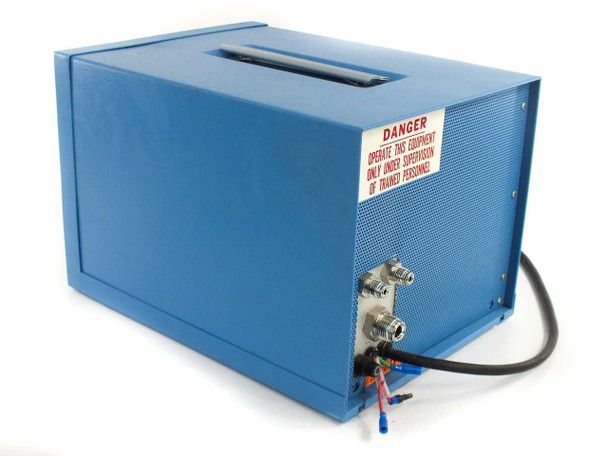

  • Johnson Matthey HP-100 Hydrogen Purifier right side and rear — blue enclosure with carry handle, DANGER warning label, FEED and PURE gas compression fittings, and power cable

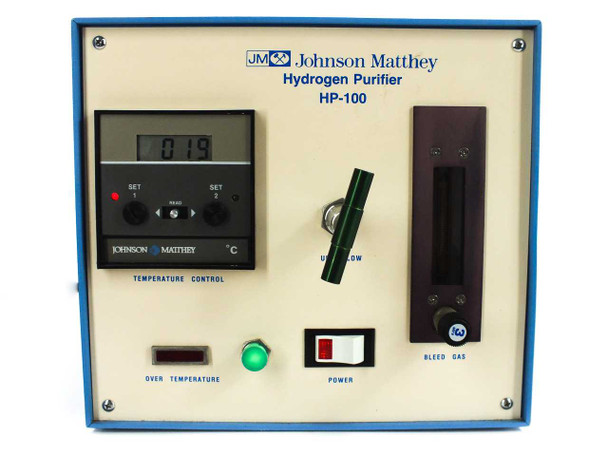

  • Johnson Matthey HP-100 Hydrogen Purifier front panel close-up — United Electric temperature controller showing 019°C, UP/DOWN flow knob, BLEED GAS slot, OVER TEMPERATURE indicator, and POWER switch
  • Johnson Matthey HP-100 Hydrogen Purifier rear panel — perforated blue enclosure, DANGER label, FEED and PURE gas fittings panel, and wiring harness

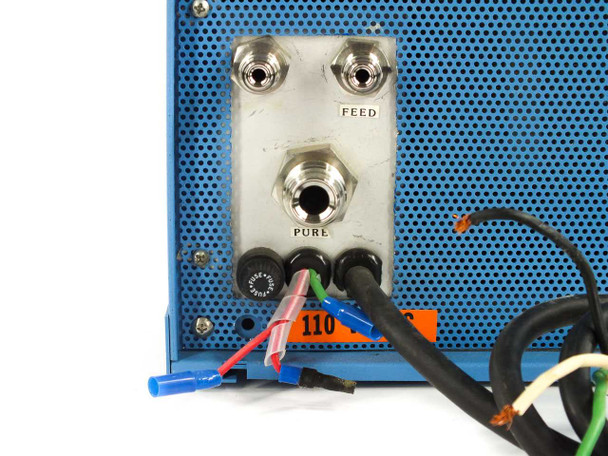

  • Johnson Matthey HP-100 rear gas connection panel close-up — FEED and PURE stainless compression fittings, 110V voltage label, and multi-conductor wiring harness

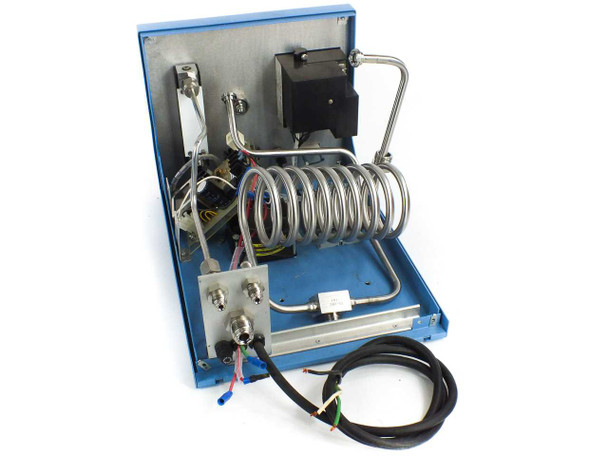

  • Johnson Matthey HP-100 interior with top cover open — stainless steel coiled tubing, transformer, plumbing manifold, and wiring visible; main palladium cell absent
  • United Electric Controls D932C0012 temperature controller label — J/TC probe -15 to 650°C, 115VAC line voltage, Output Mode 1: 10A/115VAC-5A/230VAC, Output Mode 2: 5A/115VAC-4A/230VAC, Serial No. 8939
$700.00
Was: $1,400.00
Current Stock: 1

Sold Out

Description

Johnson Matthey HP-100 Hydrogen Purifier Cell Removed For Parts MOCVD

Benchtop hydrogen purifier designed for semiconductor process gas applications. Uses palladium diffusion membrane technology to separate and purify hydrogen streams in MOCVD and CVD systems.

Specifications & What's Included

  • Model: HP-100 (Johnson Matthey)
  • Power: 110VAC, benchtop form factor (18" x 11" x 11")
  • Temperature Controller: United Electric Controls D932C0012 (J/TC, -15 to 650°C)
  • Gas Connections: FEED and PURE ports with compression fittings on rear panel
  • Main palladium diffusion cell removed — not included

Applications

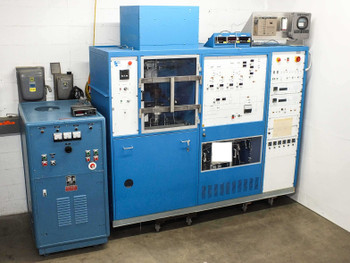

HP-100 units are used to purify hydrogen gas streams in MOCVD and CVD reactor systems for semiconductor epitaxy and deposition processes. This unit was pulled from a Thomas Swan EPITOR MOCVD Epsilon II Quartz Reactor system. Palladium-based hydrogen purifiers are standard in semiconductor manufacturing where ultra-high purity hydrogen gas is required.

Condition: For Parts or Not Working
This Johnson Matthey HP-100 Hydrogen Purifier is being sold AS-IS for parts or repair. The main palladium diffusion cell has been removed from the unit and is not included. The purifier does power on and the front-panel indicators illuminate, as shown in the photo set, but it has not been tested beyond that and no further functionality is guaranteed. This unit was pulled from a Thomas Swan EPITOR R&D MOCVD Epison II Quartz Reactor. The blue steel enclosure shows normal wear consistent with lab use; the front panel controls, flow meter, and temperature controller are intact. The interior coiled stainless tubing, transformer, and plumbing manifold are visible and present. Gas fittings (FEED and PURE) on the rear panel appear intact. Given the missing cell, this unit is suitable only for parts, repair, or as a housing/control chassis for restoration. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Johnson Matthey
Model:
HP-100
MPN:
HP-100
Type:
Hydrogen Purifier
SKU:
52250
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Main palladium diffusion cell removed. Unit powers on. Sold as-is for parts.
Country/Region of Manufacture:
United Kingdom
Form Factor:
Benchtop
Power Requirements:
110VAC
Temperature Controller Brand:
United Electric Controls
Temperature Controller Model:
D932C0012
Temperature Controller Probe:
J/TC, -15 to 650°C
Temperature Controller Input Voltage:
115VAC
Temperature Controller Output Mode 1:
10A/115VAC, 5A/230VAC
Temperature Controller Output Mode 2:
5A/115VAC, 4A/230VAC
Gas Connections:
FEED and PURE ports (compression fittings, rear panel)
Application:
Hydrogen purification for MOCVD, CVD, semiconductor process gas
Compatible With:
Thomas Swan EPITOR MOCVD Epison II Quartz Reactor
Overall Dimensions:
18" x 11" x 11"
Serial Number (Controller):
8939
Condition Notes:
Johnson Matthey HP-100 Hydrogen Purifier sold AS-IS for parts. Main palladium cell removed — not included. Unit powers on but is untested beyond that. Pulled from a Thomas Swan MOCVD reactor. No functionality guaranteed.
