Jefferson Electric

Jefferson Electric 416-1251-000 Buck Boost Transformer 1kVA 120/240V 16/32V 1Ph

(No reviews yet) Write a Review
SKU:
53330
MPN:
416-1251-000
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
24.00 LBS
Shipping:
Calculated at Checkout
  • Jefferson Electric 416-1251-000 Buck Boost Transformer — front view showing nameplate label and asset tag

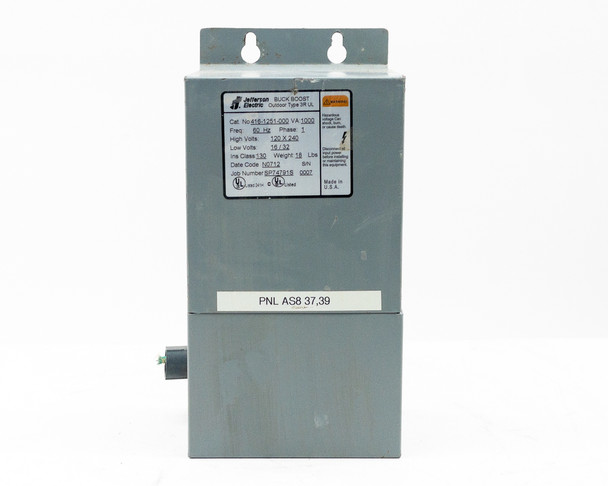

  • Jefferson Electric 416-1251-000 Buck Boost Transformer — front-left angle view showing nameplate and conduit knockouts
  • Jefferson Electric 416-1251-000 nameplate close-up showing Cat No, voltage, phase, insulation class, date code, and UL listings
  • Jefferson Electric 416-1251-000 Buck Boost Transformer — top mounting bracket detail showing surface rust and paint chips on keyhole slots

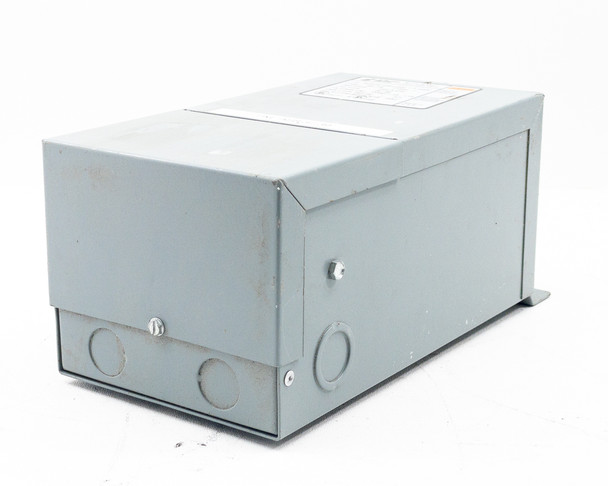

  • Jefferson Electric 416-1251-000 Buck Boost Transformer — right-side and bottom view showing conduit entry knockouts

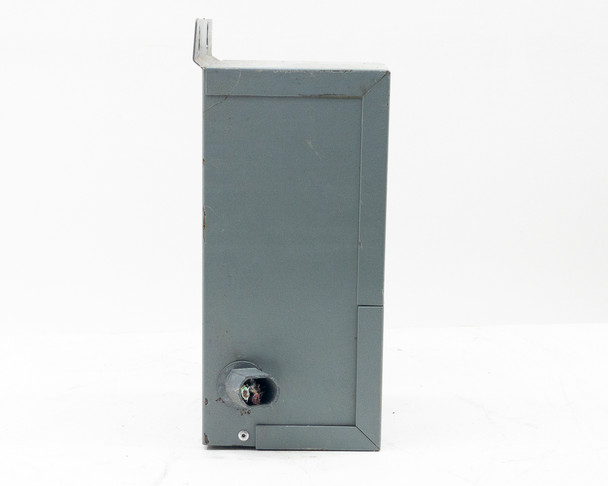

  • Jefferson Electric 416-1251-000 Buck Boost Transformer — left-side view showing wiring access port with lead wires visible
$175.00
Was: $350.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Jefferson Electric 416-1251-000 Buck Boost Transformer 1kVA 120/240V 16/32V 1Ph

Single-phase buck boost transformer rated 1 kVA. Converts between 120/240V primary and 16/32V secondary at 60 Hz. Outdoor-rated NEMA 3R enclosure, UL and cUL listed, Class 130 insulation.

Specifications & What's Included

  • Power Rating: 1 kVA (1000 VA)
  • Primary Voltage: 120/240V
  • Secondary Voltage: 16/32V
  • Phase: Single Phase, 60 Hz
  • Enclosure: Outdoor Dry Type, NEMA 3R, wall/surface mount
  • Certifications: UL Listed, cUL Listed
  • Manufacturer: Jefferson Electric (USA)
  • Unit only -- no accessories included

Applications

Commonly used in telecommunications, networking, and industrial control systems requiring low-voltage step-down conversion.

Condition: Used
Jefferson Electric 416-1251-000 1kVA Buck Boost Transformer in good used condition. Decommissioned from a networking company relocation, not due to failure. Enclosure sound; mounting bracket shows light surface rust. Nameplate intact. Please note: We have multiple units in stock -- yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Jefferson Electric
Model:
416-1251-000
MPN:
416-1251-000
SKU:
53330
Condition:
Used – Inspected
Seller Notes:
Unit only — no accessories included.
Country of Manufacture:
USA
Form Factor:
Wall/Surface Mount, Outdoor Enclosure
Power Rating:
1 kVA (1000 VA)
Voltage Rating (High):
120/240V
Voltage Rating (Low):
16/32V
Phase:
Single Phase
Frequency:
60 Hz
Enclosure Type:
Outdoor Dry Type, NEMA 3R UL Listed
Insulation Class:
Class 130
Transformer Type:
Buck Boost
Date Code:
N0712
Job Number:
SP74791S 0007
Certifications:
UL Listed, cUL Listed
Condition Notes:
Jefferson Electric 416-1251-000 1kVA Buck Boost Transformer in good used condition. Decommissioned from a networking company relocation, not due to failure. Enclosure sound; mounting bracket shows light surface rust. Nameplate intact.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
