Description
JDL 950TH Omniplotter 950 Wide Format Plotter 23" Color Ribbon Japan Digital Lab
This is a wide-format dot matrix plotter manufactured by Japan Digital Laboratory in 1990. It accepts 23-inch roll paper and produces color output using a pen plotter mechanism with included color ribbon.
Specifications & What's Included
- Model: JDL 950TH / JDL-950
- Print Technology: Dot Matrix / Pen Plotter
- Paper Width: 23 inches
- Memory: 2MB
- Interfaces: Parallel (Centronics) and Serial
- Power: AC 115V, 3A, 50/60Hz

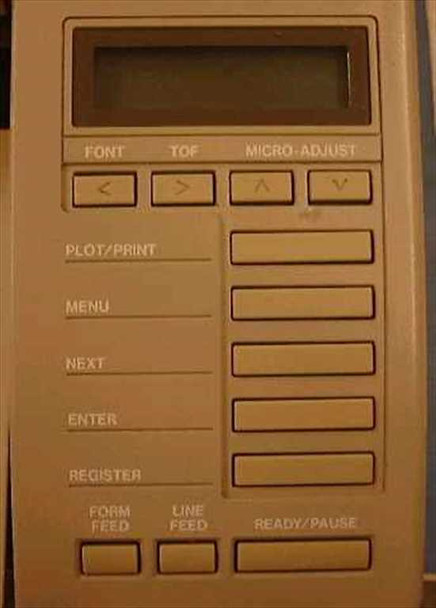

- Front Panel: LCD display with PLOT/PRINT, FORM FEED, MENU, and other controls
- Color ribbon included
Applications
Wide-format plotters of this type were used with CAD/CAM systems and legacy technical workstations for engineering drawings, architectural plans, and technical schematics. The JDL 950TH connects via parallel or serial interface to compatible drafting software and controllers. These devices were common in engineering and design departments requiring large-format color output on roll paper.
Condition: For Parts or Not Working
This JDL 950TH Omniplotter 950 wide format plotter is being sold as-is for parts or repair. The condition block in the original listing designates it as For Parts or Not Working; functionality has not been confirmed and it is not guaranteed operational. Cosmetically the unit appears to be in reasonable shape based on the photos — the beige housing shows light yellowing and minor surface wear typical of 1990-era equipment, the pen carriage and rail assembly look intact, and the front panel keypad and LCD are present. The color ribbon and paper roll are visible. All sales are final on this item. Please review the full photo set carefully and contact us with any questions before purchasing.
This JDL 950TH Omniplotter 950 wide format plotter is being sold as-is for parts or repair. The condition block in the original listing designates it as For Parts or Not Working; functionality has not been confirmed and it is not guaranteed operational. Cosmetically the unit appears to be in reasonable shape based on the photos — the beige housing shows light yellowing and minor surface wear typical of 1990-era equipment, the pen carriage and rail assembly look intact, and the front panel keypad and LCD are present. The color ribbon and paper roll are visible. All sales are final on this item. Please review the full photo set carefully and contact us with any questions before purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
JDL (Japan Digital Laboratory) |
Model: |
950TH |
MPN: |
950TH |
Secondary Model: |
JDL-950 |
Type: |
Wide Format Dot Matrix Plotter |
SKU: |
12445 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes color ribbon. Sold as-is for parts or repair. |
Country/Region of Manufacture: |
Japan |
Power Requirements: |
AC 115V, 3A, 50/60Hz |
Paper Width: |
23 inches |
Print Technology: |
Dot Matrix / Pen Plotter |
Color: |
Color (Color Ribbon) |
Memory: |
2MB |
Interface Type: |
Parallel (Centronics), Serial |
Form Factor: |
Desktop / Tabletop |
Date of Manufacture: |
March 1990 |
Connectivity: |
Computer, Feed-D, Terminal, Controller ports |
Front Panel Controls: |
LCD display; FONT, TOF, MICRO-ADJUST, PLOT/PRINT, MENU, NEXT, ENTER, REGISTER, FORM FEED, LINE FEED, READY/PAUSE |
Compatible With: |
CAD/CAM drafting systems, legacy workstations |
Media Type: |
Roll paper, 23" wide |
Condition Notes: |
JDL 950TH Omniplotter 950 wide format plotter sold as-is for parts or repair. Functionality not confirmed. Cosmetically shows light age-related yellowing and minor wear. Color ribbon included. Not guaranteed working. |
