JCC 800628 8-Bit ISA I/O Controller Card DB25 Parallel DB9 Serial Ports DOS PC

(No reviews yet) Write a Review
SKU:
34733
MPN:
800628
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

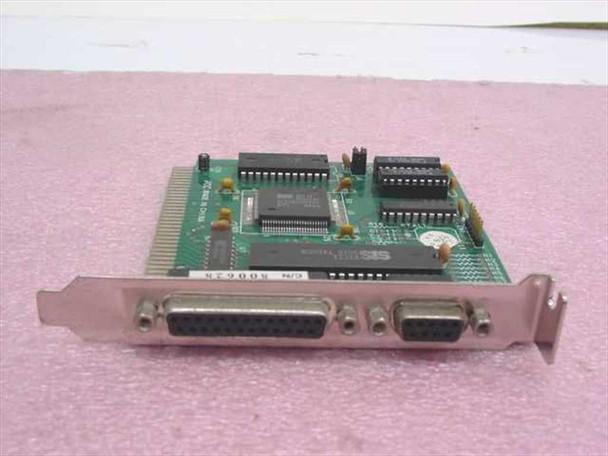

  • JCC 800628 8-bit ISA controller card front view showing DB25 parallel and DB9 serial external ports on bracket
  • JCC 800628 ISA controller card top-side PCB view showing main controller IC, memory chips, and JCC Made in China marking
  • Close-up of JCC 800628 controller card bracket label showing C/N 800628 and VOID IF REMOVED warranty seal
  • JCC 800628 ISA controller card solder-side PCB view showing edge connector and barcode label
$28.00
Was: $60.00
Current Stock: 1

Sold Out

Description

JCC 800628 8-Bit ISA I/O Controller Card DB25 Parallel DB9 Serial Ports DOS PC

An 8-bit ISA expansion card providing parallel and serial port connectivity for legacy DOS-era computers. Adds DB25 parallel and DB9 serial communication interfaces to systems with available ISA slots.

Specifications & What's Included

  • Model: JCC 800628
  • Bus Interface: 8-bit ISA
  • External Ports: DB25 (25-pin parallel), DB9 (9-pin serial)
  • Form Factor: Half-length ISA expansion card
  • Compatible with: DOS-era PCs with 8-bit ISA slot
  • Manufactured: China
  • Includes: Card only, no accessories

Applications

I/O controller cards of this type were used to expand connectivity on older personal computers and industrial systems. Commonly installed in DOS-based machines, early Windows PCs, and CNC/industrial control systems requiring parallel printer and serial device connections. These cards supported legacy peripherals such as dot-matrix printers, modems, and serial instrumentation.

Condition: Used
This JCC 800628 8-bit ISA I/O Controller Card has been inspected and is in good condition. The PCB is clean with no visible damage, cracked traces, or broken components. The bracket-mounted DB25 and DB9 port connectors appear intact. A "VOID IF REMOVED" warranty seal with the C/N 800628 label is present on the bracket. The card shows light handling wear consistent with prior installation and removal from a system. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
JCC
Model:
800628
MPN:
800628
Type:
8-Bit ISA I/O Controller Card
SKU:
34733
Bus Interface:
ISA (8-bit)
External Ports:
DB25 (25-pin parallel), DB9 (9-pin serial)
Port Types:
Parallel (DB25), Serial (DB9)
Form Factor:
Half-Length ISA Expansion Card
Compatible With:
DOS-era PCs with 8-bit ISA slot
Country/Region of Manufacture:
China
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; no accessories included
Condition Notes:
JCC 800628 8-bit ISA I/O controller card. Inspected and in good condition. PCB clean, ports intact, light handling wear from prior use. Card only, no accessories.
View AllClose

Related Products

Related Products

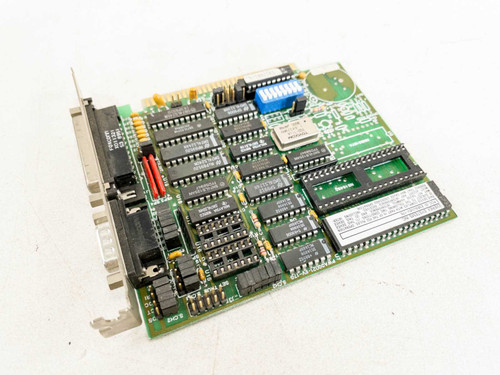

Everex EV-170 PWA00021 8-bit ISA I/O controller card – top component side view showing full PCB layout with ICs and ISA edge connector Everex EV-170 PCB close-up showing Motorola MC1489AN and MC1488P RS-232 line driver chips and PWA00021 EV-170 board marking
