Jaspers Transformatoren 2kVA Single Phase Transformer 208V Primary 120V

Jaspers Transformatoren 2kVA Single Phase Transformer 208V Primary 120V Secondary VE2

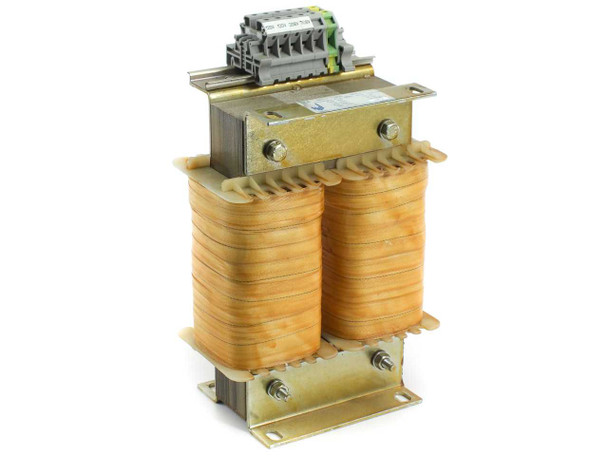

The Jaspers Transformatoren VE2 is a 2 kVA (2000 VA) single-phase step-down transformer designed to convert a 208V AC primary supply to a 120V AC secondary output. Built to EN 61 158-2-1 and CE marked, it is a compact, chassis-mount unit with an open-frame construction (IP00) and a screw terminal block at the top for straightforward wiring.

Specifications & What's Included

• Manufacturer: Jaspers Transformatoren B.V., Maastricht, Netherlands
• Type: VE2
• Art. Nr: 1123.0181
• Power Rating: 2000 VA (2 kVA)
• Primary Voltage: 208V AC
• Secondary Voltage: 120V AC
• Phase: Single Phase
• Frequency: 50/60 Hz
• Ambient Temperature Rating (Ta): 40°C
• Enclosure / IP Rating: IP00 (open frame)
• Standard: EN 61 158-2-1
• Certification: CE
• Terminal Type: Screw terminal block (top-mounted)
• Mounting: Integral chassis mounting feet
• Overall Dimensions: 12.5" x 8" x 6"
• Transformer only — no additional cables or accessories included

Applications

Single-phase step-down transformers in this class are standard components in industrial and commercial electrical systems where equipment designed for a 120V supply must be powered from a 208V distribution circuit — a common requirement in North American three-phase 120/208V wye systems. Typical applications include powering control panels, instrumentation, small motors, lighting circuits, and other single-phase loads from a higher-voltage distribution bus. The VE2 open-frame design suits panel-mount or enclosure installation where the transformer is protected within a larger assembly. Jaspers Transformatoren is a Dutch manufacturer with a long history supplying CE-compliant transformers to European and international industrial markets; this unit's 50/60 Hz rating makes it suitable for both European and North American service.
