Description

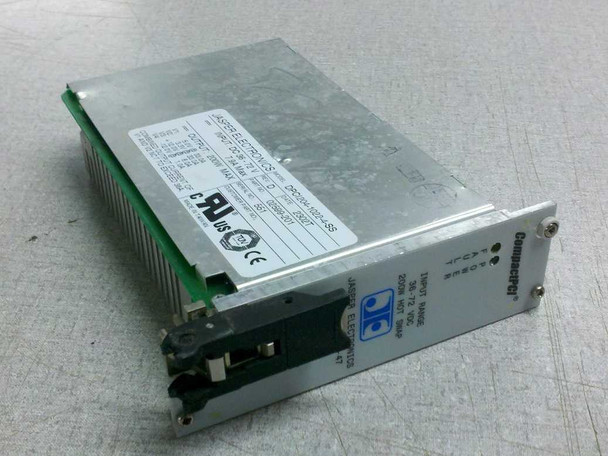

Jasper Electronics DPCI204-1022-4-SS 200W Hot Swap DC-DC Converter CompactPCI
Hot swap DC-DC converter module designed for CompactPCI industrial and telecom systems. Converts input DC power to multiple regulated output voltages for system operation.
Specifications & What's Included
- Model: DPCI204-1022-4-SS (Rev D, Date Code 2302T)
- Input: DC 36–72V @ 7.9A max
- Outputs: 5.0V @ 33.0A, 3.3V @ 33.0A, +12.0V @ 6.0A, −12.0V @ 1.0A (200W max)
- Form Factor: CompactPCI module with backplane connector
- Hot swap capable with fault and power LED indicators
- Certifications: UL, TUV, CE
Applications
CompactPCI DC-DC converters are used in industrial control systems, telecommunications equipment, and military/aerospace platforms where multiple voltage rails are required in compact form factors. This module type typically supports processor boards, storage modules, and peripheral cards in ruggedized cPCI chassis environments.
Condition: For Parts or Not Working
This Jasper Electronics DPCI204-1022-4-SS 200W Hot Swap DC-DC Converter is being sold as-is for parts or repair. We are unable to test this unit, so its functionality cannot be confirmed. It is not guaranteed to be working. The module appears physically intact with normal surface wear; the rating label is clean and fully legible. Please view our photo set and contact us if you have any questions.
This Jasper Electronics DPCI204-1022-4-SS 200W Hot Swap DC-DC Converter is being sold as-is for parts or repair. We are unable to test this unit, so its functionality cannot be confirmed. It is not guaranteed to be working. The module appears physically intact with normal surface wear; the rating label is clean and fully legible. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Jasper Electronics |
Model: |
DPCI204-1022-4-SS |
MPN: |
02599-201 |
Secondary Model: |
DPCI204-1022-47 |
Type: |
Hot Swap DC-DC Converter |
SKU: |
25580 |
Form Factor: |
CompactPCI Module |
Input Voltage: |
DC 36-72 V |
Input Current: |
7.9A Max |
Output Power: |
200W Max |
Output V1: |
5.0V @ 33.0A |
Output V2: |
3.3V @ 33.0A |
Output V3: |
+12.0V @ 6.0A |
Output V4: |
-12.0V @ 1.0A |
Combined Output Limit: |
V1 and V2 combined not to exceed 38A |
Revision: |
Rev D |
Date Code: |
2302T |
Hot Swap: |
Yes |
Bus Type: |
CompactPCI (cPCI) |
Connector Type: |
CompactPCI backplane connector |
Status Indicators: |
Fault LED, Power LED |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold as-is for parts or repair; cannot be tested |
Country/Region of Manufacture: |
Taiwan |
Certifications: |
UL, TUV, CE |
Review Status: |
Auto-Approved (needs review) 2026-07-04 |
Condition Notes: |
Jasper Electronics DPCI204-1022-4-SS 200W DC-DC Converter sold as-is for parts or repair. Cannot be tested; functionality not guaranteed. Physically intact with normal wear. |
