Description

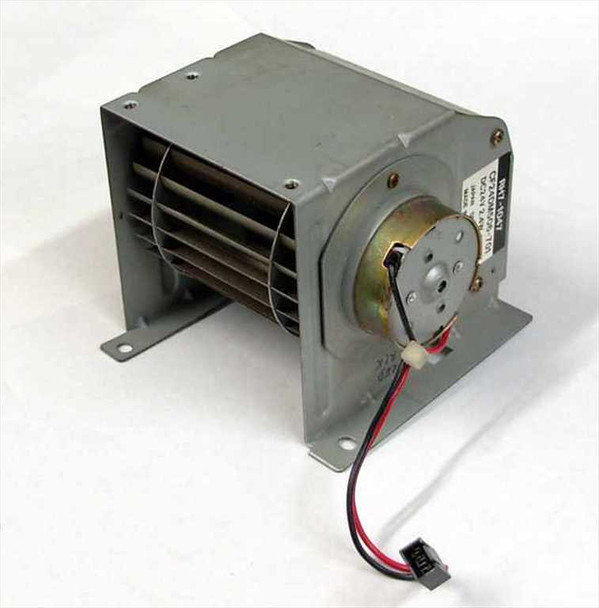

Japan Servo RH7-1047 CF24DM506-701 Vortex Blower 24VDC 2.4W Tangential Fan
The Japan Servo RH7-1047 is a compact vortex (tangential/crossflow) blower made by Japan Servo Co., Ltd. in Japan. Unlike conventional axial fans, a tangential blower draws air across the full width of a cylindrical impeller and exhausts it in a uniform, low-turbulence stream — making it well suited for applications where even airflow distribution and low acoustic output are important. The unit runs on 24V DC at 2.4W and comes mounted in a formed sheet-metal chassis with integral mounting flanges.
Specifications & What's Included
- Manufacturer: Japan Servo Co., Ltd. — Made in Japan
- Model / Assembly: RH7-1047
- Part Number: CF24DM506-701
- Input Voltage: 24V DC
- Power Consumption: 2.4W
- Blower Type: Vortex / Tangential crossflow impeller
- Dimensions: 2.6" W × 2.75" H × 3.1" D (3.2" W measured to motor end)

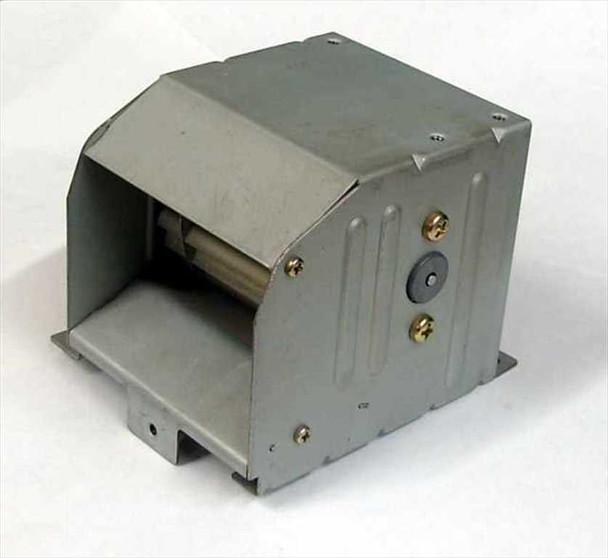

- Mounting: Integral sheet-metal bracket with four corner mounting flanges
- Connector: 3-pin JST-style connector with red (+) and black (−) leads
- Date Code: 7F13 (visible on label)
- Includes: Blower unit with integral bracket and wiring lead only — no additional cables or hardware
Applications
Tangential blowers like the RH7-1047 are commonly used in office equipment, copiers, printers, laser printers, medical devices, and electronic instrument chassis where a long, uniform airflow curtain is needed across a heat sink, fuser assembly, or circuit board array. The crossflow design produces a relatively flat velocity profile across the outlet width, which makes it useful for cooling components spread over a wide area rather than concentrating airflow in a single spot. At 24VDC and 2.4W, this unit is suited for low-power embedded systems, OEM equipment replacements, and custom cooling solutions. Japan Servo Co. has supplied precision motors and fans to OEM manufacturers in copier, printer, and precision instrument industries for decades, and the RH7-1047 format was a common building block in Japanese office equipment of the 1990s–2000s era.
This Japan Servo RH7-1047 CF24DM506-701 vortex blower is in good used condition. It was pulled from a working environment where it had been in service. The sheet-metal housing and mounting bracket show normal light wear consistent with use; the impeller, motor, and wiring leads appear intact with no obvious damage. Please review our photos for a full look at the unit's condition, and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Japan Servo |
Model: |
RH7-1047 |
MPN: |
CF24DM506-701 |
Secondary Model: |
CF24DM506-701 |
SKU: |
35242 |
Type: |
Vortex / Tangential Crossflow Blower |
Input Voltage: |
24V DC |
Power Rating: |
2.4W |
Connector Type: |
3-pin JST-style connector, Red/Black leads |
Mounting: |
Integral sheet-metal mounting bracket with flanges |
Dimensions (W x H x D): |
2.6" W (3.2" with motor) x 2.75" H x 3.1" D |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Compact Chassis-Mount Blower |
Seller Notes: |
Blower unit with integral mounting bracket and wiring lead — no additional cables or hardware included. |
Condition Notes: |
This Japan Servo RH7-1047 CF24DM506-701 vortex blower is in good used condition, pulled from a working environment. Housing and bracket show light wear; impeller and wiring leads appear intact. Please contact us with any questions. |
