Jamco CA080 Vertical Propane Gas Cylinder Storage Cabinet 31x37x71

Jamco CA080 Vertical Propane Gas Cylinder Storage Cabinet 31x37x71

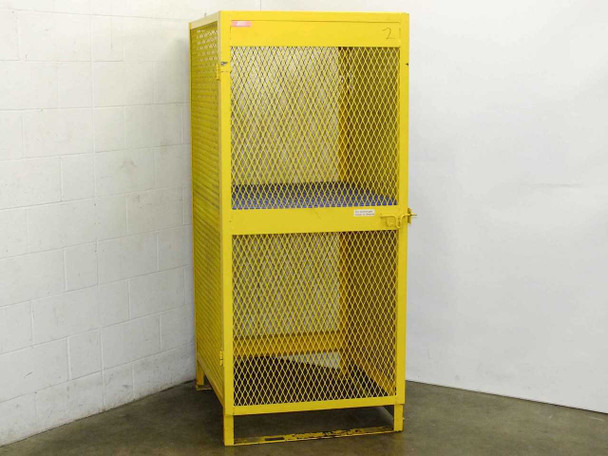

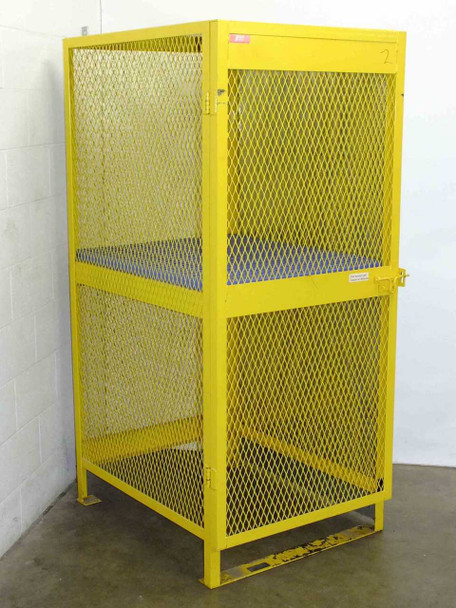

The Jamco CA080 is a heavy-duty vertical gas cylinder storage cabinet designed to safely store upright propane and compressed gas cylinders in industrial and commercial settings. The welded steel frame is clad in expanded diamond-mesh panels on all four sides and both door faces, providing ventilation while keeping cylinders secured. A single blue perforated plastic shelf divides the interior into an upper and lower section, each accessed by its own latching door with a padlock hasp.

Specifications & What's Included

• Manufacturer: Jamco Products, Inc. (So. Beloit, IL)
• Model: CA080
• Configuration: Two-section vertical cabinet, 2 doors
• Construction: Welded steel frame, expanded diamond-mesh panels
• Finish: Safety yellow powder coat
• Overall Dimensions: 31 in. W × 37 in. D × 71 in. H

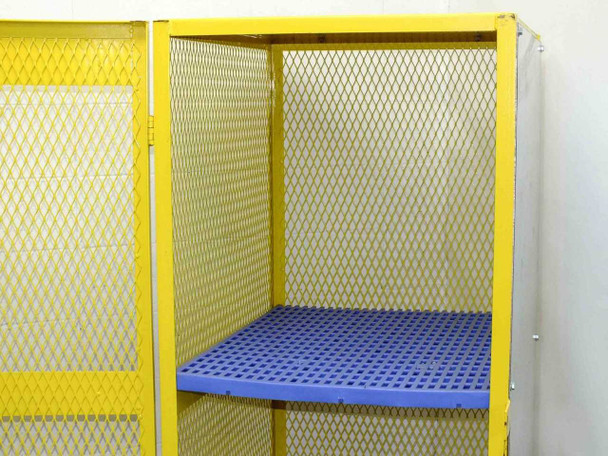

• Upper Section Interior: 30 in. W × 36 in. D × 30 in. H

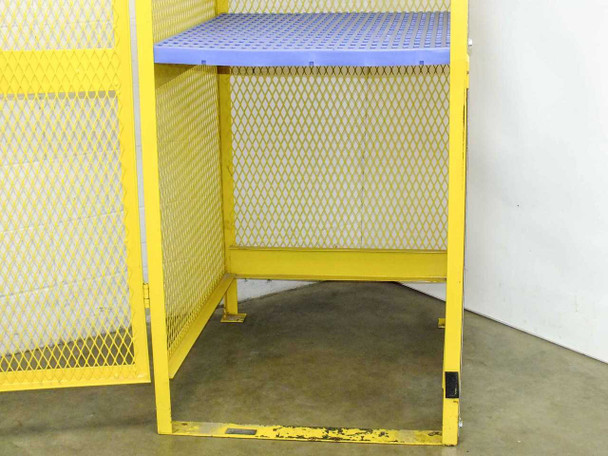

• Lower Section Interior: 30 in. W × 36 in. D × 37 in. H
• Shelf: 1 blue perforated plastic shelf (upper/lower divider)

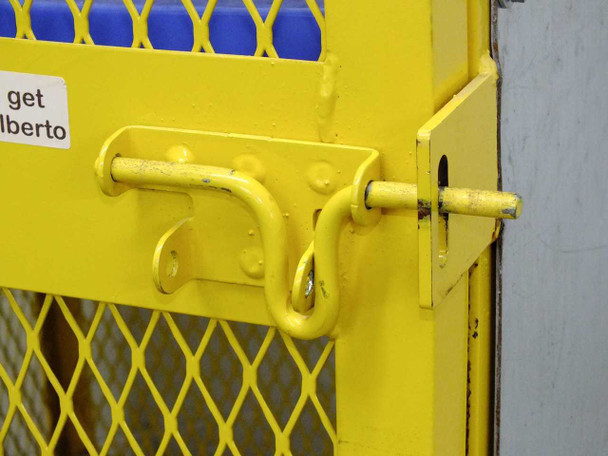

• Door Latch: Hasp-style with padlock loop (padlock not included)
• Cylinder Orientation: Vertical (upright storage)
• Approximate Weight: 251 lbs.
• Shipping: Local pickup or freight only — contact us for a freight quote

Note on shelf capacity: The plastic shelf is not rated to support multiple full cylinders simultaneously. Standard practice is to store empty cylinders in the upper section and full cylinders standing on the cabinet floor in the lower section.

Applications

Gas cylinder storage cabinets like the Jamco CA080 are standard safety equipment in facilities that store or use propane, oxygen, acetylene, nitrogen, CO₂, and other compressed gases. OSHA 29 CFR 1910.101 and NFPA 58 require compressed gas cylinders to be properly secured and stored away from heat sources and ignition risks; a dedicated lockable cage like this one helps facilities meet those requirements. These cabinets are commonly found in manufacturing plants, welding shops, warehouses, laboratories, food and beverage operations, and construction sites — anywhere cylinders must be stored securely, separated from traffic, and protected from unauthorized access. The expanded-metal mesh construction provides the ventilation required by fire codes while keeping the contents visible and accessible to authorized personnel. Jamco is a well-established U.S. manufacturer of industrial storage and safety products, and the CA080 is sized to accommodate standard vertical propane and compressed-gas cylinders.
