JA Noll NMC-6 Optical Instrument Mirror Mount 9.375x13.25 In Flat Mirror Base

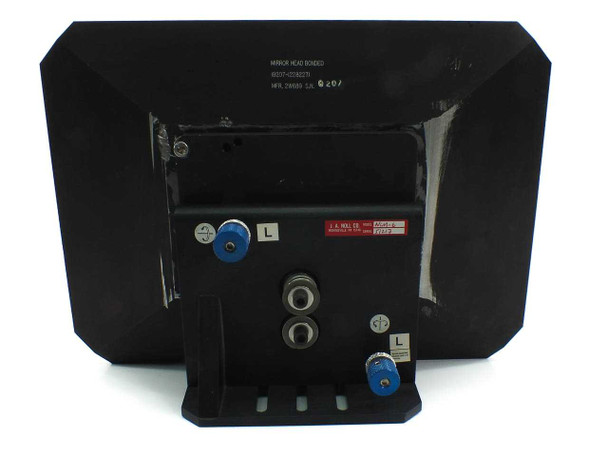

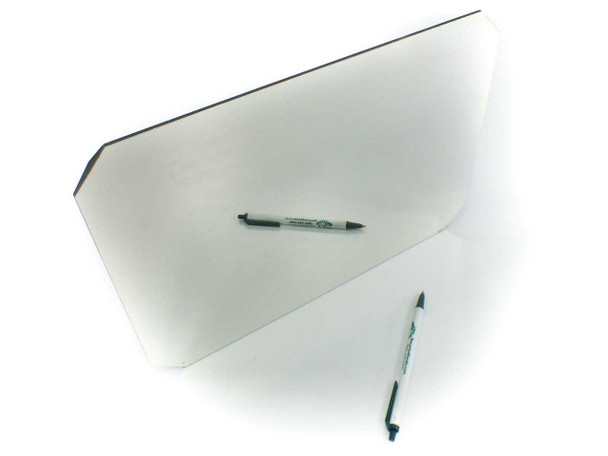

The JA Noll NMC-6 is a precision optical instrument mirror mount consisting of a kinematically adjustable mirror head and a rigid mounting base. Designed to hold and precisely orient a flat front-surface mirror, the NMC-6 provides stable, repeatable positioning through its screw-adjust blue knob hardware visible on the rear of the head assembly. The included flat mirror measures approximately 9-3/8" x 13-1/4" (9.375" x 13.25").
Specifications & What's Included
- Model: JA Noll NMC-6
- Mirror dimensions: approximately 9.375" x 13.25" (9-3/8" x 13-1/4")
- Mirror type: flat, rectangular
- Mount style: fixed base with adjustable mirror head
- Adjustment hardware: blue knob screw adjusters on rear of head (kinematic-style)
- Additional hardware: two black cylindrical post/bushing fittings visible on rear mount plate
- Includes: flat mirror, mount head assembly, and mounting base
- Manufacturer: J.A. Noll Company (USA)
Applications
Precision optical mirror mounts like the NMC-6 are used in optical bench setups, laser beam steering and alignment systems, interferometry, and other laboratory or industrial optical systems where a large flat mirror must be held rigidly at a precise angle. The adjustable kinematic design allows fine angular positioning of the mirror surface — critical in applications such as directing laser beams, collimating light paths, or aligning imaging systems. J.A. Noll Company produced precision optical and instrument mounts primarily for scientific, industrial, and government/defense optical systems. Mounts of this type and size are commonly found in optical test benches, spectroscopy setups, and laser system integration fixtures where a large-format mirror is required.
This JA Noll NMC-6 Optical Instrument Mirror Mount has been visually inspected and appears to be in good used condition. The mirror surface is clean and shows no visible damage. The mount base and adjustment hardware — including the blue adjustment knobs visible on the rear — appear intact and undamaged. Normal light handling marks consistent with prior lab use may be present. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
JA Noll |
Model: |
NMC-6 |
MPN: |
NMC-6 |
Type: |
Optical Instrument Mirror Mount |
SKU: |
51941 |
Mirror Dimensions: |
9.375" x 13.25" (approx. 9-3/8" x 13-1/4") |
Mount Style: |
Fixed base with adjustable mirror head |
Adjustment Type: |
Kinematic / screw-adjust (blue knobs) |
Includes: |
Mirror, mount head, and base |
Mirror Shape: |
Rectangular / flat |
Application: |
Optical bench, laser alignment, precision optics |
Seller Notes: |
Includes flat mirror, mount head, and base as shown |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This JA Noll NMC-6 Optical Instrument Mirror Mount has been visually inspected and appears to be in good used condition. The mirror surface is clean and shows no visible damage. |
