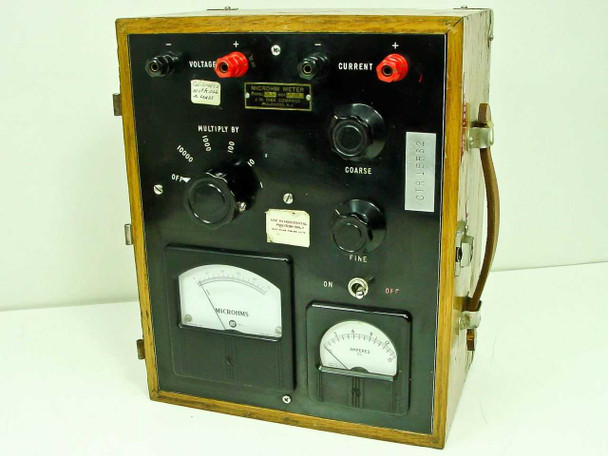

The J.W. Dice Company Model 151 is a DC microhm meter designed to measure very low resistances — in the microhm to milliohm range — using a four-terminal (Kelvin) connection method. The instrument sources a DC test current through the Coarse and Fine rheostat controls and reads the resulting voltage drop on a calibrated galvanometer scaled in microhms. A rotary Multiply By switch extends the effective measurement range from 1× up to 10,000×, giving a full span of approximately 0–750,000 microhms (0–750 milliohms). A second meter displays the DC test current in amperes, allowing the operator to set and confirm the correct current level per the operating instructions.

Specifications & What's Included

• Manufacturer: J.W. Dice Company, Englewood, NJ
• Model: 151 (also referenced as 151-S)
• Serial Number: 1576 (internal reference only)
• Measurement type: DC low resistance in microhms
• Microhm meter scale: 0–75 microhms (analog D'Arsonval/galvanometer movement, Dice branded)
• Multiply By switch positions: 1, 10, 100, 1,000, 10,000 — extends full-scale to 750,000 µΩ
• Ammeter: Weston movement, 0–15 Amperes DC
• Controls: Multiply By rotary range switch, Coarse rheostat, Fine rheostat, On/Off switch
• Terminals: Four banana jacks — Voltage (−/+) and Current (−/+) for 4-wire Kelvin measurement
• Operating position: Horizontal use only (per front-panel label)
• Enclosure: Portable wood carry case with metal corner hardware, hinges, and latches
• Operating instructions and schematic diagram printed on interior lid
• Calibration sticker on front panel: references calibration with 026A leads

Applications
