Description
Iomega Bernoulli Box II 44 B144X-UNISYS SCSI Removable Cartridge Drive 50-Pin
The Iomega Bernoulli Box II 44 B144X-UNISYS is a desktop external SCSI removable cartridge disk drive produced under the UNISYS OEM label. It uses Iomega's Bernoulli technology -- a system in which a flexible magnetic disk cartridge spins at high speed, using the Bernoulli effect to draw the flexible disk into close proximity with the read/write head. This approach gave Bernoulli drives inherent resistance to head crashes, a meaningful advantage over conventional rigid-disk technology of the same era. This unit houses the Iomega 150 MultiDisk drive mechanism and connects to a host via a 50-pin Centronics SCSI-1/SCSI-2 interface, with two rear SCSI ports enabling daisy-chain configurations.
Specifications & What's Included
- Make: Iomega (OEM branded for UNISYS)
- Model: B144X-UNISYS
- Part Number: 39122155
- Style Number: RCD 2-EXT
- Plateau Level Number: D
- FCC ID: DDX8E44LXU
- Drive Mechanism: Iomega 150 MultiDisk
- Cartridge Format: Bernoulli 44MB compatible / 150 MultiDisk
- Interface: SCSI-1 / SCSI-2
- Connector Type: 50-pin Centronics

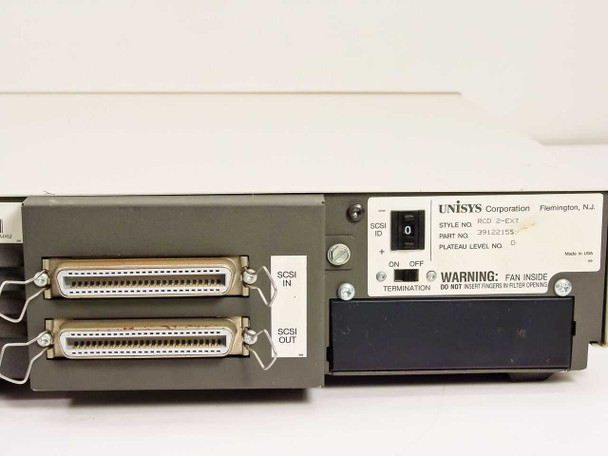

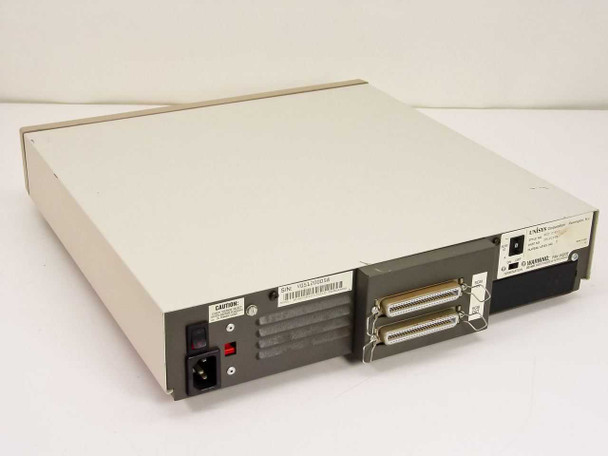

- SCSI Ports: 2 ?-- 50-pin Centronics (SCSI IN and SCSI OUT -- daisy-chain capable)
- SCSI ID: Factory set to 0 (adjustable via rear rotary switch)
- Termination: Switch-selectable ON/OFF on rear panel
- Power Input: 115V AC; voltage-select switch on rear panel
- Power Connector: IEC 320 C14 (standard 3-pin)
- Form Factor: Desktop external
- Manufacturer: UNISYS Corporation, Flemington, NJ -- Made in USA
- Included: Drive unit only -- no cartridge, cables, or mounting hardware
Applications
The Iomega Bernoulli Box II was a high-capacity removable-media storage solution aimed at workstations, small businesses, and departmental computing environments in the late 1980s and early 1990s. The Bernoulli cartridge system was used for data backup, file transfer between sites, and secure removable storage in environments where hard drive failure risk was a concern -- the flexible-disk design made head crashes far less likely than with conventional rigid drives. This B144X-UNISYS variant was supplied by UNISYS as OEM-branded storage for their workstation and minicomputer product lines, connecting via SCSI to UNISYS systems and other SCSI-equipped workstations and servers of the period. Bernoulli drives competed directly with SyQuest removable cartridge drives in professional and creative markets. Today these units are sought primarily by collectors, retrocomputing enthusiasts, and organizations needing to recover data from legacy Bernoulli 44MB or 150 MultiDisk cartridges.
This Iomega Bernoulli Box II 44 B144X-UNISYS Removable Cartridge Disk Drive is being sold as-is for parts or repair. A power-on test was performed, but no further functional testing was done and functionality is not guaranteed. Cosmetically the unit is in fair shape for its age, with the light yellowing on the plastic housing typical of equipment from this era. Both rear 50-pin Centronics SCSI connectors are present and appear intact. The IEC power inlet is undamaged, the SCSI ID is set to 0, and the termination switch is accessible on the rear panel. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Iomega |
Model: |
B144X-UNISYS |
MPN: |
39122155 |
Secondary Model: |
RCD 2-EXT |
Type: |
Removable Cartridge Disk Drive |
SKU: |
16756 |
Seller Notes: |
Drive only — no cartridge, cables, or mounting hardware included. |
Platform / OEM: |
UNISYS |
Interface: |
SCSI (SCSI-1 / SCSI-2) |
Connector Type: |
50-Pin Centronics |
Number of SCSI Ports: |
2 (SCSI IN and SCSI OUT — daisy-chain capable) |
SCSI ID: |
0 (factory set; adjustable) |
Termination: |
Switch-selectable (ON/OFF) |
Form Factor: |
Desktop External |
Style Number: |
RCD 2-EXT |
Plateau Level Number: |
D |
Cartridge Format: |
Iomega Bernoulli 44MB / 150 MultiDisk |
Drive Mechanism: |
Iomega 150 MultiDisk |
Country/Region of Manufacture: |
United States |
Manufacturer Location: |
Flemington, NJ |
Power Input: |
115V AC (voltage-select switch on rear) |
Power Connector: |
IEC 320 C14 (standard 3-pin) |
FCC ID: |
DDX8E44LXU |
Condition Notes: |
Iomega Bernoulli Box II 44 B144X-UNISYS SCSI drive sold as-is for parts or repair. Power-on test only — no further testing, functionality not guaranteed. Cosmetically good with typical age yellowing. View photos; contact us with questions. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
Condition: |
As-Is / For Parts or Not Working |
