International Rectifier 67C250D20TTS 20KV 2A Diode Ohmite 270-225P-46 10K 225W

International Rectifier 67C250D20TTS 20KV 2A Diode Ohmite 270-225P-46 10K 225W

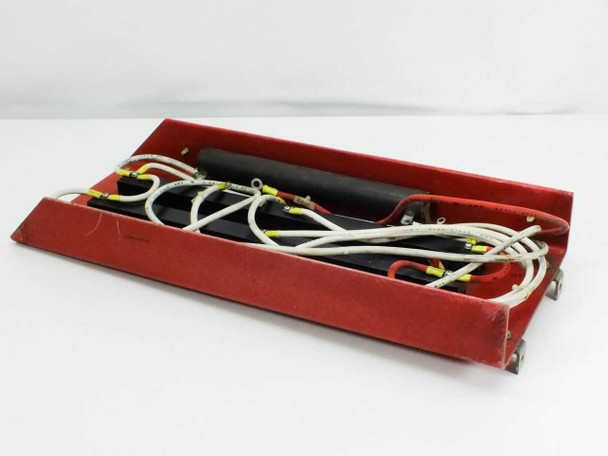

This is a pre-wired high-voltage rectifier assembly consisting of three International Rectifier 67C250D20TTS 20 kV / 2 A diodes and one Ohmite 270-225P-46 10K ohm 225W vitreous wirewound resistor, mounted together in a red metal tray with a wiring harness terminated in yellow ring connectors. The assembly is sold as a complete, ready-to-install unit.

Specifications & What's Included

• Quantity of diodes: 3x International Rectifier 67C250D20TTS
• Diode voltage rating: 20 kV (20,000V)
• Diode current rating: 2 A
• Quantity of resistors: 1x Ohmite 270-225P-46
• Resistor series: Ohmite 270 Series
• Resistance value: 10,000 ohm (10K ohm)
• Resistor power rating: 225 W
• Resistor construction: Vitreous enamel coated wirewound
• Resistor terminal type: Type 46
• Assembly form factor: Open red metal tray with integrated wiring harness
• Wire terminations: Yellow ring connectors

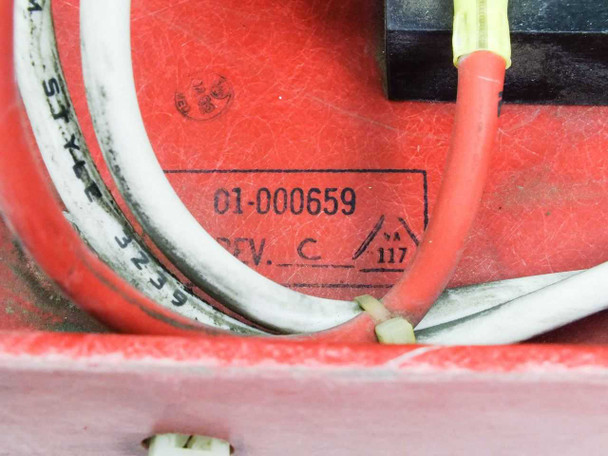

• Assembly ID: 01-000659, Rev C (visible on tray label)
• Includes: Complete tray assembly with all three diodes, resistor, and wiring harness

Applications

High-voltage silicon rectifier diodes rated at 20 kV are used in power conversion and rectification stages where large peak inverse voltages must be blocked — common applications include high-voltage DC power supplies, X-ray generator power stages, laser power supplies, radar transmitter power supplies, and industrial electrostatic equipment. The Ohmite 270 Series vitreous wirewound resistor is a ruggedized power resistor designed for high-wattage, high-voltage applications; at 225W it is suited to bleeder, discharge, voltage divider, or current-limiting duty in high-voltage circuits. Mounting both components in a common wired tray assembly is typical of custom subassemblies built for a specific instrument or power supply chassis — the pre-wired tray simplifies integration and replacement in the original host system.
