Intermec Janus L2010 061019-002 Optical Link Adapter RF Scanner w/ Cable

Intermec Janus L2010 061019-002 Optical Link Adapter RF Scanner w/ Cable

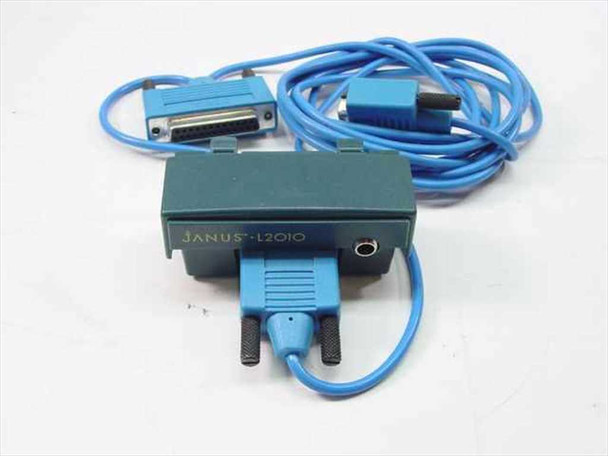

The Intermec Janus L2010 Optical Link Adapter (P/N 061019-002) is a peripheral interface module designed to provide a wired optical communication link between the Intermec Janus L2010 portable RF scanner and a host PC or docking connection. The adapter connects directly to the Janus scanner's docking port and provides a serial interface via the included cable assembly with standard DB-9 and DB-25 connectors.

Specifications & What's Included

• Manufacturer: Intermec
• Model: Janus L2010

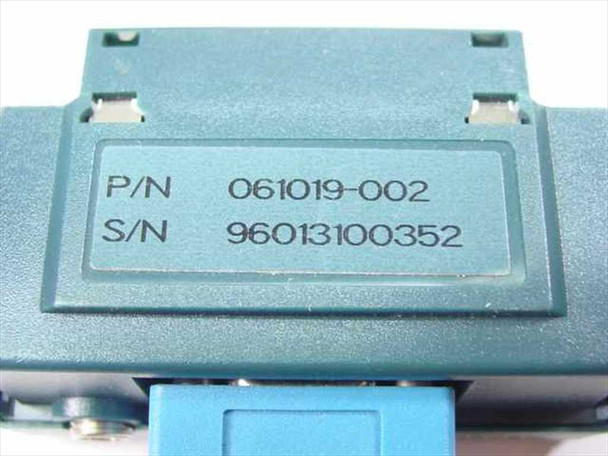

• Part Number (P/N): 061019-002
• Type: Optical Link Adapter
• Compatible With: Intermec Janus L2010 RF Scanner

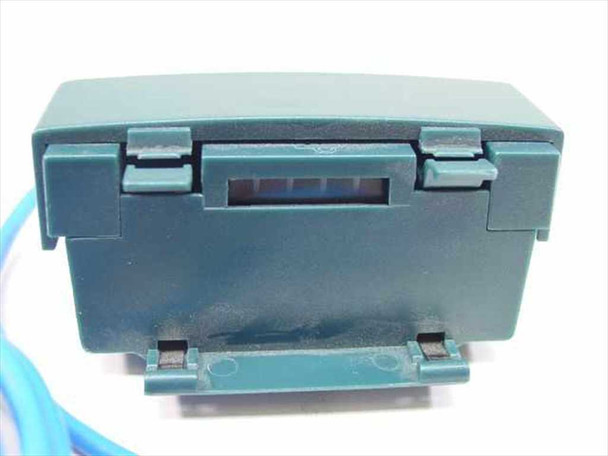

• Docking/Device Connector: 5-pin port (rear of adapter body)
• Host Interface: DB-9 female and DB-25 female serial connectors via included cable
• Additional Port: 3.5mm audio/data jack on side of adapter body

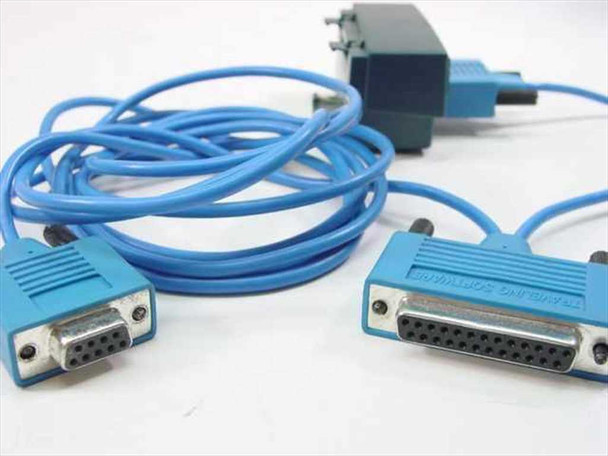

• Included: Optical link adapter unit and blue connection cord with DB-9 and DB-25 female ends
• Housing Color: Teal
• Form Factor: Handheld / Portable Accessory

Applications

The Intermec Janus line was a series of ruggedized handheld computers and RF barcode scanners introduced in the early-to-mid 1990s, widely used in warehouse, distribution, retail, and manufacturing environments for real-time data collection. The Janus L2010 optical link adapter was used to connect Janus portable terminals to host systems or programming stations via a wired serial link, enabling data transfer, configuration, and application loading without requiring an active RF network connection. These adapters remain sought after by facilities still running legacy Intermec Janus infrastructure, as well as collectors and integrators maintaining or redeploying period-correct barcode and inventory systems.
