Intellemetrics IL400 Thickness Monitor Instruction Manual 5-Section

Intellemetrics IL400 Thickness Monitor Instruction Manual 5-Section

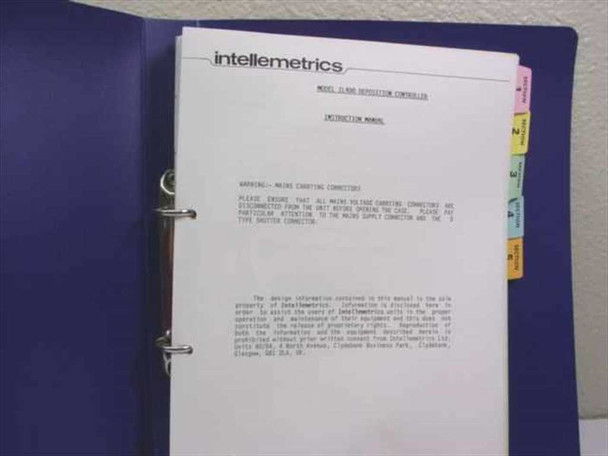

This is the original printed Instruction Manual for the Intellemetrics IL400 Thickness Monitor (also referred to as the IL400 Deposition Controller). The manual is bound in a blue 3-ring binder and organized into 5 color-coded tabbed sections, covering the setup, operation, and maintenance of the IL400 instrument.

Specifications & What's Included

• Manufacturer: Intellemetrics
• Model covered: IL400 Thickness Monitor / Deposition Controller
• Document type: Instruction Manual
• Format: Printed hard copy in 3-ring binder
• Number of sections: 5 (color-coded tabbed dividers)
• Language: English
• Published by Intellemetrics Ltd., Clydeside Business Park, Glasgow, Scotland (UK)

Applications

The Intellemetrics IL400 is a quartz crystal microbalance (QCM) based thin film thickness monitor and deposition rate controller, used in physical vapor deposition (PVD) processes such as thermal evaporation and electron-beam evaporation in vacuum coating systems. These instruments monitor and control the deposition of thin films — metals, oxides, and other materials — onto substrates, and are widely used in semiconductor fabrication, optical coatings, research laboratories, and industrial thin film production. This manual covers installation, operating procedures, connector configurations, and maintenance. It is an essential reference for anyone operating, servicing, or integrating the IL400 into a vacuum deposition system.
