Description
Intel SL3D9 Pentium III Xeon 500MHz Slot 2 Processor 500/100/512 D7109-60001

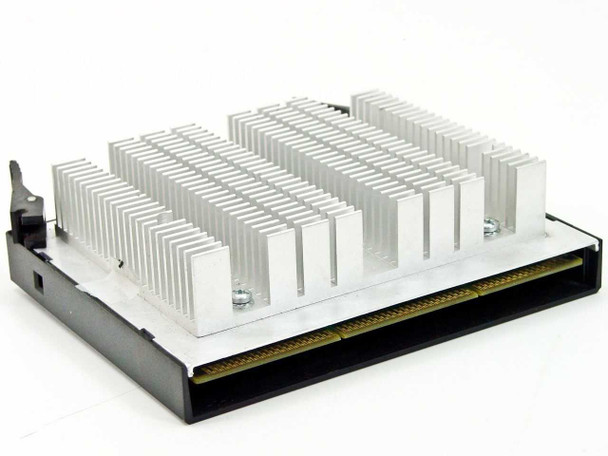

The Intel SL3D9 is a 500MHz Pentium III Xeon processor in the Slot 2 cartridge form factor, running a 100MHz front-side bus with 512KB of full-speed on-die L2 cache. It is designed for high-performance dual-processor workstations and entry-level servers of the late 1990s. The unit ships as a complete cartridge assembly with its integrated aluminum heatsink.
Specifications & What's Included
- Processor: Intel Pentium III Xeon
- sSpec: SL3D9
- Clock Speed: 500 MHz
- Front-Side Bus (FSB): 100 MHz
- L2 Cache: 512 KB (full-speed, on-die)
- Socket / Interface: Slot 2 (SC330 connector)
- Cores: 1
- CPU Stepping: C0
- Part Number: D7109-60001
- Replacement P/N: D7109-63001
- Exchange P/N: D7109-69001
- Manufacture Date: 1998 (stamped i©98)
- Country of Manufacture: Ireland
- Includes: CPU cartridge with integrated aluminum heatsink
- Does not include: motherboard, cables, or accessories
Applications
The Pentium III Xeon Slot 2 processor was Intel's workstation and entry-level server CPU of the late 1990s, introduced in 1998 to succeed the Pentium II Xeon. It targeted dual-processor systems built around Intel's 440GX and 450NX chipsets, used in high-end workstations from manufacturers such as HP, Dell, Compaq, and IBM, as well as in Xeon-based server platforms of that era. The Slot 2 cartridge form factor — physically larger than the desktop Slot 1 — carried a full-speed L2 cache directly on the processor die, which gave it a significant performance edge over contemporaneous desktop CPUs for compute-intensive tasks such as 3D rendering, CAD, scientific computing, and database workloads. Today, the SL3D9 is primarily sought by collectors and technicians maintaining or restoring late-1990s dual-processor workstations and servers that require a genuine Slot 2 Xeon.

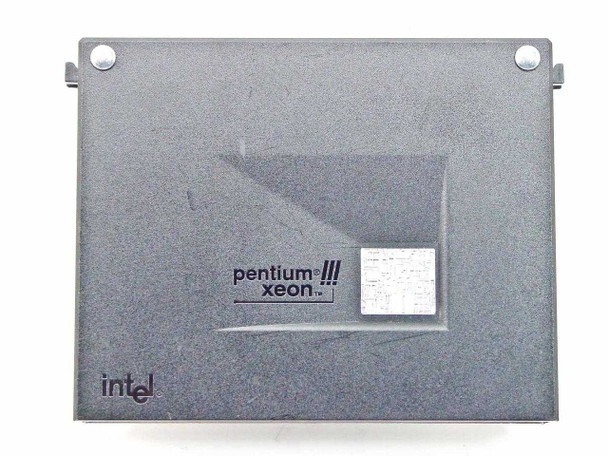

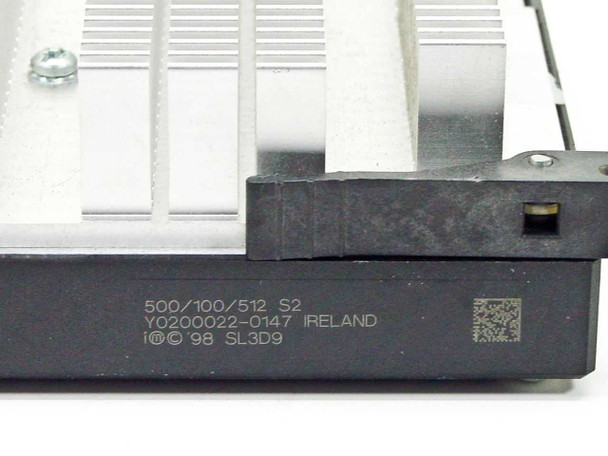

This Intel SL3D9 Pentium III Xeon 500MHz Slot 2 processor has been inspected and is in good overall condition. The cartridge body, Slot 2 edge connector, and integrated heatsink all appear intact with no obvious physical damage. We do not have a compatible Slot 2 motherboard at our facility, so this processor has not been powered or functionally tested — it is sold as-is in terms of testing. Photos show clear labeling including part number D7109-60001 and the 500/100/512 S2 spec stamp. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Intel |
Model: |
SL3D9 |
MPN: |
D7109-60001 |
Secondary Model: |
D7109-60001 |
SKU: |
43091 |
Type: |
Server/Workstation Processor (CPU) |
Processor Model: |
Pentium III Xeon |
Clock Speed: |
500 MHz |
Front Side Bus (FSB): |
100 MHz |
L2 Cache: |
512 KB |
Socket Type: |
Slot 2 |
Number of Cores: |
1 |
Compatible Motherboard Socket: |
Slot 2 (SC330) |
Stepping: |
C0 (per label: STEPPING CO) |
Year Introduced: |
1998 |
Country/Region of Manufacture: |
Ireland |
Form Factor: |
Slot 2 Cartridge with Integrated Heatsink |
Replacement Part Number: |
D7109-63001 |
Exchange Part Number: |
D7109-69001 |
Condition: |
Used – Inspected, not bench-tested |
Seller Notes: |
CPU cartridge with integrated heatsink included; no motherboard or accessories |
Condition Notes: |
Intel SL3D9 Pentium III Xeon 500MHz Slot 2 processor. Inspected, in good overall condition. Not bench-tested — no compatible Slot 2 motherboard available. Cartridge, heatsink, and edge connector intact. Sold as-is for testing. |
