Intel PMG36602001AA 366MHz Pentium II Mobile CPU MMC-2 Dell Latitude CPi

Intel PMG36602001AA 366MHz Pentium II Mobile CPU MMC-2 Dell Latitude CPi

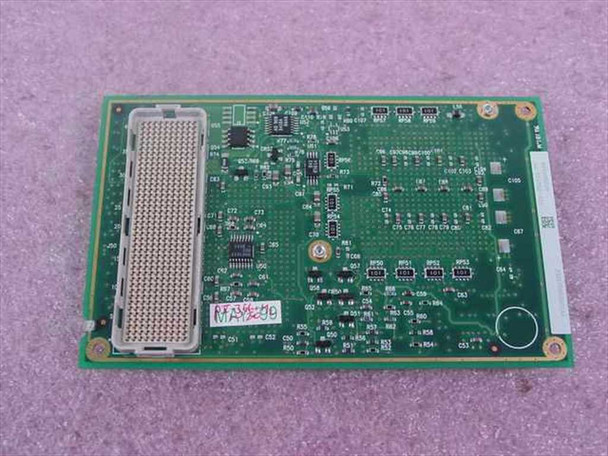

The Intel PMG36602001AA is a 366MHz Pentium II mobile processor in the MMC-2 (Mobile Module Card 2) form factor. It is the primary CPU upgrade and replacement module for the Dell Latitude CPi series laptops, including the Latitude 6692D. The processor runs at a 66MHz front-side bus with 256KB of on-board L2 cache and a 1.6V core voltage.

Specifications & What's Included

• Manufacturer: Intel

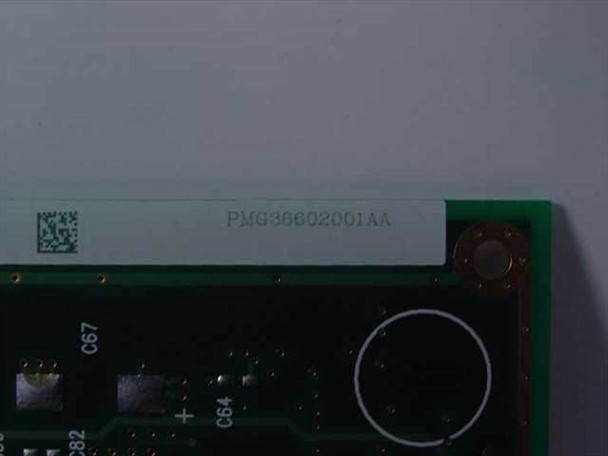

• Part Number: PMG36602001AA
• Processor Family: Pentium II (PII)
• Clock Speed: 366 MHz
• Front-Side Bus (FSB): 66 MHz
• L2 Cache: 256 KB
• Core Voltage (Vcore): 1.6V
• Package / Form Factor: MMC-2 (Mobile Module Card 2)
• Compatible Systems: Dell Latitude CPi, Dell Latitude 6692D

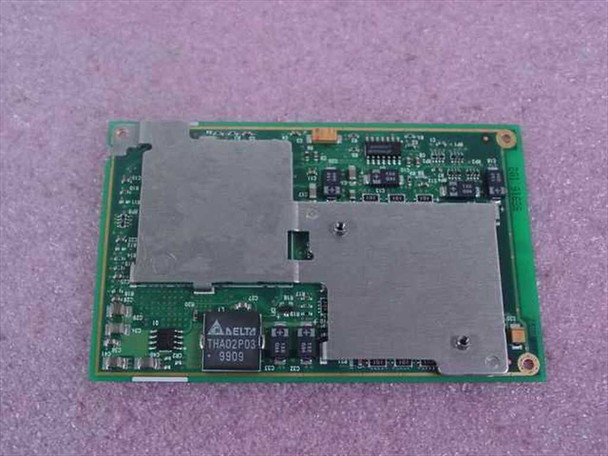

• Bottom side features a Delta THA02P03 power regulator module (visible in photos)
• Processor module only — no cables or accessories included

Applications

The MMC-2 form factor was Intel's standardized removable CPU module for late-1990s mobile platforms, designed to allow processor upgrades in compatible laptops without soldering. It was used primarily in Dell Latitude CPi and select Toshiba and HP Omnibook laptops of the era. The Pentium II mobile line (released 1998–1999) brought Deschutes-core performance to portable systems, and the 366MHz variant was a mid-to-upper tier offering in that family. Today these modules are sought by collectors and technicians maintaining or restoring Dell Latitude CPi-series laptops, where the MMC-2 socket is the only CPU upgrade path.
