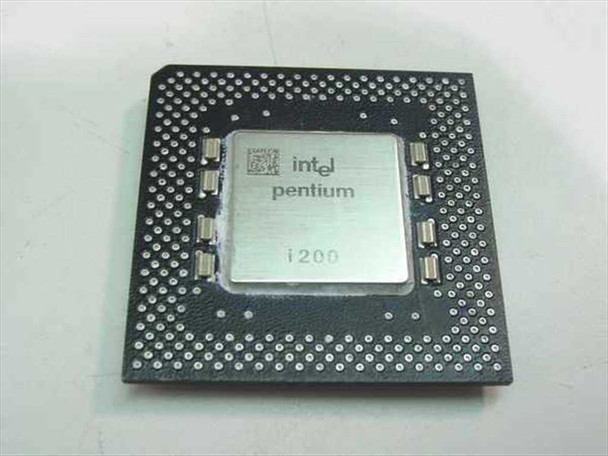

Intel Pentium SY045 FV80502200 200MHz Socket 7 CPU Processor P200 iCOMP 2.0

Intel Pentium SY045 FV80502200 200MHz Socket 7 CPU Processor P200 iCOMP 2.0

The Intel Pentium SY045 is a 200MHz Socket 7 desktop processor with the FV80502200 product code. Running at 200MHz on a 66MHz front-side bus, it was manufactured on Intel's 0.35-micron CMOS process and carries an iCOMP 2.0 index rating. The SY045 sSpec designation identifies this as a standard (non-MMX) Pentium P200, made in Malaysia, and it is the top-speed variant of the classic Pentium P5 series.

Specifications & What's Included

• Manufacturer: Intel
• Processor family: Intel Pentium (P5 / non-MMX)
• sSpec number: SY045
• Product code (MPN): FV80502200
• Clock speed: 200 MHz
• Front-side bus (FSB): 66 MHz
• Bus multiplier: 3x
• Socket: Socket 7 (PGA321)
• Manufacturing process: 0.35 micron CMOS
• iCOMP 2.0 index rating (visible on die)
• Country of manufacture: Malaysia (printed on die)
• What's included: CPU only — no heatsink, fan, or retention bracket

Applications

The Intel Pentium P200 is a mid-to-late 1990s processor representing the final generation of classic (non-MMX) Socket 7 Pentiums. Socket 7 was the dominant desktop CPU socket of the mid-1990s, supported by motherboards from Intel (430HX, 430VX, 430TX chipsets), Asus, Gigabyte, MSI, and many others. At 200MHz it was Intel's fastest non-MMX Pentium, targeted at performance desktop PCs running Windows 95, Windows NT 4.0, and DOS-based applications of the era. Today these processors are used primarily for restoring and maintaining period-correct vintage PCs, retro computing builds, and museum-quality system restorations. The SY045 is compatible with any Socket 7 motherboard that supports 200MHz at a 66MHz FSB and 3x multiplier, and it is also interchangeable with many Super Socket 7 boards that supported AMD K6 and Cyrix 6x86 processors of the same era.
