Description
Intel Pentium II SL356 350MHz Slot 1 CPU SECC2 512KB Cache 100MHz FSB Deschutes

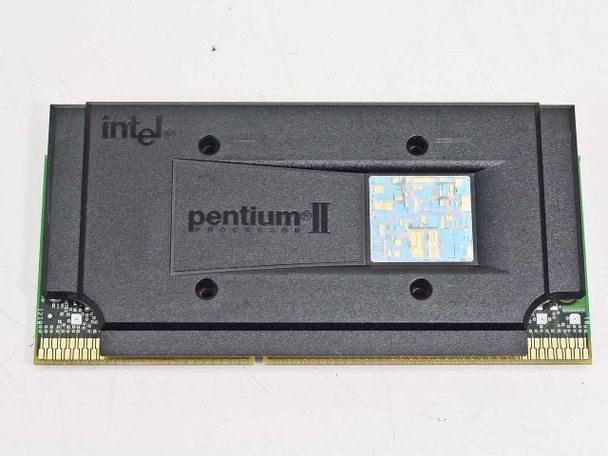

The Intel SL356 is a 350MHz Pentium II processor built on the Deschutes core and packaged in Intel's SECC2 (Single Edge Contact Cartridge 2) form factor for Slot 1 motherboards. Running at 350MHz with a 100MHz front-side bus and 512KB of on-cartridge L2 cache, it represents the refined second-generation Pentium II built on Intel's 0.25-micron process node.
Specifications & What's Included
- Processor Family: Intel Pentium II
- S-Spec / Stepping Code: SL356
- Processor Core: Deschutes
- Clock Speed: 350 MHz
- Front-Side Bus (FSB): 100 MHz
- L2 Cache: 512 KB (on-cartridge, half-speed)
- Package: SECC2 (Single Edge Contact Cartridge 2)
- Socket / Interface: Slot 1
- Core Voltage: 2.0V (range: 1.93V – 2.1V)
- Manufacturing Process: 0.25 micron
- CPUID: 0652h
- Core Stepping: dB0

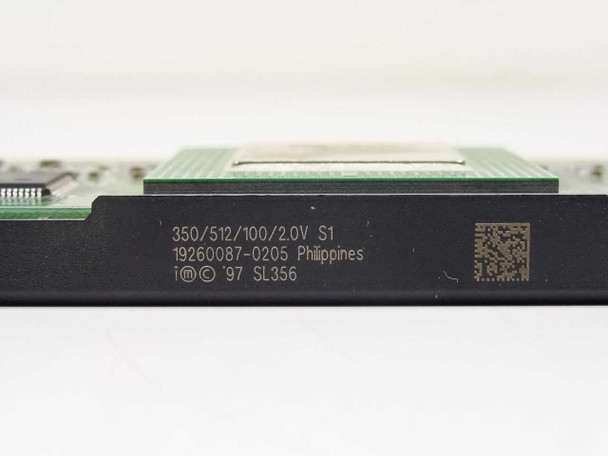

- Processor Markings: 350/512/100/2.0V S1
- Part Number: 19260087-0205
- Country of Manufacture: Philippines

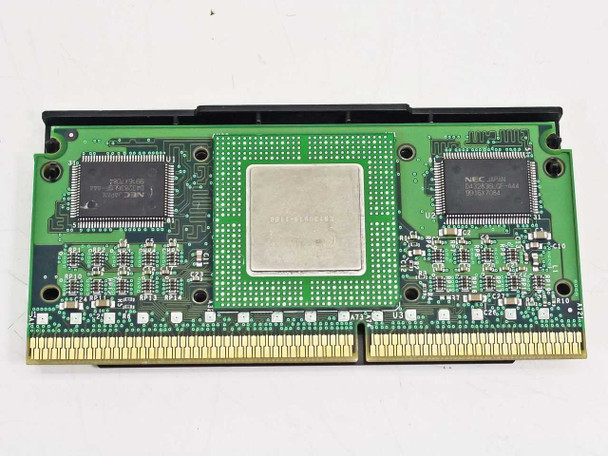

- L2 cache chips: NEC (two chips visible on PCB underside)
- Included: CPU card only — no retention mechanism or heatsink
Applications
The Pentium II Deschutes generation was Intel's mainstream desktop and workstation processor from 1998, replacing the earlier Klamath-core Pentium II with better power efficiency and improved thermal characteristics from the smaller 0.25-micron die. The SL356 at 350MHz was among the faster SKUs available on Slot 1 boards, compatible with Intel 440BX, 440LX, and 440EX chipset motherboards that supported a 100MHz FSB. These processors powered a wide range of late-1990s desktop PCs, entry-level workstations, and servers, and were commonly used in systems running Windows 98, Windows NT 4.0, and early Windows 2000. Today the SL356 is sought by vintage PC enthusiasts restoring Slot 1 systems, as well as collectors of late-1990s Intel hardware. The SECC2 packaging was a refinement over the earlier SECC cartridge, reducing cost and exposing the processor die directly rather than enclosing it in a full plastic housing.
This Intel Pentium II SL356 350MHz Slot 1 processor has been inspected and is in good condition. The SECC2 cartridge housing is intact with no cracks or broken tabs, and the Slot 1 edge connector contacts look clean and undamaged. Normal light handling marks are present on the cartridge shell. No retention mechanism or heatsink is included — the CPU card only. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Intel |
Model: |
SL356 |
MPN: |
SL356 |
Type: |
CPU / Microprocessor |
SKU: |
43101 |
Processor Family: |
Intel Pentium II |
Processor Core: |
Deschutes |
Clock Speed: |
350 MHz |
Bus Speed: |
100 MHz |
L2 Cache Size: |
512 KB |
Socket Type: |
Slot 1 |
Package: |
SECC2 |
Core Voltage: |
2.0V (1.93V – 2.1V) |
Manufacturing Process: |
0.25 micron |
CPUID: |
0652h |
Core Stepping: |
dB0 |
Processor Markings: |
350/512/100/2.0V S1 |
Number of Cores: |
1 |
Country/Region of Manufacture: |
Philippines |
Form Factor: |
Slot 1 / SECC2 Card |
Condition: |
Used – Inspected and in good condition |
Seller Notes: |
CPU only; no retention mechanism or heatsink included. |
Condition Notes: |
Intel Pentium II SL356 350MHz Slot 1 CPU inspected and in good condition. SECC2 cartridge intact, edge connector clean. CPU card only — no retention mechanism or heatsink included. |
