Intel P8051AH ISA Sound Card Game Port MIDI 8051 Microcontroller 16-Bit DOS

Intel P8051AH ISA Sound Card Game Port MIDI 8051 Microcontroller 16-Bit DOS

This is a vintage ISA bus sound card built around the Intel P8051AH microcontroller — Intel's 8051-architecture chip used here as the onboard MIDI and game-port controller. The card mounts in a 16-bit ISA slot and provides analog audio output, a DB-15 game/MIDI port, and 3.5mm audio jacks from a half-height bracket. Manufactured in China and bearing FCC ID HURU2022P3, this appears to be an OEM or clone-market audio card from the early-to-mid 1990s DOS/Windows 3.x era.

Specifications & What's Included

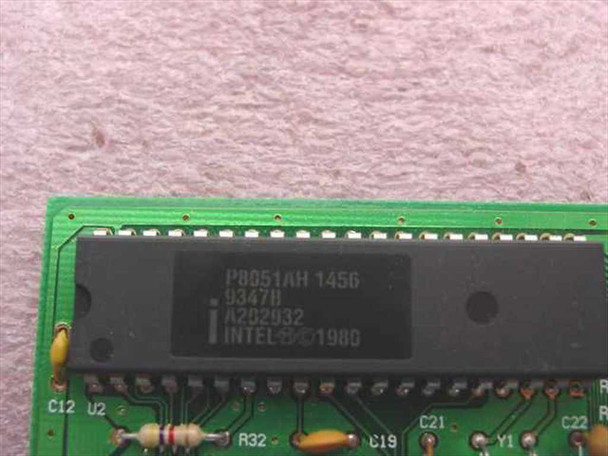

• Main controller chip: Intel P8051AH (8051-series microcontroller, date code 9347B)
• Bus interface: ISA 16-bit edge connector
• Bracket ports: DB-15 (game port / MIDI adapter), two 3.5mm audio jacks, one smaller 3.5mm jack
• Form factor: Half-height ISA card
• Country of manufacture: China
• FCC ID: HURU2022P3
• PCB marking: MADE IN CHINA, QC OK
• Card only — no driver disk, cables, or accessories included

Applications

ISA sound cards like this one were the standard audio solution for IBM-compatible PCs through the late 1980s and into the mid-1990s. They were installed in 286, 386, 486, and early Pentium-class systems running MS-DOS and Windows 3.x, enabling game audio, MIDI music playback via the DB-15 port (using a MIDI breakout cable), and basic digitized sound for multimedia and gaming. The Intel 8051 was widely adopted as a MIDI controller in this era because of its efficient handling of MIDI timing and game-port input. These cards are now primarily sought by vintage PC collectors and retro-computing enthusiasts restoring period-correct DOS gaming or early Windows machines, as well as by hobbyists exploring early MIDI and PC audio implementations.
