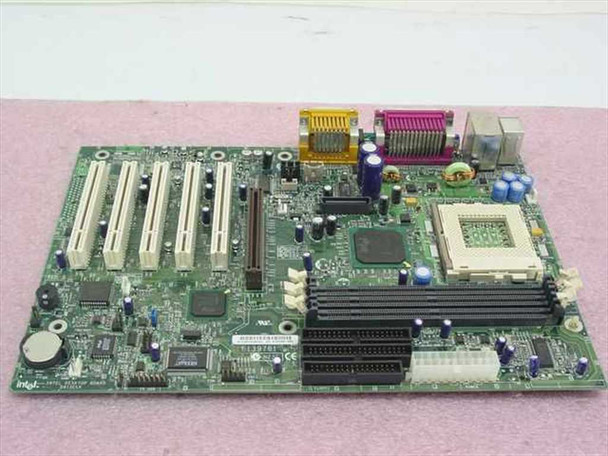

Intel D815EEA Socket 370 PIII Motherboard PGA370 815 Chipset ATX AA A10380
The Intel D815EEA is a Socket 370 ATX desktop motherboard built around Intel's 815E (i815E) chipset, designed to support Pentium III and Celeron processors in the PGA370 package. It features integrated graphics, integrated audio, and integrated LAN — making it a compact, all-in-one platform for late-era Socket 370 desktop systems. This board was manufactured in part for Micron-branded systems and carries the Intel board designation AA A10380-405.
Specifications & What's Included
- Make / Model: Intel D815EEA
- Part Number: AA A10380-405
- CPU Socket: Socket 370 (PGA370) — supports Intel Pentium III and Celeron (Socket 370)
- Chipset: Intel 815E (i815E) North Bridge + ICH2 South Bridge
- Form Factor: ATX
- Memory: 3x SDRAM DIMM slots (PC100 / PC133)
- Expansion Slots: 1x AGP, 3x PCI
- Storage: 2x ATA/100 IDE connectors, floppy connector
- Integrated Graphics: Intel 815E integrated video (shared memory); AGP slot available for discrete GPU
- Integrated LAN: Yes (visible RJ-45 port on I/O panel)
- Integrated Audio: Yes (audio jacks on I/O panel)
- I/O Panel: 2x PS/2 (keyboard/mouse), 2x USB, VGA (DB-15), LPT (parallel), 1x Serial (DB-9), RJ-45, audio in/out/mic
- Power Connector: ATX 20-pin
- BIOS Note: A jumper must be set to access the BIOS; after configuration the jumper must be returned to the normal boot position
- Board sold as bare motherboard — no CPU, RAM, or accessories included
Applications
The Intel D815EEA was a mainstream desktop platform from the early 2000s, targeting home and business PCs built around Intel's Pentium III and late-generation Celeron Socket 370 processors. The 815E chipset was Intel's last major integrated-graphics chipset for the Socket 370 platform, bridging the PC133 SDRAM era before DDR and Socket 478 Pentium 4 systems took over. Boards like this one were widely used in Micron, Dell, and white-box OEM desktop builds of that period. Today they are sought after for legacy system restoration, retro computing projects, and maintaining period-correct Windows 98/ME/2000/XP workstations where PIII compatibility is required.
This Intel D815EEA Socket 370 Pentium III ATX motherboard has been tested prior to shipment and is in good working condition. Note: this board requires a jumper to be set in order to access the BIOS. Once BIOS settings have been configured, the jumper must be moved back to its normal position to allow a standard boot. The board shows normal cosmetic wear consistent with prior use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Intel |
Model: |
D815EEA |
MPN: |
AA A10380-405 |
Secondary Model: |
A10380 |
Type: |
Desktop Motherboard |
SKU: |
19394 |
Socket Type: |
Socket 370 (PGA370) |
Chipset: |
Intel 815E (i815E) |
Form Factor: |
ATX |
Compatible CPU: |
Intel Pentium III, Celeron (Socket 370 / PGA370) |
Memory Type: |
SDRAM (PC100 / PC133) |
Memory Slots: |
3x DIMM |
Expansion Slots: |
3x PCI, 1x AGP |
I/O Ports: |
PS/2, USB, VGA, LPT, Serial, RJ-45, Audio |
Integrated Graphics: |
Intel 815E integrated (AGP slot also present) |
Integrated LAN: |
Yes |
Integrated Audio: |
Yes |
IDE Connectors: |
2x ATA/100 IDE |
Power Connector: |
ATX 20-pin |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Jumper must be set to access BIOS; reset to normal position after BIOS setup. |
Compatible With: |
Intel Pentium III / Celeron Socket 370 systems |
Board Revision: |
AA A10380-405 |
Condition Notes: |
This Intel D815EEA Socket 370 PIII ATX motherboard has been tested prior to shipment and is in good working condition. Requires jumper adjustment to access BIOS; reset jumper after setup for normal boot. Normal cosmetic wear. |
