Description

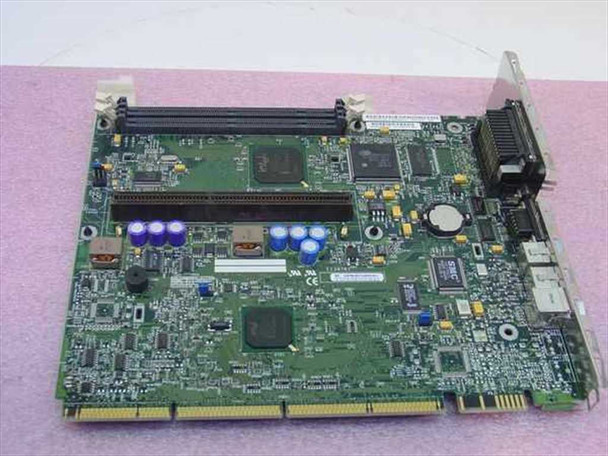

Intel AA688747-304 Pentium II Slot 1 Motherboard IULM81900119 440BX ATX
Desktop motherboard compatible with Intel Pentium II processors using Slot 1 interface. Supports up to 2 SDRAM DIMM modules and includes integrated graphics output via VGA.
Specifications & What's Included

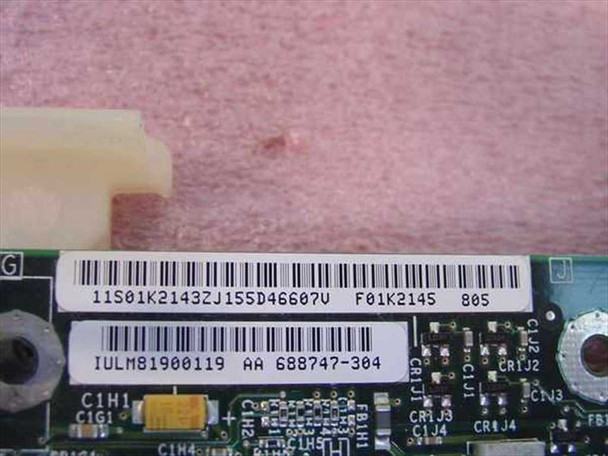

- Model: AA688747-304 / IULM81900119
- Socket Type: Slot 1 (Intel Pentium II)
- Chipset: Intel 440BX
- Form Factor: ATX
- Memory: 2x SDRAM DIMM slots
- Expansion: PCI slots

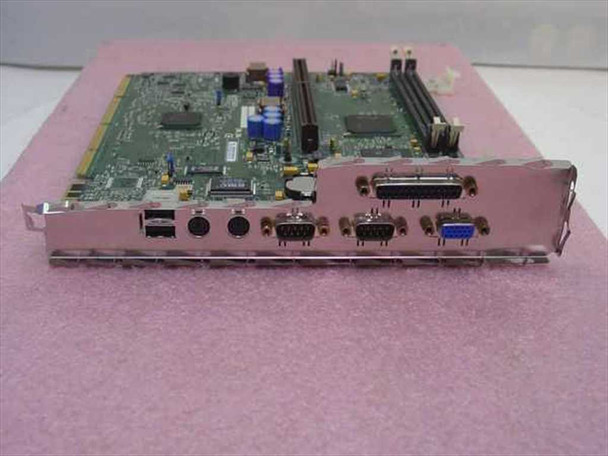

- I/O: Parallel, Serial (x2), PS/2, USB, VGA
- Board only — CPU and RAM not included
Applications
This motherboard was used in desktop systems built between 1997 and 2000. It supports Pentium II and Celeron processors and is compatible with Windows 95, 98, and early NT-based operating systems. Commonly found in office workstations and consumer-grade computers from that era. Useful for retro computing builds, vintage system restoration, or as replacement hardware for legacy systems still in operation.
Condition: Used

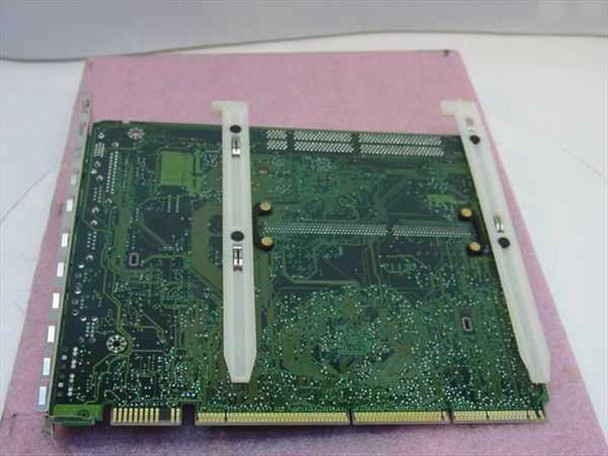

This Intel AA688747-304 Pentium II Slot 1 motherboard has been inspected and appears to be in good used condition. The board shows typical light handling wear consistent with careful removal from a system, but no cracks, burn marks, or damaged connectors are visible. The Slot 1 connector, DIMM slots, PCI slots, and rear I/O ports all look intact and undamaged. No CPU or RAM is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Intel AA688747-304 Pentium II Slot 1 motherboard has been inspected and appears to be in good used condition. The board shows typical light handling wear consistent with careful removal from a system, but no cracks, burn marks, or damaged connectors are visible. The Slot 1 connector, DIMM slots, PCI slots, and rear I/O ports all look intact and undamaged. No CPU or RAM is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Intel |
Model: |
AA688747-304 |
MPN: |
AA688747-304 |
Secondary Model: |
IULM81900119 |
SKU: |
17707 |
Type: |
Desktop Motherboard |
Socket Type: |
Slot 1 |
Compatible CPU: |
Intel Pentium II |
Chipset: |
Intel 440BX |
Form Factor: |
ATX |
Memory Type: |
SDRAM (DIMM) |
Memory Slots: |
2 |
Expansion Slots: |
PCI |
I/O Ports: |
Parallel, Serial (x2), PS/2, USB, VGA |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Board only, no CPU or RAM included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Intel AA688747-304 Pentium II Slot 1 motherboard inspected and in good used condition. No cracks or damaged connectors. Light handling wear only. Board only — no CPU or RAM included. |
