Intel AA652605-501 Socket 7 Motherboard 3 ISA 4 PCI FX66 Chipset ATX Board

(No reviews yet) Write a Review
SKU:
15217
MPN:
AA652605-501
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
  • Intel AA652605-501 Socket 7 motherboard – angled front view showing ISA and PCI expansion slots
  • Intel AA652605-501 Socket 7 motherboard – top-down overview showing full board layout

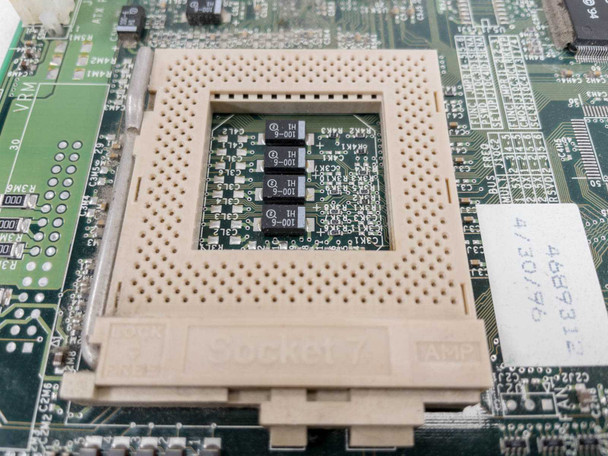

  • Intel AA652605-501 Socket 7 motherboard – close-up of empty Socket 7 CPU socket with AMP label and date code sticker

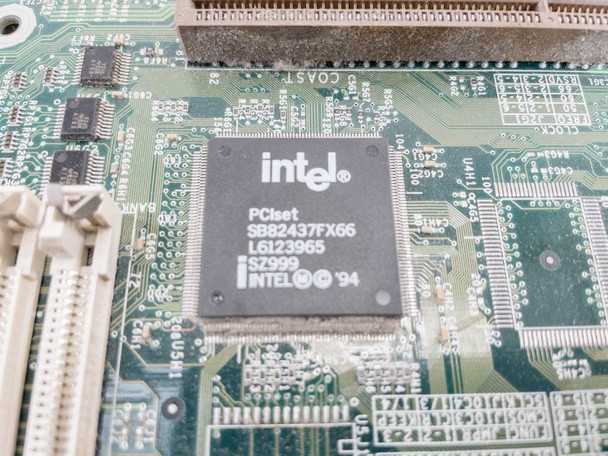

  • Intel AA652605-501 motherboard – close-up of Intel PCIset SB82437FX66 north bridge chipset chip
  • Intel AA652605-501 motherboard – close-up of Intel PCIset SB82371FB south bridge chipset chip

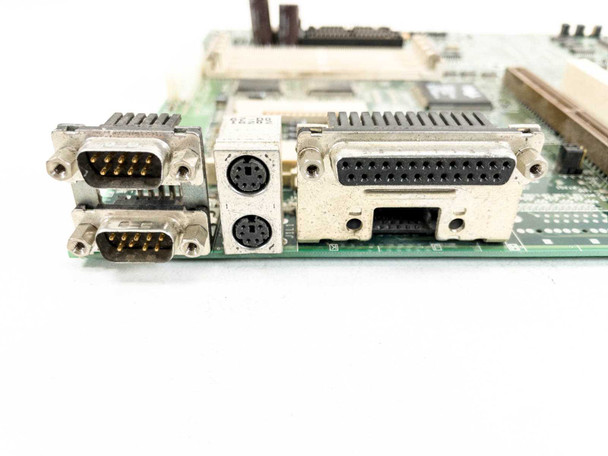

  • Intel AA652605-501 motherboard – rear I/O area showing two DB9 serial ports, two PS/2 ports, and DB25 parallel port

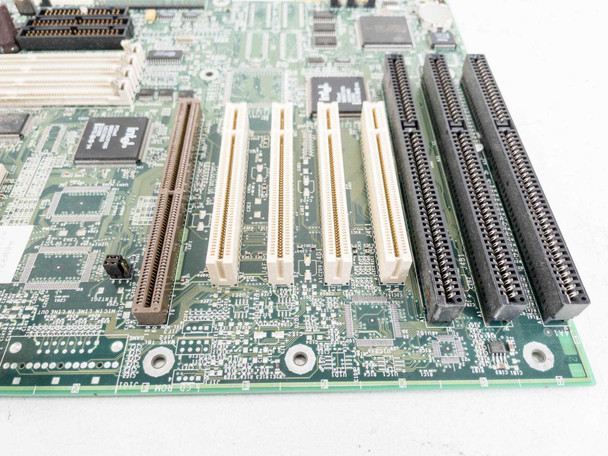

  • Intel AA652605-501 motherboard – close-up of ISA and PCI expansion slot area showing 3 ISA and 4 PCI slots

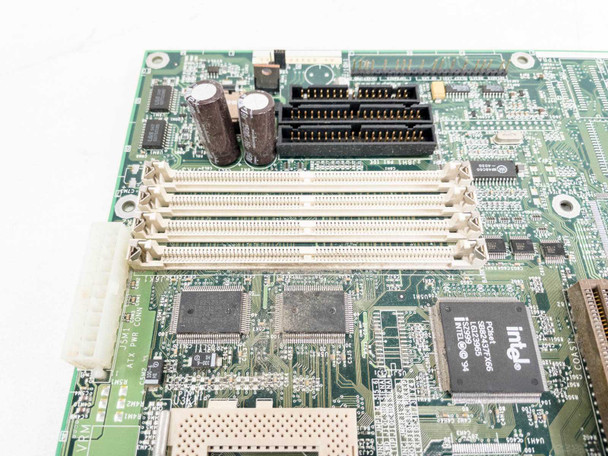

  • Intel AA652605-501 motherboard – close-up of SIMM memory slots and IDE/floppy headers near capacitors
  • Intel AA652605-501 motherboard – close-up of NSC SuperI/O chip (PC87300-100/VUL) and CMOS battery area

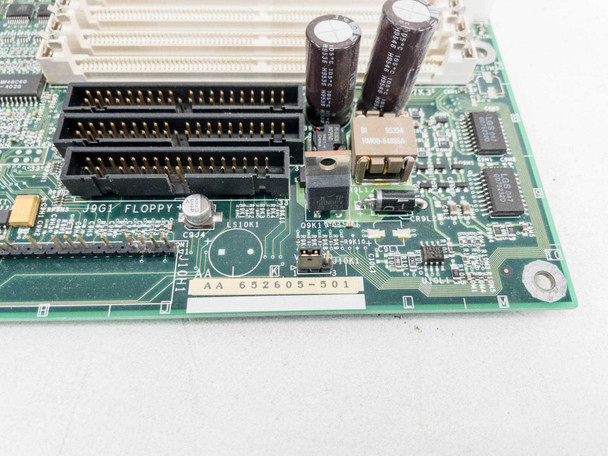

  • Intel AA652605-501 motherboard – close-up of board silkscreen label showing part number AA 652605-501 and floppy header

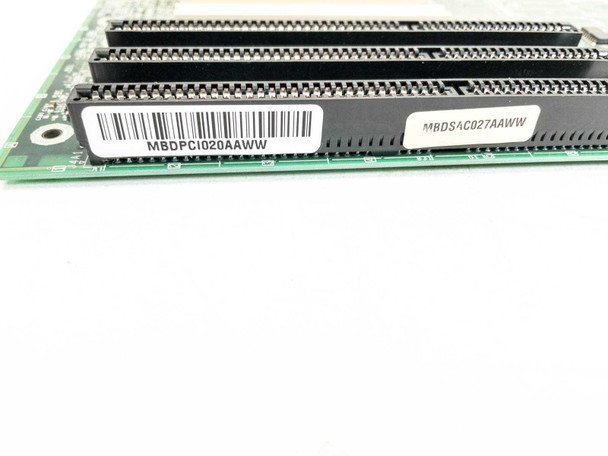

  • Intel AA652605-501 Socket 7 System Board 3 ISA 4 PCI Slots

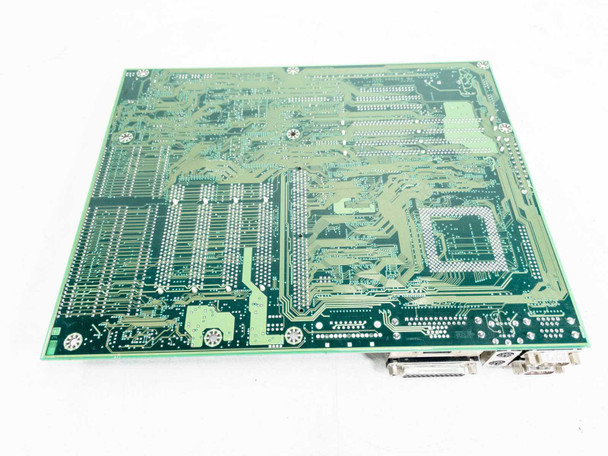

  • Intel AA652605-501 Socket 7 System Board 3 ISA 4 PCI Slots
$65.00
Was: $125.00
Current Stock: 3

Sold Out

Description

Intel AA652605-501 Socket 7 Motherboard 3 ISA 4 PCI FX66 Chipset ATX Board

Intel Socket 7 ATX motherboard with FX66 chipset. Supports Intel Pentium processors and provides connectivity through ISA and PCI expansion slots.

Specifications & What's Included

  • Socket Type: Socket 7
  • Chipset: Intel FX66 (SB82437FX66 North Bridge, SB82371FB South Bridge)
  • Expansion Slots: 3 ISA, 4 PCI
  • Memory: 4 SIMM slots
  • Storage: 2 IDE headers, 1 Floppy header
  • I/O: 2x Serial (DB9), 2x PS/2, 1x Parallel (DB25)
  • Form Factor: ATX

Applications

Socket 7 motherboards were used in systems from the mid-1990s through early 2000s, supporting Intel Pentium and Pentium MMX processors. These boards were standard in desktop and workstation builds of that era. The FX66 chipset supported concurrent CPU and peripheral operations typical of systems requiring both processing power and industrial I/O connectivity.

Condition: Used
This Intel AA652605-501 Socket 7 Motherboard has been tested at our facility and confirmed to be in working order. The board is clean overall with normal cosmetic wear consistent with prior use. The Socket 7 CPU socket, ISA slots, PCI slots, and rear I/O connectors are all present and in good physical shape. No cracks, broken traces, or damaged capacitors are visible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Intel
Model:
AA652605-501
MPN:
AA652605-501
Type:
Socket 7 Motherboard
SKU:
15217
Socket Type:
Socket 7
Chipset:
Intel FX66 PCIset (SB82437FX66 + SB82371FB)
Chipset North Bridge:
Intel SB82437FX66
Chipset South Bridge:
Intel SB82371FB
ISA Slots:
3
PCI Slots:
4
Expansion Slots:
3 ISA, 4 PCI
Memory Type:
SIMM
Memory Slots:
4 SIMM slots
I/O Ports:
2x Serial (DB9), 2x PS/2, 1x Parallel (DB25)
Storage Connectors:
IDE (2 headers), Floppy header
Form Factor:
ATX
Compatible CPU:
Intel Pentium (Socket 7)
Condition:
Used – Inspected and Tested
Country/Region of Manufacture:
United States
Seller Notes:
Board only. Tested and in working order.
Condition Notes:
Intel AA652605-501 Socket 7 motherboard has been tested and confirmed in working order. Clean overall with normal wear. Socket 7, 3 ISA, 4 PCI slots intact. Board only.
View AllClose

Related Products

Related Products

Micronics M54Pi Socket 5 motherboard 09-00208 — full top view showing PCI, ISA, and SIMM slots Micronics M54Pi motherboard — PCB bottom/solder side view
Add to Cart
Quick view

Micronics M54Pi Socket 5 Motherboard 09-00208 Intel Pentium ATX ISA PCI

Micronics

$125.00
Was: $250.00
Micronics M54Pi Socket 5 Motherboard 09-00208 Intel Pentium ATX ISA PCIThe Micronics M54Pi is a Socket 5 motherboard designed for Intel Pentium processors, manufactured by Micronics Computers Inc. It...
15264
SKU:
15264
Availability:
Usually ships within 1–2 business days.
Weight:
3.00 LBS
Brand:
Micronics
Model:
M54Pi
MPN:
09-00208
Type:
Motherboard
SKU:
15264
Socket Type:
Socket 5
Compatible CPU:
Intel Pentium (P54C) 75–200 MHz
Form Factor:
AT
Chipset:
Intel (visible on board; full part number not fully legible)
Expansion Slots:
PCI, ISA
Memory Type:
SIMM
Memory Slots:
4 x SIMM
I/O Controller:
SMC Super I/O (visible on board)
Keyboard Connector:
DIN-5 (AT keyboard connector)
Condition:
Used – Inspected and Tested
Country/Region of Manufacture:
United States
Seller Notes:
Board only; no CPU, memory, or accessories included.
Condition Notes:
Micronics M54Pi Socket 5 motherboard 09-00208 tested and in working order. Board is clean with light surface wear. No damage to connectors or traces observed. Please view photos and contact us with questions.

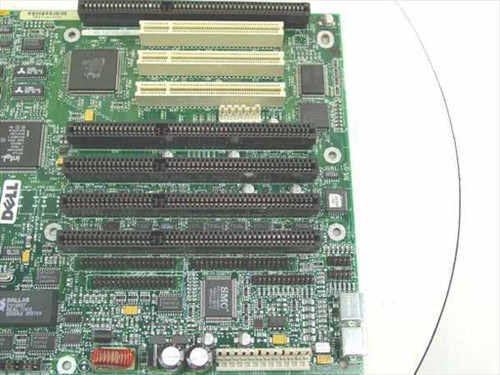

Dell 78971 Socket 5 motherboard top view showing ISA and PCI expansion slots and Intel chipset ICs Dell 78971 system board close-up of ISA slots, PCI slots, and Dallas RTC chip lower left corner
