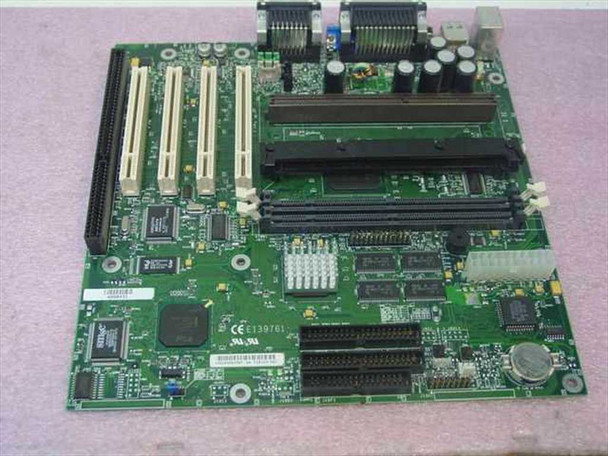

Intel AA 718142-207 Slot 1 ATX Motherboard Gateway G6-400 Series PC/PCI
The Intel AA 718142-207 is a Slot 1 ATX motherboard built for Intel's late-1990s desktop platform, designed to accept Slot 1 cartridge processors including the Pentium II and Pentium III. This board was factory-paired with Gateway G6-400 series desktop systems and carries Intel's own AA (Allen, or board-level) part number designation. The PC/PCI bus architecture bridges the legacy ISA controller to the PCI bus, and the board features an onboard VGA output alongside the standard rear I/O complement of the era.
Specifications & What's Included
- Manufacturer: Intel
- Part Number: AA 718142-207
- Board Serial / Production ID: ISRC84801907
- Form Factor: ATX
- CPU Socket: Slot 1 (Pentium II / Pentium III compatible)
- Bus Architecture: PC/PCI
- Expansion Slots: 3x PCI, 1x ISA (visible on board)
- Memory: 3x DIMM slots (SDRAM)
- Storage Interfaces: Primary IDE connector (J9F2), Secondary IDE connector (J9F1)
- Rear I/O: 2x PS/2 (keyboard/mouse), 2x USB, 2x Serial (DB-9), 1x Parallel (DB-25), 1x VGA (DB-15)
- Certifications: UL Listed, CE (E139761)
- Compatible With: Gateway G6-400c, Gateway G6-400 series desktops
- Condition: Tested and in working order
- Includes: Board only
Applications
Slot 1 motherboards like the Intel AA 718142-207 were the standard platform for Intel's Pentium II and early Pentium III processors from roughly 1997 through 2000. The Slot 1 form factor used a cartridge-style processor module — a departure from the square socket design used before and after — and was common in both consumer desktops and workstation-class machines of that period. Gateway bundled this board in its G6-400 tower systems, which were mid-to-high-end consumer and small-business desktops when new. Today these boards are sought by technicians maintaining legacy Gateway systems, collectors preserving late-1990s PC hardware, and hobbyists running period-correct Pentium II or III builds. The PC/PCI bridge architecture and onboard VGA also make this board a self-contained solution for basic display output without an add-in card.
This Intel AA 718142-207 Slot 1 ATX Motherboard has been tested at our facility and is in good working order. The board is clean overall with normal light wear consistent with previous use in a desktop system. All visible slots, ports, and connectors appear intact and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Intel |
Model: |
AA 718142-207 |
MPN: |
718142-207 |
Secondary Model: |
ISRC84801907 |
Type: |
ATX Motherboard |
SKU: |
21944 |
Socket Type: |
Slot 1 |
Form Factor: |
ATX |
Compatible With: |
Gateway G6-400c, Gateway G6-400 Series |
Processor Compatibility: |
Intel Slot 1 (Pentium II / Pentium III) |
Expansion Slots: |
3x PCI, 1x ISA (visible in photos) |
Memory Slots: |
3x DIMM slots |
IDE Connectors: |
Primary IDE (J9F2), Secondary IDE (J9F1) |
Rear I/O Ports: |
2x PS/2, 2x USB, 2x Serial, 1x Parallel, 1x VGA |
Bus Architecture: |
PC/PCI |
Certifications: |
UL, CE (E139761) |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Board only; tested and in working order |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Intel AA 718142-207 Slot 1 ATX Motherboard tested and in working order. Clean with normal light wear. All slots and I/O ports appear intact. Contact us with questions. |
