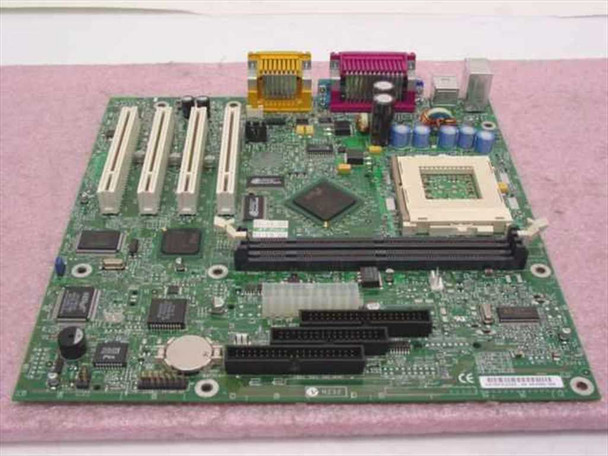

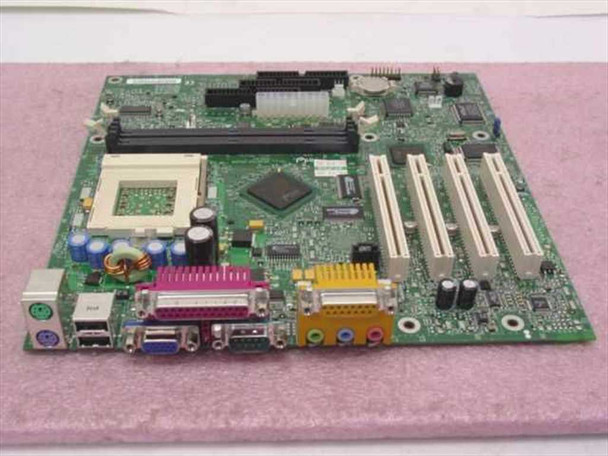

Intel CA810e A01986-306 Socket PGA370 Motherboard 810E Chipset Pentium III
The Intel CA810e (part number A01986-306) is a Socket PGA370 desktop system board built around Intel's 810E chipset. It supports the Pentium III and Celeron processor families in the PGA370 (FC-PGA) form factor and integrates several key subsystems directly on-board, reducing the need for add-in cards in a standard desktop build.
Specifications & What's Included
- Model: Intel Desktop Board CA810e
- Part Number: A01986-306
- CPU Socket: Socket PGA370 (FC-PGA)
- Chipset: Intel 810E
- Supported CPUs: Pentium III 500–800 MHz (850 MHz–1000 MHz requires BIOS update); Celeron 366–533 MHz (566–900 MHz requires BIOS update)
- Memory: 2x SDRAM DIMM slots (PC100/PC133)
- Integrated Audio: SoundBlaster 64-V (on-board)
- Storage: Ultra ATA/66 IDE controller (integrated)
- Expansion Slots: 1x AGP, 3x PCI (visible in photos)
- Rear I/O: PS/2 keyboard & mouse, USB, VGA (integrated 810E graphics), DB-9 serial, DB-25 parallel, audio jacks
- Front-panel header: J9F2/J10B1 — HD LED, PWR LED, Reset, PWR ON, IR (per PCB silkscreen)
- Form Factor: Micro-ATX
- Included: Board only — no CPU, RAM, or accessories
Applications
The Intel CA810e dates from the late-1990s/early-2000s era of Intel's 810-series chipset platform, which brought integrated graphics and audio to mainstream desktop PCs at a time when those features typically required separate add-in cards. The 810E variant added support for faster front-side bus speeds, enabling the higher-end Pentium III clock rates. These boards were widely used in corporate desktops, small-form-factor builds, and budget home systems of that generation. Today the CA810e is sought by collectors and hobbyists restoring period-correct Pentium III or late-Celeron systems, as well as users maintaining legacy DOS/Windows 98/Windows 2000 and early Windows XP machines that depend on the integrated SoundBlaster-compatible audio or the ISA-less 810E platform. The integrated Intel 752 graphics (part of the 810E hub) output through the rear VGA port, making the board self-contained for basic display tasks without any AGP card installed.
This Intel CA810e A01986-306 Socket PGA370 motherboard has been tested at our facility and is in good working condition. The board is clean with no visible physical damage, cracked traces, or missing components. Capacitors appear intact. Normal light handling marks are present on the PCB. Sold as a board only — no CPU, RAM, or accessories are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Intel |
Model: |
CA810e |
MPN: |
A01986-306 |
SKU: |
29588 |
Type: |
Desktop Motherboard / System Board |
Socket Type: |
Socket PGA370 |
Chipset: |
Intel 810E |
Form Factor: |
Micro-ATX |
Compatible Processors: |
Pentium III 500–800MHz; Celeron 366–533MHz |
CPU Support (BIOS Update): |
Pentium III 850–1000MHz; Celeron 566–900MHz |
Integrated Audio: |
SoundBlaster 64-V (integrated) |
Storage Interface: |
Ultra ATA/66 IDE controller |
Expansion Slots: |
3x PCI, 1x AGP (visible in photos) |
Memory Slots: |
2x SDRAM DIMM slots |
Rear I/O Ports: |
PS/2 keyboard & mouse, USB, VGA, parallel, serial, audio |
Country/Region of Manufacture: |
United States |
Compatible With: |
Intel Pentium III / Celeron PGA370 processors |
Seller Notes: |
Board only; no CPU, RAM, or accessories included. |
Condition Notes: |
This Intel CA810e A01986-306 PGA370 motherboard has been tested and is in good working condition. Board only — no CPU or RAM included. Normal light handling marks; no damage visible. |
