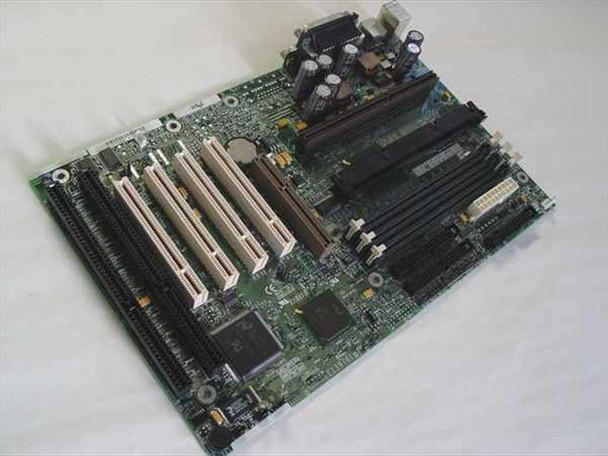

Intel AL440LX 681797-401 ATX Motherboard Slot 1 PCI ISA USB AGP LX Chipset
The Intel AL440LX is an ATX form-factor desktop motherboard built around the Intel 440LX AGPset chipset. It accepts Slot 1 SEC-cartridge processors — Intel Pentium II and Pentium II Xeon — and supports SDRAM and EDO DRAM via four DIMM slots. This board represents Intel's own reference-class desktop platform from the late 1990s Pentium II era, designed for mainstream desktop and workstation builds on the 440LX platform.
Specifications & What's Included
- Part Number: 681797-401
- Board ID: IMAL81918098
- Form Factor: ATX
- Chipset: Intel 440LX AGPset
- CPU Slot: Slot 1 (SEC cartridge — Pentium II / Pentium II Xeon)
- RAM: 4 x DIMM slots (SDRAM / EDO DRAM)
- Expansion: 4 x PCI, 3 x ISA, 1 x AGP
- Power: ATX 20-pin connector
- Rear I/O: 2 x PS/2 (keyboard & mouse), 2 x USB, 1 x DB25 parallel, 2 x DB9 serial
- Board only — no CPU, RAM, or accessories included
Applications
The AL440LX was Intel's own desktop board for the Slot 1 Pentium II platform, introduced in 1997 alongside the 440LX chipset. It targeted mainstream desktop PCs and entry-level workstations during the period when the Pentium II (233–450 MHz) was Intel's primary desktop processor. The 440LX chipset introduced AGP graphics support and 66 MHz front-side bus operation to the Pentium II platform, replacing the older 440FX. Today these boards are sought by vintage PC enthusiasts, collectors, and anyone maintaining late-1990s Pentium II systems or building period-correct retro PCs. The combination of ISA and PCI slots makes it particularly compatible with the broad range of legacy expansion cards from that era.
This Intel AL440LX 681797-401 Slot 1 ATX motherboard has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The board is clean overall with normal cosmetic wear consistent with age and prior use. The expansion slots, rear I/O ports, DIMM slots, and Slot 1 connector all appear intact and undamaged in the photos. No broken traces, burnt areas, or obviously missing components are visible. Please review all photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Intel |
Model: |
AL440LX |
MPN: |
681797-401 |
Secondary Model: |
IMAL81918098 |
Type: |
ATX Motherboard |
SKU: |
22187 |
Chipset: |
Intel 440LX |
CPU Socket / Slot: |
Slot 1 (SEC) |
Compatible Processors: |
Intel Pentium II, Pentium II Xeon |
Form Factor: |
ATX |
RAM Slots: |
4 x DIMM (SDRAM / EDO) |
Memory Type: |
SDRAM / EDO DRAM |
Expansion Slots: |
4x PCI, 3x ISA, 1x AGP |
USB Ports: |
2 x USB (rear I/O) |
Serial Ports: |
2 x DB9 (COM1, COM2) |
Parallel Port: |
1 x DB25 (LPT1) |
PS/2 Ports: |
2 x PS/2 (keyboard and mouse) |
Power Connector: |
ATX 20-pin |
Country/Region of Manufacture: |
Malaysia |
Seller Notes: |
Board only; no CPU, RAM, or accessories included. |
Condition Notes: |
This Intel AL440LX 681797-401 Slot 1 ATX motherboard has been inspected and appears to be in good used condition, pulled from a working environment. Normal cosmetic wear; slots and ports look intact. Please contact us with any questions. |
