Ingersoll Rand TMS 0140 Refrigerated Compressed Air Dryer 140 SCFM 230V

Ingersoll Rand TMS 0140 Refrigerated Compressed Air Dryer 140 SCFM 230V

The Ingersoll Rand TMS 0140 is a thermal mass cycling refrigerated compressed air dryer rated for 140 SCFM. It removes moisture from compressed air by cooling the air stream to a low dew point using a refrigeration circuit charged with R134a, causing water vapor to condense and drain away before the dry air continues downstream. The unit runs on 230V single-phase, 60 Hz power and sits on an integral skid-style steel base frame for floor-mounted installation.

Specifications & What's Included

• Model: Ingersoll Rand TMS 0140
• CCN: 42528851
• Options: O3 HAK, I7 T. Gauge, I3 ZLD
• Airflow capacity: 140 SCFM
• Electrical supply: 230V, single phase, 60 Hz
• Max air pressure: 232 psi (16 bar)
• Ambient temperature range: 32°F – 110°F (0°C – 43°C)
• Max inlet air temperature: 131°F (55°C)
• Refrigerant: R134a — factory charge 1.76 lbs (0.8 kg)
• Refrigerant design pressure: Low 174 psi (12 bar) / High 261 psi (18 bar)
• Compressor power: 0.55 kW
• Fan power: 0.085 kW
• Lubricant type: Polyolester

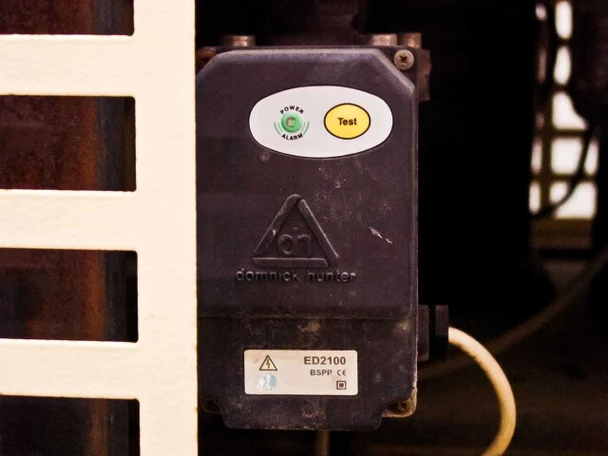

• Condensate drain: Domnick Hunter ED2100 electronic drain (BSPP, CE-marked)

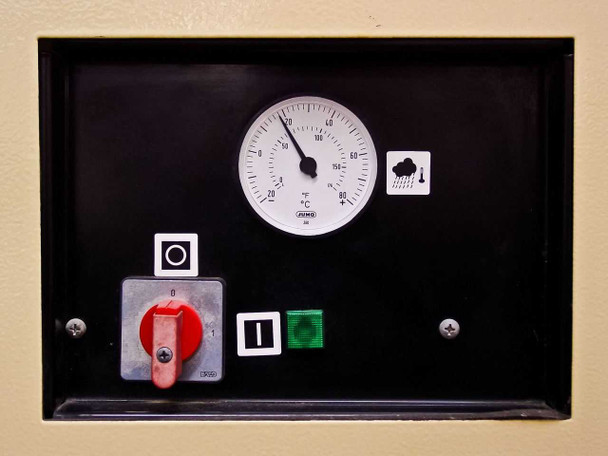

• Front control panel: Jumo analog dew point thermometer, red rotary on/off switch, green indicator button
• Air connections: threaded pipe fittings (inlet and outlet on left side of cabinet)
• Electrical connection: hardwired power inlet with exposed lead wires

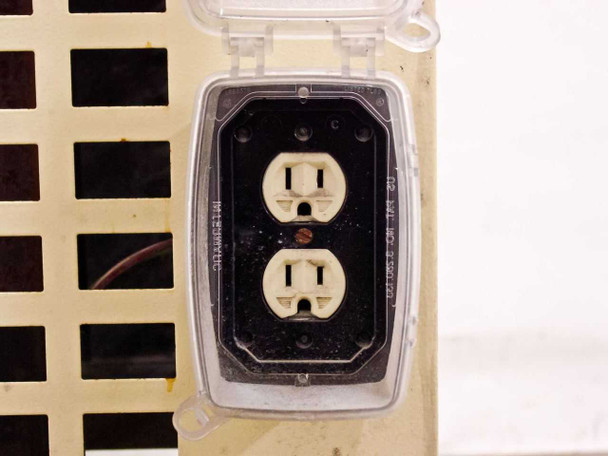

• Auxiliary 120V duplex outlet on side panel with weatherproof cover

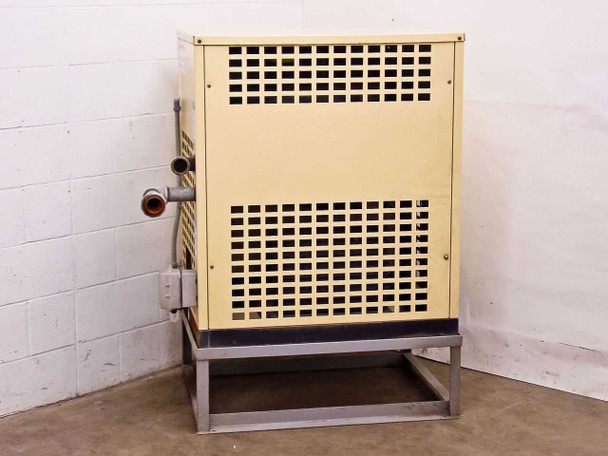

• Form factor: floor-standing, skid-mounted cabinet with louvered ventilation panels
• Cabinet finish: cream powder-coat steel enclosure

Applications

Refrigerated compressed air dryers like the TMS 0140 are standard equipment in industrial compressed air systems wherever moisture in the air line would cause problems — corrosion in piping and equipment, contamination of pneumatic tools and processes, or interference with instrumentation and controls. The TMS series uses a thermal mass (cycling) design, which means the refrigeration compressor cycles on and off as demand changes, saving energy compared to non-cycling designs. At 140 SCFM capacity, this unit is sized for medium-duty industrial applications such as manufacturing plants, machine shops, paint booths, food and beverage processing lines, and general industrial facilities running rotary screw or reciprocating air compressors in the 25–50 HP range. Ingersoll Rand's TMS series was a widely deployed product line in North American industry during the 1990s and 2000s and replacement parts, refrigerant service, and rebuild support remain available through Ingersoll Rand's compressed air products network.
