Description
InFocus LP1200 LCD Projector For Parts No Lamp 850C044C10 RGB Video S-Video

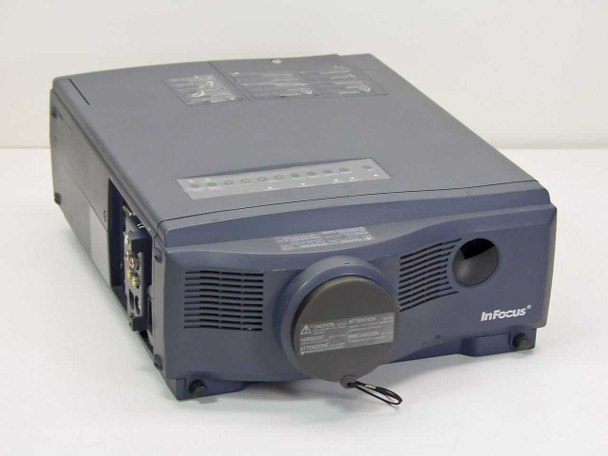

The InFocus LP1200 is a large-format LCD projector produced in the late 1990s, designed for boardroom, auditorium, and large-venue presentations. It uses a three-panel LCD optical engine to produce a bright image from a high-intensity discharge lamp. This unit is being sold for parts or repair — the projection lamp is missing and the adjustable front leveling feet are absent. The chassis, lens, rear input panel, front controls, and card expansion slots are all physically present and appear intact.
Specifications & What's Included
- Brand: InFocus
- Model: LP1200
- Part Number: 850C044C10
- Power Input: AC 100–240V, 50/60Hz, 5A (universal voltage)
- Country of Manufacture: Japan
- Display Technology: LCD (3-panel)
- Projection Lens: Multi-element glass lens assembly (present and intact)
- Front Control Panel: Power, RGB, Video, Card, Menu, Fine, Focus/Zoom, Auto Position, Enter
- Status Indicators: Lamp, Temp, Card 1, Card 2
- Rear Inputs: 3x RGB/VGA (HD-15), S-Video (Mini-DIN), 2x Composite Video (RCA), Audio (RCA), RS-232C, AC IEC inlet
- Expansion: 2x card slots (CARD 1, CARD 2) — top-mounted PCMCIA-style bay, lid present
- Projection Lamp: Not included (missing)
- Adjustable Front Feet: Not included (missing)
Applications
The InFocus LP1200 was a high-end large-venue LCD projector from the late 1990s, aimed at corporate conference rooms, university lecture halls, and rental/staging companies that needed high output and flexible connectivity. The LP1200 series supported multiple input types simultaneously — analog RGB from computers, composite and S-Video from video sources — making it versatile for mixed-media presentations. The dual card expansion slots allowed for optional interface cards, including wireless and network adapters available at the time. Units like the LP1200 are still sought by technicians and repair shops for parts, lamp housings, lens assemblies, and optical components, as well as by vintage AV collectors. This unit would also suit a buyer needing a donor chassis, lens, or input board for another LP1200 in service.
This InFocus LP1200 LCD Projector is being sold as-is for parts or repair. The projection lamp is missing, and the adjustable front feet used to raise and angle the projector are also absent. The unit has not been tested and no functionality is guaranteed. The chassis, lens assembly, rear input panel (RGB, S-Video, composite, RS-232C), front control panel, and card expansion slots all appear physically intact based on inspection. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
InFocus |
Model: |
LP1200 |
MPN: |
850C044C10 |
SKU: |
38946 |
Type: |
LCD Projector |
Condition: |
As-Is / For Parts or Not Working |
Power Requirements: |
AC 100-240V, 50/60Hz, 5A |
Country/Region of Manufacture: |
Japan |
Input Connections: |
RGB (VGA), S-Video, Composite Video, RS-232C |
Form Factor: |
Desktop |
Expansion Slots: |
2x card slots (CARD 1, CARD 2) |
Lamp Included: |
No |
Adjustable Feet Included: |
No |
Seller Notes: |
Sold for parts or repair. Lamp and adjustable feet are missing. |
Condition Notes: |
InFocus LP1200 LCD Projector sold as-is for parts or repair. Missing lamp and adjustable feet. Not tested, no functionality guaranteed. Chassis and input connections appear physically intact. Photos available. |
