Generic

Industrial Open Frame Power Transformer Multi-Tap Terminal Board Laminated Core

(No reviews yet) Write a Review
SKU:
52536
MPN:
Electric
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
18.00 LBS
  • Industrial open-frame laminated core power transformer — front-left view showing wrapped bobbin winding, steel frame with surface oxidation, and red PCB terminal board on top

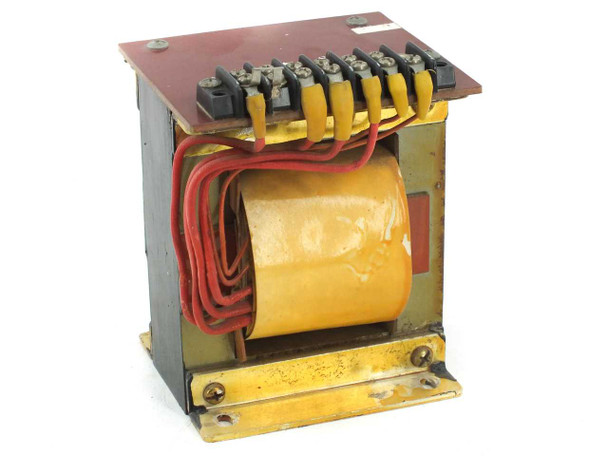

  • Industrial open-frame power transformer — right-side view showing multi-tap screw terminal board, red and yellow lead wires, wrapped coil, and yellow-painted steel base frame

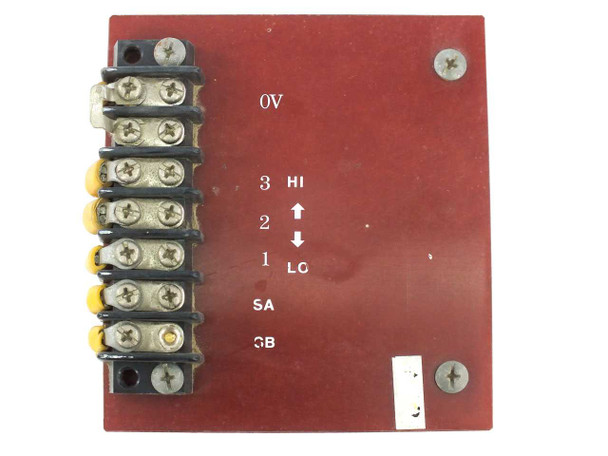

  • Close-up of red PCB multi-tap terminal board showing screw terminals labeled 0V, 1, 2, 3 HI/LO, SA, and GB with yellow wire insulation sleeves
Call us at (805) 648-3300
Current Stock: 1

Sold Out

Description

Industrial Open Frame Power Transformer Multi-Tap Terminal Board Laminated Core

Open-frame laminated core power transformer with multi-tap winding configuration. Designed for step-up or step-down voltage conversion in industrial control and telecom equipment.

Specifications & What's Included

  • Form Factor: Open Frame / Panel Mount
  • Core Type: Laminated Steel EI Core
  • Winding: Paper/Tape Wrapped Bobbin, Multi-Tap Configuration
  • Tap Labels: 0V, 1, 2, 3 HI/LO, SA, GB
  • Terminals: Screw Terminal Block (PCB-mounted)
  • Mounting: Base Flange with Bolt Holes
  • Unit Only — No Accessories Included

Applications

Multi-tap transformers are commonly used in industrial power distribution, control circuit isolation, and telecommunications equipment. The tap configuration allows flexible voltage selection for equipment requiring multiple supply voltages or retrofit installations where primary voltage differs from transformer nameplate specifications.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This industrial open-frame power transformer has been visually inspected and appears to be in good used condition. The unit has not been powered or bench-tested at our facility. The steel frame and base show surface oxidation and general age-related wear consistent with prior industrial use. The laminated core, bobbin winding, and lead wires appear intact with no obvious damage observed. The red PCB terminal board is present and the screw terminals appear complete. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unknown / Unbranded
Model:
Unknown
MPN:
Unknown
SKU:
52536
Condition:
Used – Inspected
Form Factor:
Open Frame / Panel Mount
Transformer Type:
Laminated Core Power Transformer
Winding Configuration:
Multi-Tap
Terminal Type:
Screw Terminal Block (PCB-mounted)
Tap Labels:
0V, 1, 2, 3 HI/LO, SA, GB
Core Type:
Laminated Steel EI Core
Insulation:
Paper/Tape Wrapped Bobbin Winding
Mounting:
Base Flange with Bolt Holes
Seller Notes:
Unit only — no additional accessories included.
Country of Manufacture:
Unknown
Condition Notes:
Used industrial open-frame power transformer. Visually inspected — not bench-tested at our facility. Steel frame shows surface oxidation; core, winding, and terminal board appear intact. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

Open frame laminated core power transformer front view showing EI core, mounting feet, and multi-tap screw terminal block on top Open frame laminated core power transformer angled rear-right view showing red secondary winding leads routed to screw terminal block
Quick view

Open Frame Laminated Core Power Transformer Screw Terminal Block Multi-Tap

Generic

Open Frame Laminated Core Power Transformer Screw Terminal Block Multi-Tap Used open frame power transformer with laminated EI core and multi-tap configuration. Designed for step-up or step-down...
52537
SKU:
52537
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Brand:
Unknown / Unbranded
Model:
Unknown
SKU:
52537
Condition:
Used – Inspected
Form Factor:
Open Frame / Chassis Mount
Core Type:
Laminated EI Core
Terminal Type:
Screw Terminal Block, Multi-Tap
Winding Configuration:
Multi-tap (primary and secondary taps visible)
Lead Color:
Red secondary leads visible
Seller Notes:
Unit only — no documentation included. Brand and specs not labeled.
Country of Manufacture:
Unknown
Condition Notes:
Used open frame laminated core power transformer. Inspected; not powered or tested at our facility. Shows surface oxidation and age wear. Terminal blocks intact, leads present. No brand or rating label visible. See photos.
Industrial open core laminated power transformer 130434-2 – front three-quarter view showing red mounting plate, yellow coil winding, and top screw terminal block Industrial open core laminated power transformer 130434-2 – rear three-quarter view showing multiple tapped screw terminals and laminated core construction
Add to Cart
Quick view

Industrial Power Transformer Open Core Laminated w/ Terminal Block 130434-2

Generic

$40.00
Was: $80.00
Industrial Power Transformer Open Core Laminated w/ Terminal Block 130434-2 This is an open-frame, laminated-core industrial power transformer with a multi-tap screw terminal block. The unit...
52534
SKU:
52534
Availability:
Usually ships within 1-2 business days.
Weight:
38.00 LBS
Brand:
Unknown / Generic
Model:
130434-2
MPN:
130434-2
SKU:
52534
Condition:
Used – Inspected
Form Factor:
Open Frame / Chassis Mount
Transformer Type:
Open Core Laminated
Terminal Type:
Multi-Tap Screw Terminal Block
Core Construction:
Laminated Steel Core
Winding Color:
Yellow (visible coil winding)
Seller Notes:
Sold as-is. Unit only — no additional accessories included.
Condition Notes:
This industrial open-core transformer (130434-2) has been visually inspected and is in good used condition. Core and winding intact. Terminal block shows normal wear. Not tested at our facility.
Open frame laminated core power transformer with copper windings and screw terminal block — front-left angled view Open frame power transformer showing copper coil windings, multi-tap screw terminal block, and mounting feet — front-right angled view
Add to Cart
Quick view

Open Frame Power Transformer Laminated Core Screw Terminal Block Used Surplus

Generic

$40.00
Was: $80.00
Open Frame Power Transformer Laminated Core Screw Terminal Block Used Surplus This is a used open frame power transformer built around a laminated EI core with copper windings. The unit features a...
52535
SKU:
52535
Availability:
Usually ships within 1-2 business days.
Weight:
34.00 LBS
Brand:
Unknown / Unbranded
Model:
Unknown
SKU:
52535
Condition:
Used – Inspected
Form Factor:
Open Frame / Chassis Mount
Core Type:
Laminated EI Core
Winding Type:
Copper Wound
Terminal Type:
Multi-Position Screw Terminal Block
Seller Notes:
Sold as-is, untested. Inspected and in good used condition.
Type:
Power Transformer
Condition Notes:
This open frame laminated core power transformer has been inspected and is in good used condition. It has not been tested at our facility. Surface wear and minor rust on mounting base noted. Please contact us with any questions.

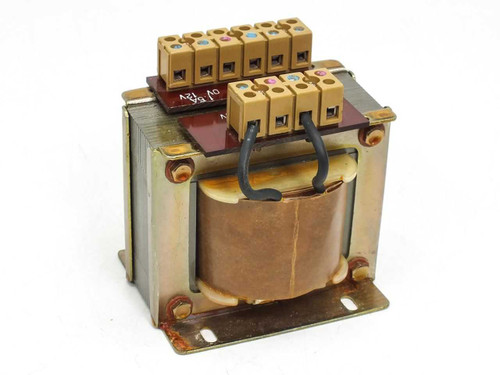

Hirao Denki 72VA transformer front view showing label with CAP 72VA 50/60Hz rating and screw terminal block Hirao Denki 72VA transformer rear-left view showing laminated core, copper winding, and terminal block wiring
