Description
IMS PD14-2334-FL3 I/O Interface Cable Kit MDrive Power Drive PLUS2 Motion Control
This is the IMS (Intelligent Motion Systems) PD14-2334-FL3 I/O Interface and Prototype Development Cable Kit designed for the MDrive Power Drive PLUS2 motion control system. The kit provides the cabling needed to connect a Power Drive PLUS2 unit to external I/O and a power source, and to prototype or test control wiring during system development. All cables are new and unused in the original sealed IMS poly bag.
Specifications & What's Included
- Manufacturer: IMS — Intelligent Motion Systems, Inc. (Marlborough, CT)
- Kit Part Number: PD14-2334-FL3
- Quantity: 1 kit (QTY: 1 per bag label)
- PD14-2334-FL3 I/O Interface / Prototype Development Cable — 10 ft
- PD02-2300-FL3 Prototype Development Cable — 10 ft
- 3-Prong AC Power Cable — 7 ft
- Connectors visible: multi-pin circular locking connector (motor/drive end), white IDC multi-pin header, standard 3-prong NEMA 5-15 AC plug, and bare wire terminations
- Cable jacket colors: black (I/O/power), tan/beige (prototype development)
- Compatible system: IMS MDrive Power Drive PLUS2
Applications
The IMS MDrive Power Drive PLUS2 is a compact integrated stepper motor and driver system used in industrial automation and motion control applications. The PD14-2334-FL3 cable kit is the interface accessory that allows users to connect the Power Drive PLUS2 to external I/O lines, power, and prototype/development hardware during system integration or testing. These cables are commonly used in laboratory prototype setups, machine design benches, and production automation systems where engineers need to quickly wire up and evaluate MDrive motion control units before committing to a final wiring harness. The prototype development cable in particular is a go-to tool for engineers working through the initial stages of a motion control design, enabling direct connection to a test fixture or breadboard environment without custom wiring.

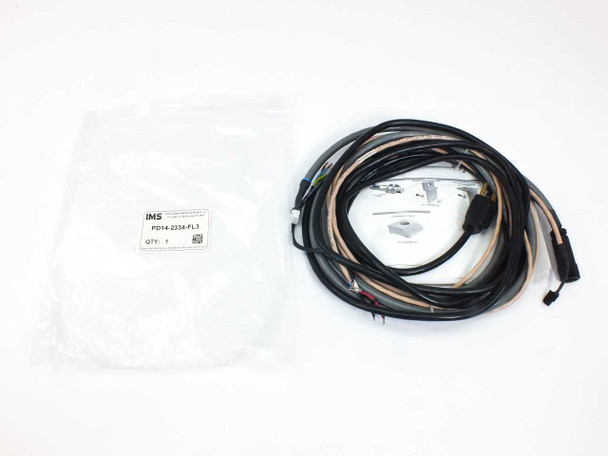

This IMS PD14-2334-FL3 MDrive Power Drive PLUS2 Motion Control Cable Kit is new and unused. The cables are in original factory condition — no wear, no fraying, and no connector damage. The kit ships in the original sealed poly bag with the IMS part number label intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IMS (Intelligent Motion Systems) |
Model: |
PD14-2334-FL3 |
MPN: |
PD14-2334-FL3 |
Secondary Model: |
PD02-2300-FL3 |
SKU: |
49094 |
Type: |
Motion Control Cable Accessory Kit |
Compatible With: |
IMS MDrive Power Drive PLUS2 |
Includes: |
PD14-2334-FL3 I/O Interface Cable 10', PD02-2300-FL3 Dev Cable 10' |
Also Includes: |
3-Prong Power Cable 7' |
Cable Length 1: |
10 ft (I/O Interface / Prototype Development Cable) |
Cable Length 2: |
7 ft (3-Prong Power Cable) |
Connector Type: |
Multi-pin circular connector, 3-prong AC power plug, IDC header |
Application: |
Motion Control — MDrive Power Drive PLUS2 I/O & Prototype Dev |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes PD14-2334-FL3 I/O cable (10'), PD02-2300-FL3 dev cable (10'), and 3-prong power cable (7'). Qty: 1 kit. |
Condition Notes: |
This IMS PD14-2334-FL3 MDrive Power Drive PLUS2 cable kit is new and unused in the original sealed poly bag. All cables are in factory condition with no wear or damage. |
