Description
iLand XSS11-45 45W 12V Amorphous Flexible Solar Panel Battery Charger NOS
Amorphous thin-film flexible solar panel rated at 45W peak power output for 12V battery charging systems. Rollable form factor with solder-point connections suitable for off-grid installations and portable applications.
Specifications & What's Included
- Peak Power (Pmax): 45W at 12V system voltage
- Maximum Power Voltage: 16V DC; Current: 1.8A
- Open Circuit Voltage: 26V DC; Short Circuit Current: 1.5A
- 11 amorphous solar cells, 13-3/8" W x 4-1/2" L each
- Total cell exposure: 13-3/8" W x 50" L
- Dimensions untrimmed: 24" W x 59" L; trimmable to 19" W x 55" L
- Rolled-up diameter approximately 8"
- Solder-point connections with protective top-sheet cover
Applications
Amorphous flexible solar panels are used in off-grid battery charging systems, portable solar power setups, and applications where rigid panels are impractical. This technology performs adequately in low-light and partial-shade conditions. Compatible with standard 12V battery systems including RVs, marine installations, remote cabins, and emergency backup power.
Condition: Used

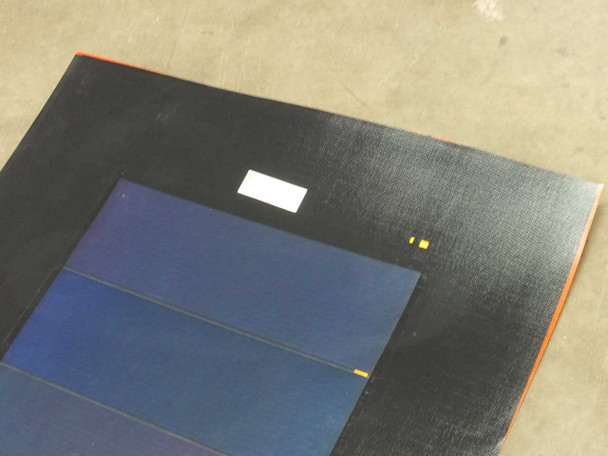

This iLand XSS11-45 45W Amorphous Flexible Solar Panel is New Old Stock sourced directly from Xunlight's warehouse in the USA — unused and never installed. The panel is in good condition overall, consistent with storage. The orange backing is clean with minor surface scuffs from handling, and the solar cell surface appears intact with no visible damage. The electrical connection solder points are covered by the top-sheet; the two yellow squares near the manufacturer's logo will need to be carefully uncovered with small tools before use. This is the untrimmed version measuring 24" wide by 59" long; it can optionally be trimmed to the finished size of 19" wide by 55" long by the end user. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This iLand XSS11-45 45W Amorphous Flexible Solar Panel is New Old Stock sourced directly from Xunlight's warehouse in the USA — unused and never installed. The panel is in good condition overall, consistent with storage. The orange backing is clean with minor surface scuffs from handling, and the solar cell surface appears intact with no visible damage. The electrical connection solder points are covered by the top-sheet; the two yellow squares near the manufacturer's logo will need to be carefully uncovered with small tools before use. This is the untrimmed version measuring 24" wide by 59" long; it can optionally be trimmed to the finished size of 19" wide by 55" long by the end user. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
iLand |
Model: |
XSS11-45 |
MPN: |
XSS11-45 |
Type: |
Amorphous Flexible Solar Panel |
SKU: |
52108 |
Seller Notes: |
New Old Stock; solder-point connections; top-sheet covers solder points |
Country/Region of Manufacture: |
United States |
Technology: |
Amorphous Thin Film |
Peak Power (Pmax): |
45W |
System Voltage: |
12V |
Maximum Power Voltage (Vmp): |
16V DC |
Maximum Power Current (Imp): |
1.8A |
Open Circuit Voltage (Voc): |
26V DC |
Short Circuit Current (Isc): |
1.5A |
Number of Solar Cells: |
11 |
Cell Dimensions: |
13-3/8" W x 4-1/2" L each |
Total Cell Exposure Area: |
13-3/8" W x 50" L |
Dimensions (Untrimmed): |
24" W x 59" L |
Dimensions (Trimmed Final): |
19" W x 55" L |
Rolled-Up Diameter: |
8" (approximate) |
Connector Type: |
Solder Point |
Form Factor: |
Flexible / Rollable |
Condition: |
New Old Stock (NOS) |
Compatible With: |
12V battery charging systems, off-grid solar setups |
Application: |
Battery charging, off-grid, portable solar power |
Condition Notes: |
iLand XSS11-45 45W flexible amorphous solar panel — New Old Stock from Xunlight's USA warehouse. Unused, never installed. Good storage condition. Solder points covered by top-sheet; uncover carefully before use. |
