ICS Advent RMX-17CRT/TS 17in Rackmount CRT Monitor 1280x1024 VGA 110MHz 100-240V

ICS Advent RMX-17CRT/TS 17in Rackmount CRT Monitor 1280x1024 VGA 110MHz 100-240V

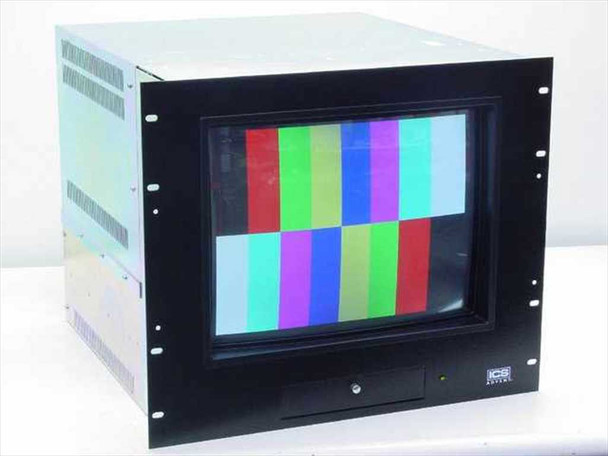

The ICS Advent RMX-17CRT/TS is a 17-inch diagonal rackmount CRT monitor designed for industrial, military, and mission-critical computing environments where a space-efficient, rack-integrated display is required. Built by Industrial Computer Source (ICS Advent) in San Diego, California, it features a flat square tube (FST) CRT with an Invar shadow mask and a dark-tinted, non-glare etched screen surface — characteristics chosen to reduce ambient light reflection and eye fatigue in demanding operational settings. The unit mounts directly in a standard equipment rack and carries both UL and CE certifications.

Specifications & What's Included

• Model: RMX-17CRT/TS
• CD Part No.: 24E01709630
• Screen size: 17 inches diagonal
• Display type: FST (Flat Square Tube) CRT with Invar shadow mask
• Screen surface: Dark-tinted, non-glare etched
• Dot pitch: 0.27mm
• Maximum resolution: 1280 × 1024 at 65Hz non-interlaced (NI)
• Video bandwidth: 110 MHz (dot rate)
• Horizontal scanning frequency: 30–70 kHz
• Vertical scanning frequency: 50–120 Hz
• Factory preset memory modes: 11
• Video input: VGA (HD-15)

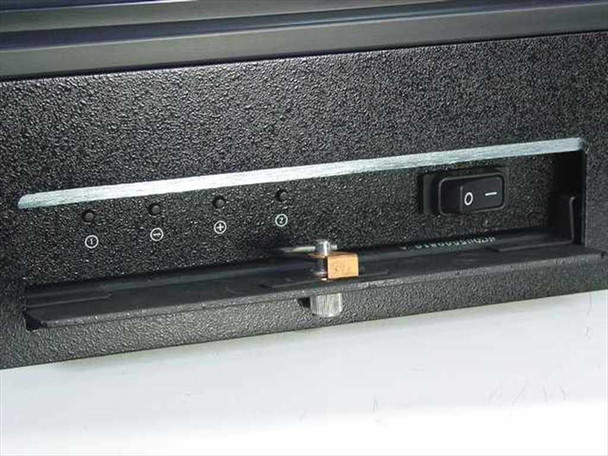

• OSD controls: contrast, brightness, horizontal/vertical size and position, rotation, color selection, language, display frequency, and additional adjustments
• Power input: 100–240V AC, 50/60 Hz, 2.0A (universal input)
• Maximum power consumption: 120W
• Form factor: Rackmount

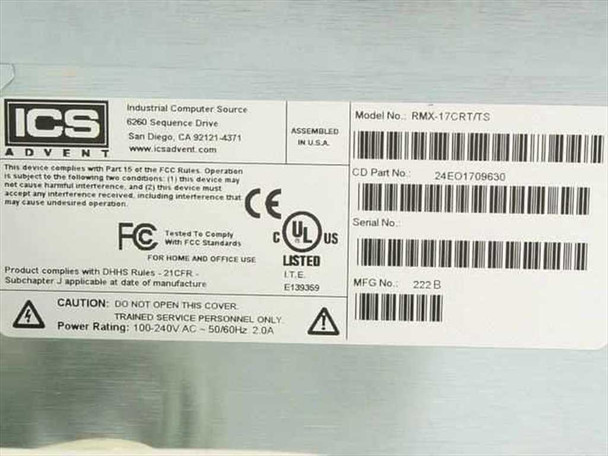

• Certifications: UL Listed (E135369), CE
• Country of manufacture: United States (Assembled in U.S.A.)
• Includes: VGA cable (HD-15) and IEC power cord

Applications

Rackmount CRT monitors like the RMX-17CRT/TS were standard equipment in industrial control rooms, server rooms, broadcast facilities, military systems, and any installation where the display needed to live inside a standard 19-inch equipment rack alongside the computing hardware it served. ICS Advent — the brand of Industrial Computer Source — was a well-known supplier of rugged, rack-integrated display and computing solutions primarily through the 1990s and into the 2000s, serving government, defense, and industrial automation customers. The dark-tinted non-glare screen and Invar shadow mask were specifically specified for environments with high ambient light or where operators needed to view the screen for extended periods. The wide universal input range (100–240V) made these units suitable for both domestic and international deployments. Today, RMX-17CRT/TS units remain sought after for maintaining legacy rack systems that were built around CRT displays, particularly in industrial automation, defense support, and vintage computing contexts where LCD replacements are not a straightforward drop-in.
