ICL A540G3 16-Bit ISA Video Card PBN 80160521 Assy 88030540 ICL 1991

(No reviews yet) Write a Review
SKU:
43848
MPN:
A540G3
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

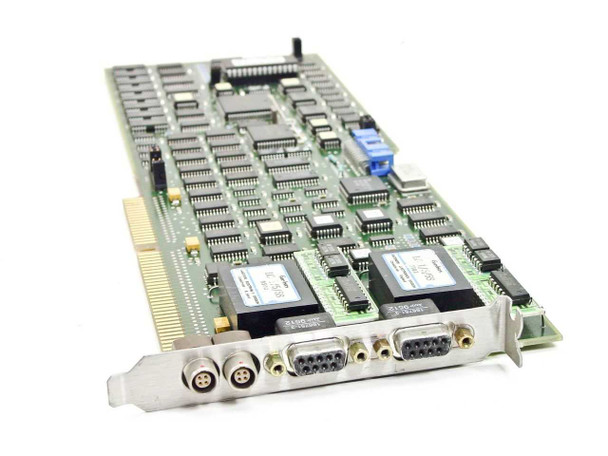

  • ICL A540G3 16-Bit ISA Video Card PBN 80160521 – angled front view showing ISA edge connector, bracket ports including DIN and DB connectors
  • ICL A540G3 16-Bit ISA Video Card – PCB reverse side showing solder points and green board traces
  • ICL A540G3 label close-up showing model A540G3 V1 ML, BLAS 80160521 42, PBN 80160521, Assy 88030540, ICL 1991 markings and MOD LEVEL chart
  • ICL A540G3 16-Bit ISA Video Card – top-side PCB overview showing memory ICs, logic chips, and blue jumper block
  • ICL A540G3 – close-up of bracket area showing Gardners LC 1/5/5S transformers, DB9 connectors, and component detail near bracket
  • ICL A540G3 16-Bit ISA Video Card – angled bracket-end view showing DIN connector, dual DB9 ports, and ISA card edge
$30.00
Was: $60.00
Current Stock: 2

Sold Out

Description

ICL A540G3 16-Bit ISA Video Card PBN 80160521 Assy 88030540 ICL 1991

16-bit ISA video card manufactured by ICL in 1991. Provides graphics output for legacy ICL desktop systems using the ISA bus architecture.

Specifications & What's Included

  • Interface: ISA 16-Bit
  • Form Factor: Full-Length ISA Card
  • Model: A540G3
  • Part Number: 80160521
  • Assembly Number: 88030540
  • Hardware Revision: V1 ML
  • Manufacture Year: 1991
  • Country of Origin: England
  • Card only; no accessories included

Applications

This card was used in ICL legacy 16-bit ISA bus desktop PC systems from the early 1990s era. It functions as a display adapter for systems requiring ISA-based video output. Compatible with ICL desktop platforms that support full-length 16-bit ISA expansion cards. Suitable for system restoration, archival computing, or collection purposes.

Condition: Used
This ICL A540G3 16-Bit ISA Video Card (PBN 80160521) has been inspected and appears to be in good used condition. The PCB is clean with no visible cracks, burnt components, or damaged traces. The bracket and port connectors — including the DIN and dual DB9 outputs — show light oxidation consistent with age and storage but no significant corrosion or damage. Component markings are legible and the board appears complete. This card was not bench-tested at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ICL
Model:
A540G3
MPN:
80160521
Secondary Model:
88030540
Type:
16-Bit ISA Video Card
SKU:
43848
Interface:
ISA (16-Bit)
Bus Type:
ISA 16-Bit
Form Factor:
Full-Length ISA Card
Hardware Revision:
V1 ML
Assembly Number:
88030540
BLAS Number:
80160521 42
Manufacture Year:
1991
Condition:
Used – Inspected
Seller Notes:
Card only; no accessories included.
Country/Region of Manufacture:
England
Compatible With:
ICL legacy 16-bit ISA bus desktop PC systems
Condition Notes:
This ICL A540G3 16-Bit ISA Video Card (PBN 80160521) has been inspected and appears to be in good used condition. The PCB is clean with no visible cracks, burnt components, or damaged traces.
View AllClose

Related Products

Related Products

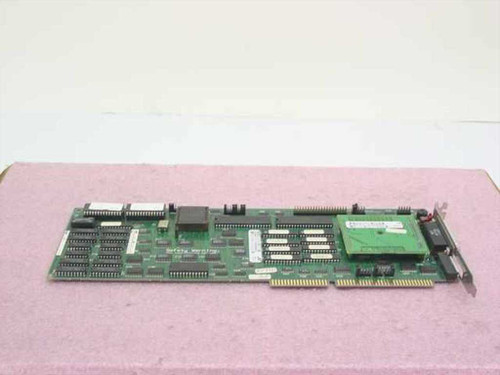

ICL NS/1235/1 AC40017.2 16-bit ISA BABT modem card – top view showing full PCB, V.28 adapter module, and bracket with DB25 and BT connectors ICL NS/1235/1 AC40017.2 ISA modem card – side profile view showing full card length and ISA edge connector
