Description
IBM xSeries 360 8686-1RX Rackmount Server 3x 36.4GB U160 FRU 06P5759 HDD
A 3U rack-mount server from IBM's eServer xSeries line, designed for enterprise data center deployment. This unit features Intel Xeon processor support and PCI-X bus architecture for mid-range server applications.
Specifications & What's Included
- Form Factor: 3U Rack Mount
- Processor: Intel Xeon (Prestonia/Gallatin socket)
- Storage: 3x 36.4GB Ultra160 SCSI HDDs (FRU 06P5759)

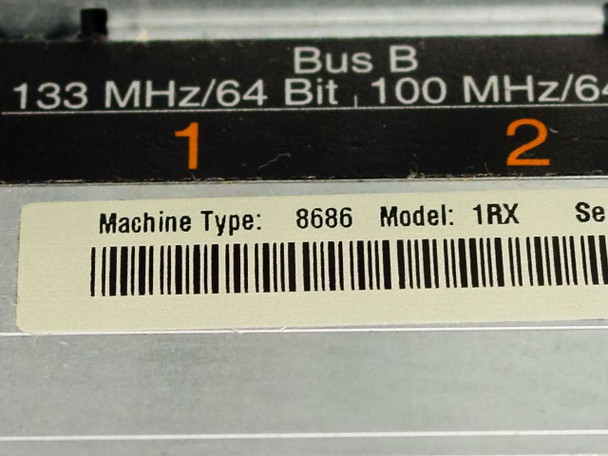

- Bus Architecture: PCI-X 133 MHz/64-bit and 100 MHz/64-bit slots
- Power: Redundant PSU, 100-120V / 200-240V AC, 50/60Hz
- Connectivity: Dual Gigabit LAN, VGA, USB, Serial, Parallel
- Optical Drive: CD-ROM included
Applications
The xSeries 360 served as a general-purpose server for small-to-medium business environments and departmental deployments. Common uses included file serving, print services, database hosting, and application servers running Linux or Windows Server. The U160 SCSI storage supported reliable, hot-swappable drive configurations. This model is compatible with IBM eServer xSeries 360 (8686) configurations and standard U160 SCSI hot-swap backplanes.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

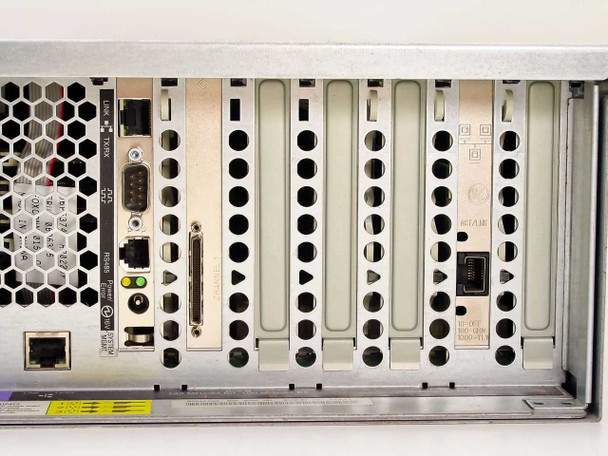

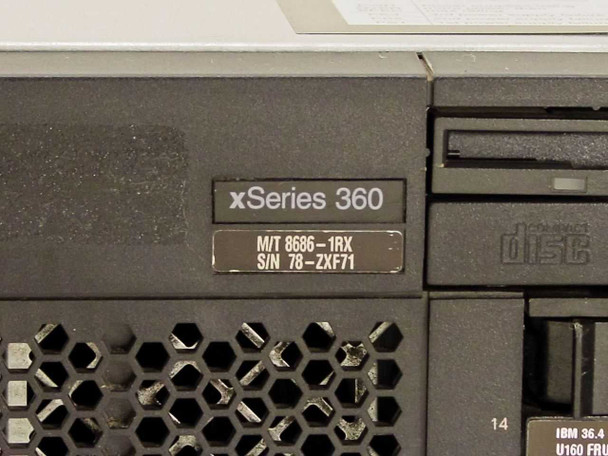

This IBM xSeries 360 8686-1RX rackmount server is being sold AS-IS for parts or repair. It came from a local organization where it had been in active use, and is being offered due to its age rather than any single known failure. The unit has not been powered or tested at our facility and no functionality is guaranteed. The chassis shows cosmetic wear consistent with data-center use — scuffing on the top cover, some surface marks on the bezel and side panels. Three 36.4GB U160 SCSI hard drives (FRU 06P5759) are installed in bays 12–14. The interior shows memory DIMMs and expansion cards present; the drive backplane, PCI-X slots, and rear I/O panel appear physically intact. A system service information sheet is affixed to the top cover. Please view our complete photo set carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
xSeries 360 |
Secondary Model: |
8686-1RX |
MPN: |
8686-1RX |
SKU: |
38959 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes 3x 36.4GB U160 SCSI hard drives (FRU 06P5759). Sold AS-IS. |
Form Factor: |
Rack Mount (3U) |
Country of Manufacture: |
United States |
Power Requirements: |
100-120V / 200-240V AC, 50/60Hz (redundant PSU) |
Storage: |
3x 36.4GB U160 SCSI (FRU 06P5759) |
Hard Drive FRU: |
06P5759 |
Drive Interface: |
Ultra160 SCSI (U160) |
Bus Architecture: |
PCI-X 133 MHz/64-bit, 100 MHz/64-bit |
Processor Socket: |
Intel Xeon (Prestonia/Gallatin) — socket count per config |
Expansion Slots: |
Multiple PCI-X slots visible on rear panel |
Rear Ports: |
VGA, USB x2, PS/2 x2, Serial (DB-9), Parallel, RJ-45 LAN |
Front Ports: |

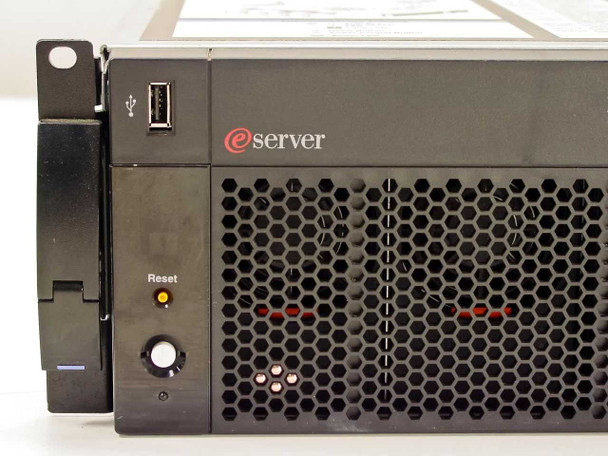

USB x1 (front bezel), floppy drive, CD-ROM/optical |
Compatible With 1: |
IBM eServer xSeries 360 (8686) |
Compatible With 2: |
IBM U160 SCSI hot-swap drive backplane |
Series: |
IBM eServer xSeries |
Condition Notes: |
IBM xSeries 360 8686-1RX server sold AS-IS for parts or repair. Not tested; no functionality guaranteed. Includes 3x 36.4GB U160 SCSI HDDs (FRU 06P5759). Cosmetic wear present. Please contact us with questions. |
