Description
IBM 4208 Dot Matrix Printhead XL24 Proprinter 87X9362 F27C19T Dual Ribbon Cable

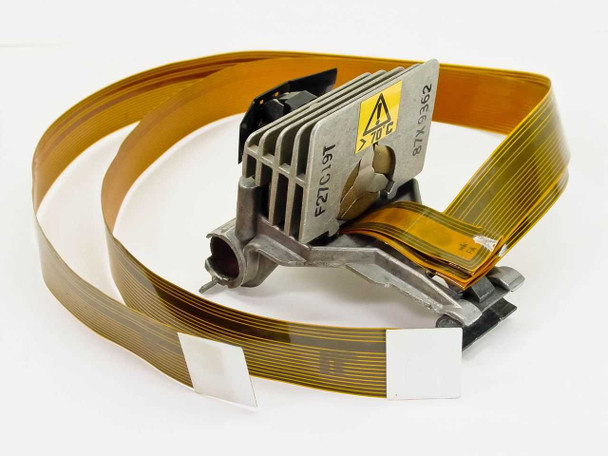

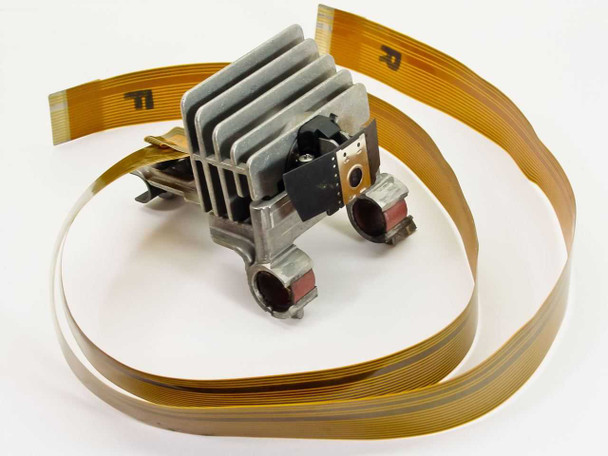

This is a genuine IBM 4208 replacement dot matrix printhead designed for the IBM Proprinter XL24 series. The 4208 printhead is the core printing mechanism responsible for striking the ribbon to produce characters on paper. It mounts on the printer carriage and connects via the included flat ribbon cables, which carry signals from the printer's control board to the print pin solenoids. The unit carries IBM part number 87X9362 (also marked F27C19T on the head assembly) and includes both original flat ribbon cables.
Specifications & What's Included
- Manufacturer: IBM
- Compatible Printer: IBM Proprinter XL24 (Model 4208)
- IBM Part Number: 87X9362

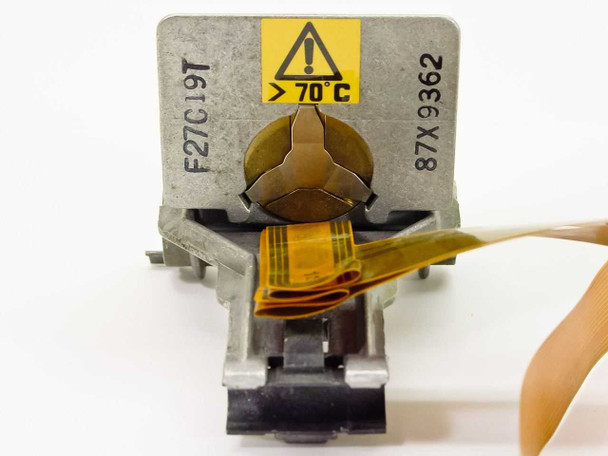

- Assembly Mark: F27C19T
- Print Technology: Dot Matrix (impact)
- Includes: Dual flat ribbon cables (original IBM cables, intact)
- Construction: Cast metal carriage body with integral heat-dissipating fin structure
- Thermal Warning: Surface temperature may exceed 70°C during operation (label present on unit)

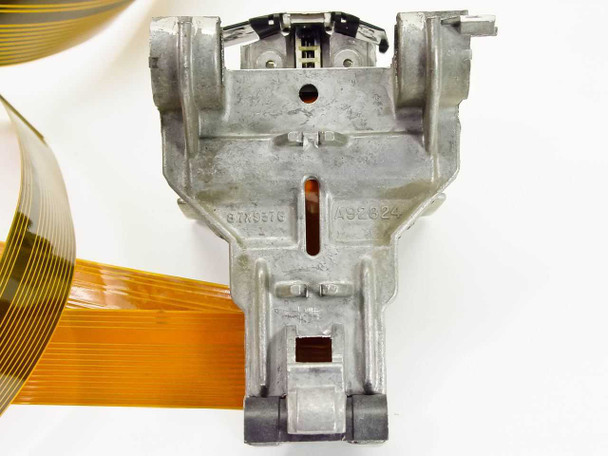

- Additional Stamped Markings: A92824 (underside of carriage)
Applications
The IBM Proprinter XL24 (Model 4208) is a 24-pin dot matrix printer introduced by IBM in the late 1980s as part of the Proprinter family, which was IBM's line of impact printers for use with PS/2 and PC-compatible systems. The XL24 offered higher-resolution 24-pin output compared to earlier 9-pin Proprinter models, making it suitable for both draft and near-letter-quality (NLQ) printing. Dot matrix printers like the XL24 remain in use today in industrial and point-of-sale environments where multi-part (carbonless) forms printing is required — a task that laser and inkjet printers cannot perform. Printheads are a wear item on dot matrix printers and are one of the most commonly needed replacement parts, making a good used 4208 printhead a practical and cost-effective service part for organizations still running Proprinter XL24 hardware.
This IBM 4208 Dot Matrix Printhead for the XL24 Proprinter has been inspected and is in good used condition. It was pulled from a working environment where it was previously in active use. The printhead body and carriage show normal wear consistent with service use; the dual flat ribbon cables are intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
4208 |
MPN: |
87X9362 |
Secondary Model: |
F27C19T |
Type: |
Dot Matrix Printhead |
Compatible With: |
IBM Proprinter XL24 |
Includes: |
Dual flat ribbon cables |
Interface: |
Flat ribbon cable |
Print Technology: |
Dot Matrix |
SKU: |
18634 |
Seller Notes: |
Includes dual flat ribbon cables. Printhead only — no carriage assembly. |
Country/Region of Manufacture: |
Japan |
Condition Notes: |
This IBM 4208 XL24 Proprinter dot matrix printhead has been inspected and is in good used condition. Pulled from a working environment where it was in active use. Dual ribbon cables included and intact. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
